Keysight B2961A/B2962A User’s Guide, Edition 3 3-5
Installation
Inspecting the Shipment

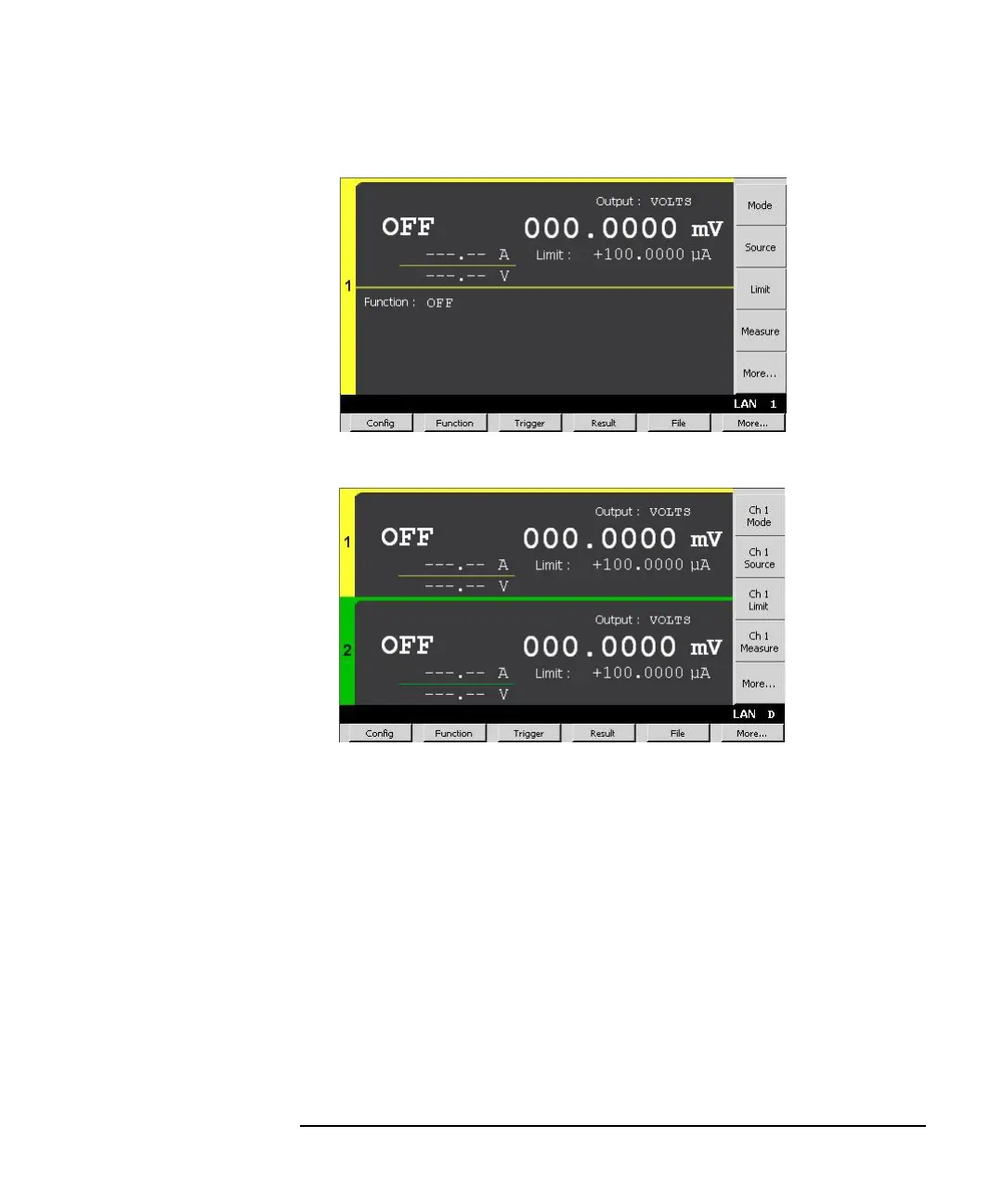

Figure 3-1 Display Example for 1-ch Model
Figure 3-2 Display Example for 2-ch Model
Checking for Errors
Errors can be checked as described below.
1. Press the More > System > Error > Log function keys. This opens the Error Log
dialog box.
2. Check the errors displayed on the dialog box.
If no error is detected, “0, No Error” is displayed.
3. Press the OK softkey to close the dialog box.
