Keysight B2961A/B2962A User’s Guide, Edition 3 3-39
Installation
Using Digital I/O
Accessory for Digital I/O Connector
The following accessory is available for the Digital I/O connector.
• Keysight N1294A-031 GPIO-BNC Trigger Adapter
This adapter is used to change the Digital I/O connector to the trigger input/
output BNC connectors. The BNC connectors are internally connected to the
DIO pins 9 and 10.
This adapter can be connected directly to the Digital I/O connector.

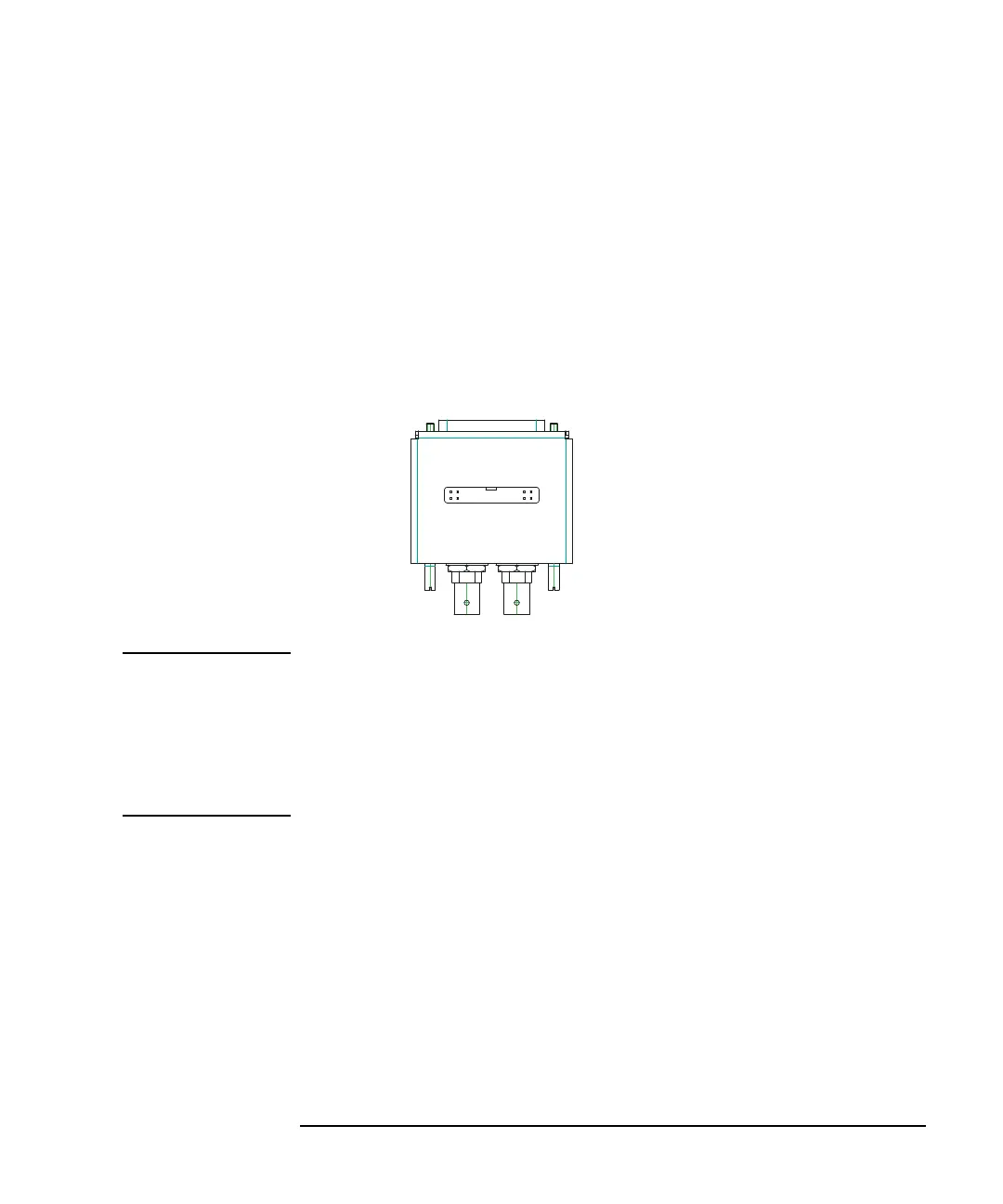

Figure 3-16 N1294A-031 GPIO-BNC Trigger Adapter
NOTE Interlock terminals
If the N1294A-031 adapter is connected to the Digital I/O connector, the Interlock
terminals are opened. Then the B2961A/B2962A output voltage is limited to 42 V.
To use the interlock function, see “Installing the Interlock Circuit” on page 3-27 and
extend the Interlock terminals. They can be extended from the adapter internal board
through the opening of the adapter top cover.
N1294A Opt 031
GPIO
-
BNC Trigger Adapter
DIO 10 DIO 9
