Keysight B2961A/B2962A User’s Guide, Edition 3 2-7
Introduction
Rear View
Rear View

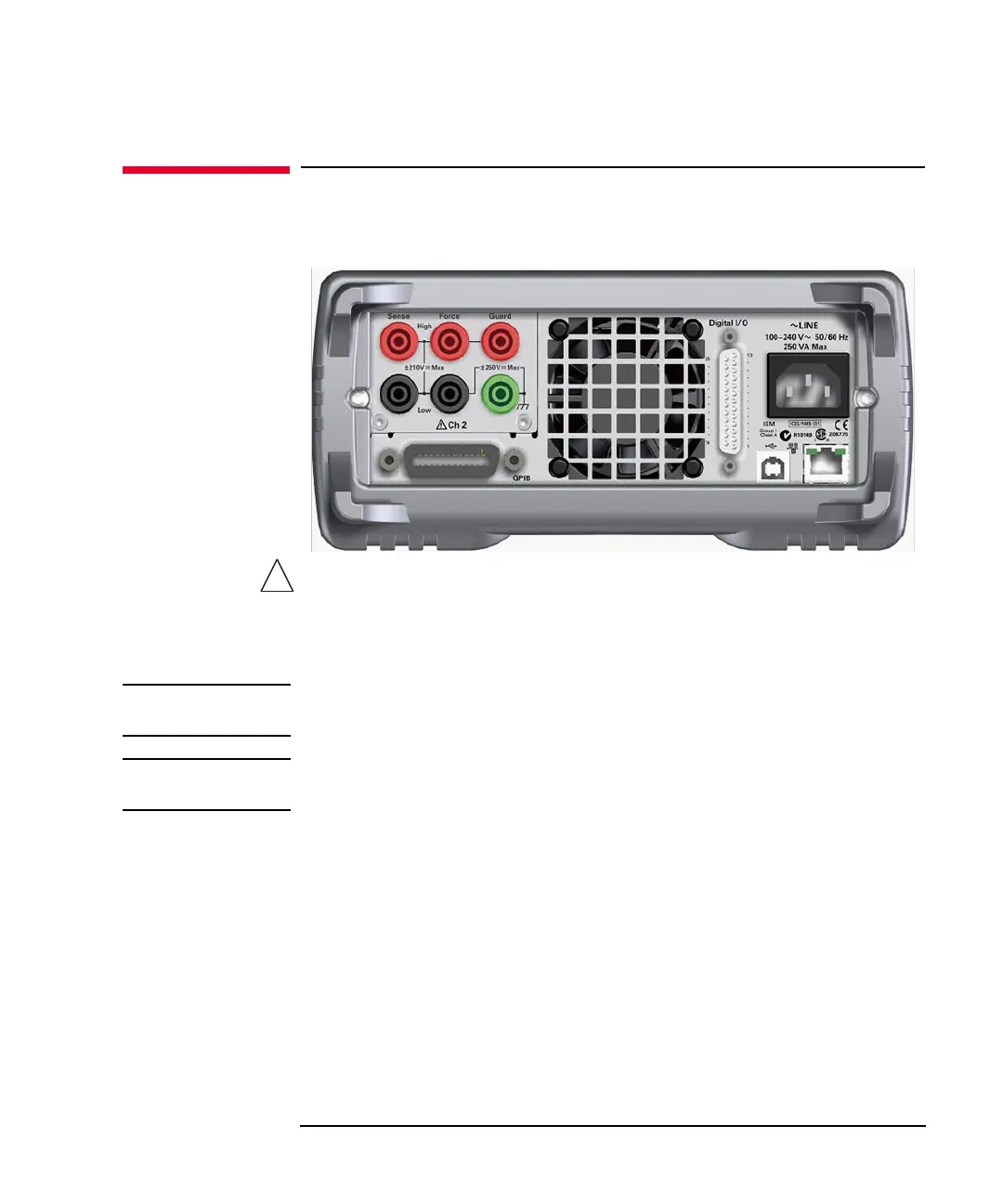

This section describes the rear view of the Keysight B2961A/B2962A.
• Channel 2 source/measure terminals
Only on 2-channel models. Terminals for channel 2. High Force, Low Force,
High Sense, Low Sense, Guard, and chassis ground. For details, see
“Connecting a DUT” on page 3-14
CAUTION Never connect the Guard terminal to any output, including circuit common, chassis
ground, or any other guard terminal. Doing so will damage the B2961A/B2962A.
CAUTION Do not apply current to the chassis ground terminal. Doing so will damage the
B2961A/B2962A.
• GPIB interface connector
Use a Keysight 82357A/B USB/GPIB interface or Keysight 10833A/B/C/D
GPIB cable to connect to an external computer or equipment.
• Cooling fan
• AC input connector
AC power cord is connected to this receptacle.
• LAN interface connector
Connects to 10/100 Base-T interface. Left LED indicates activity. Right LED
indicates link integrity.
