1-2 Keysight B2961A/B2962A User’s Guide, Edition 3
Getting Started
This chapter describes basic operations for Keysight B2961A/B2962A. Before
learning the details of B2961A/B2962A, let us briefly cover the use of the
B2961A/B2962A. The operations require only B2961A/B2962A and the power
cord. To get started with the operations, open the measurement terminals.
This chapter consists of the following sections.
• “Applying DC Output”
• “Applying Waveform Output”
• “Performing Spot Measurement”
• “Performing Sweep Measurement”
• “Operation Tips”
• “Operation Summary”
NOTE Turning B2961A/B2962A on
1. Connect the power cord from the AC input connector (receptacle) on
B2961A/B2962A’s rear panel to an AC power outlet at your site.
2. Press the standby switch on the front panel. When the power is on, the LED
below the switch is turned green.
B2961A/B2962A boots up and performs a self-test. After B2961A/B2962A boots
normally, the front panel LCD displays the following view. It will be the Single
view for the 1-channel model or the Dual view for the 2-channel model.
NOTE Connecting your DUT
If you want to connect your device under test, see “Connecting a DUT” on page
3-14.

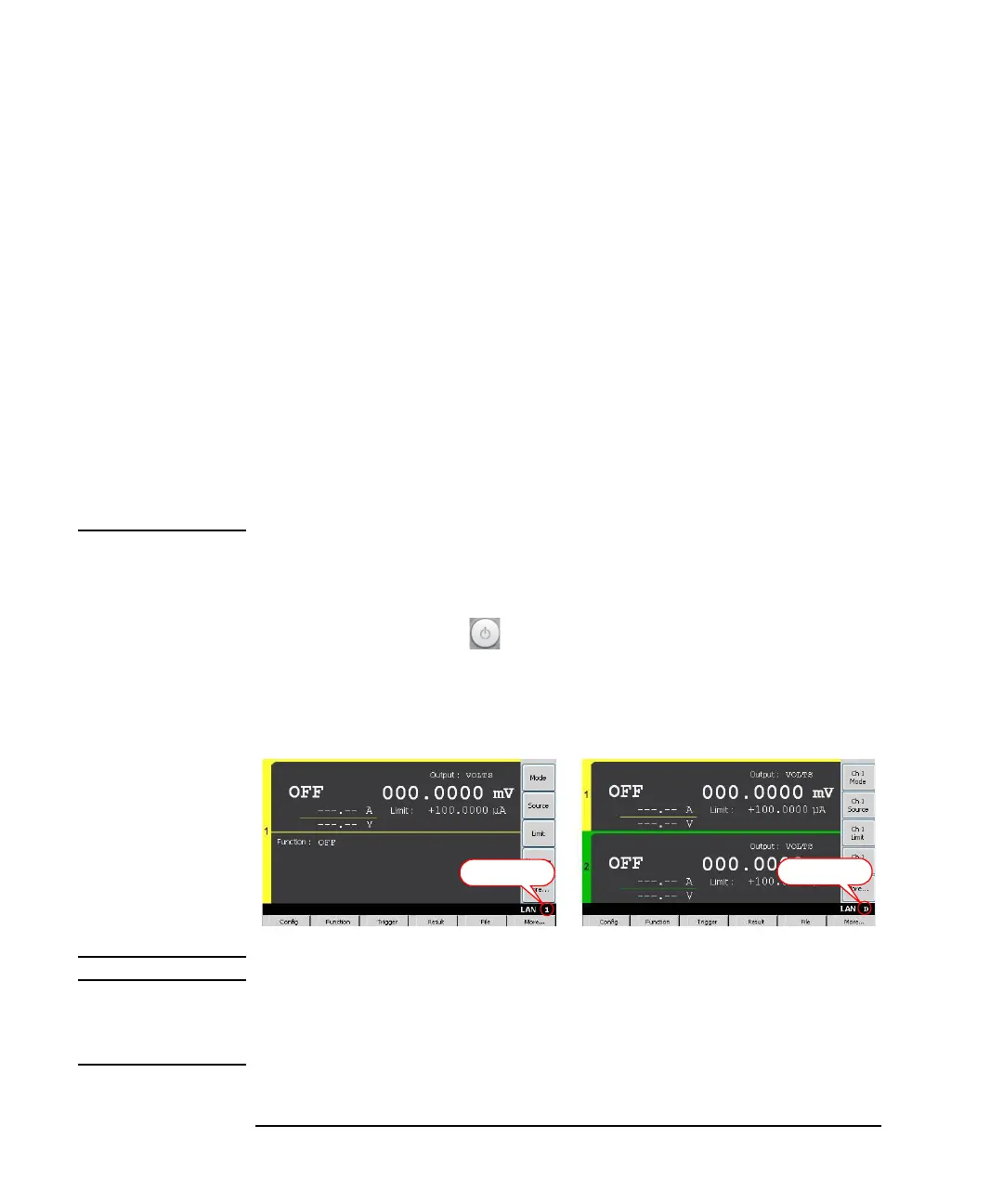

1: Single view
D: Dual view
