Getting Started
Performing Sweep Measurement
4. Use the rotary knob, arrow keys, or numeric/alpha keys to set the Count (trigger
count) for both Source and Measure.
This example sets Count to 11 for both Source and Measure.

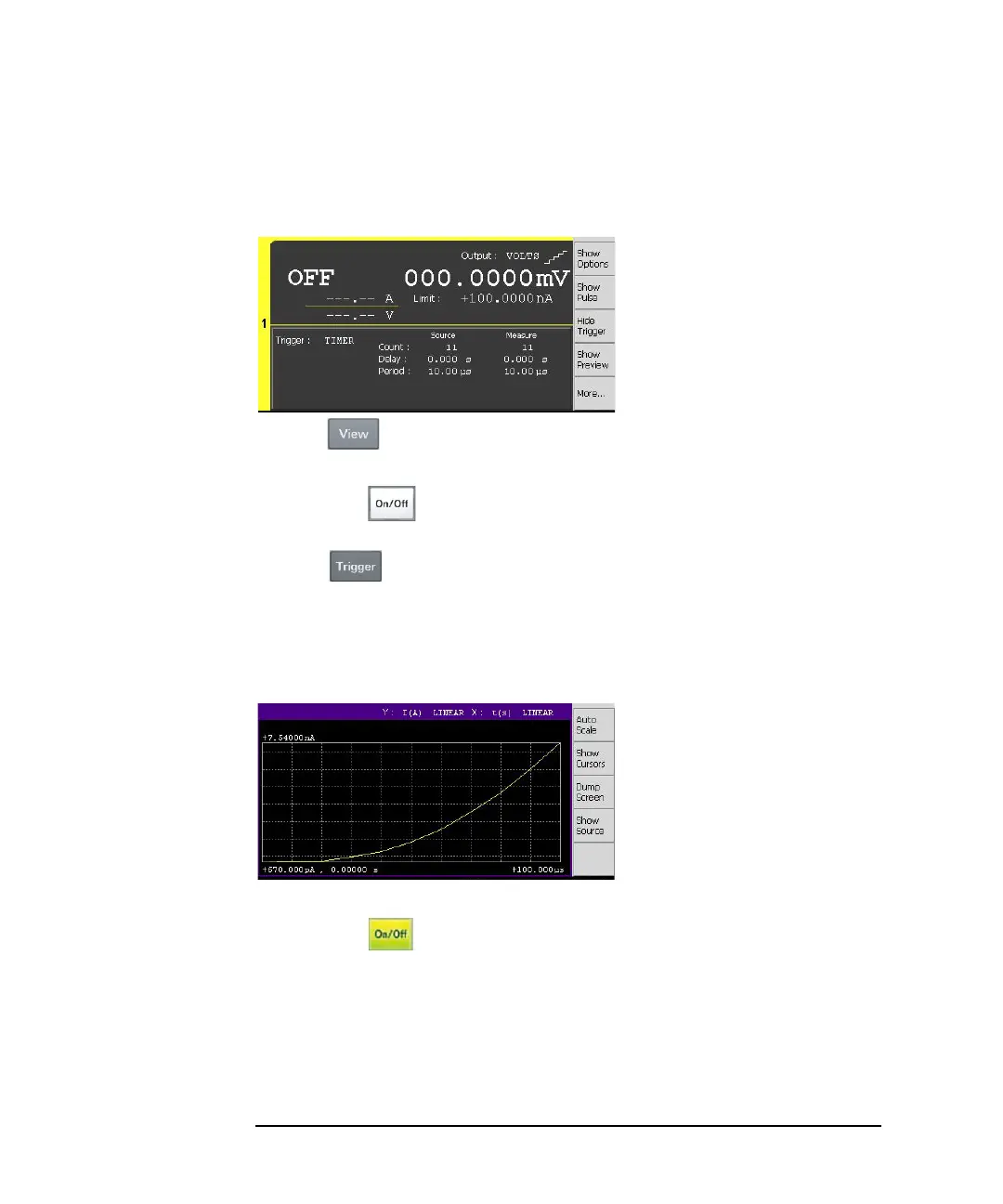

Step 5. Press the key to display the Graph view.
Step 6. Enabling the channel
Press the Ch 1 switch to enable channel 1. This turns the switch green. The
channel 1 changes status to CV (Constant Voltage) and starts DC output.
Step 7. Press the key to start a single (one shot) measurement. Sweep measurement
is performed once. And the measurement results will be displayed on the I-t graph.
Step 8. Press
Auto Scale to fit the trace in the graph scale.
The following example shows the measurement results for a 10 M resistor
connected between the High Force and Low Force terminals of channel 1.
Step 9. Disabling the channel
Press the Ch 1 switch to disable channel 1. This turns off the switch light.
