106 Keysight InfiniiVision 2000 X-Series Oscilloscopes User's Guide
6 Digital Channels
Any digital channel with an active signal will be displayed. Any digital channels
without active signals will be turned off.
• To undo the effects of AutoScale, press the Undo AutoScale softkey before
pressing any other key.
This is useful if you have unintentionally pressed the [AutoScale] key or do not like
the settings AutoScale has selected. This will return the oscilloscope to its
previous settings. See also: "How AutoScale Works" on page 31.
To set the instrument to the factory-default configuration, press the [Default Setup]
key.
Interpreting the digital waveform display
The following figure shows a typical display with digital channels.

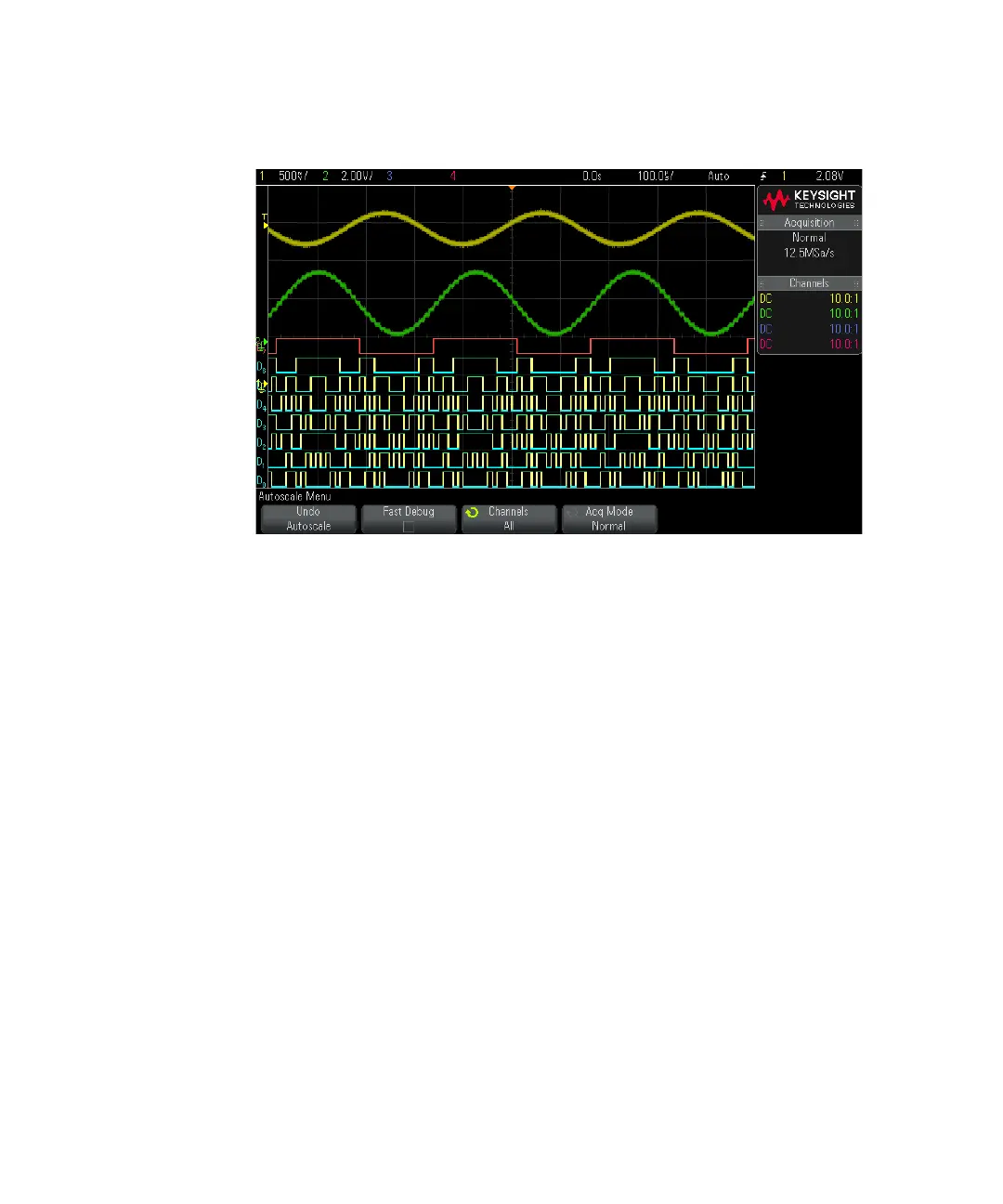

Figure 20 Example: AutoScale of digital channels (MSO models only)
