Web Interface 21

Keysight InfiniiVision 2000 X-Series Oscilloscopes User's Guide 303

Identification Function

The Identification web interface feature is useful when trying to locate a specific

instrument in a rack of equipment.

1 Access the oscilloscope's web interface (see "Accessing the Web Interface" on

page 296).

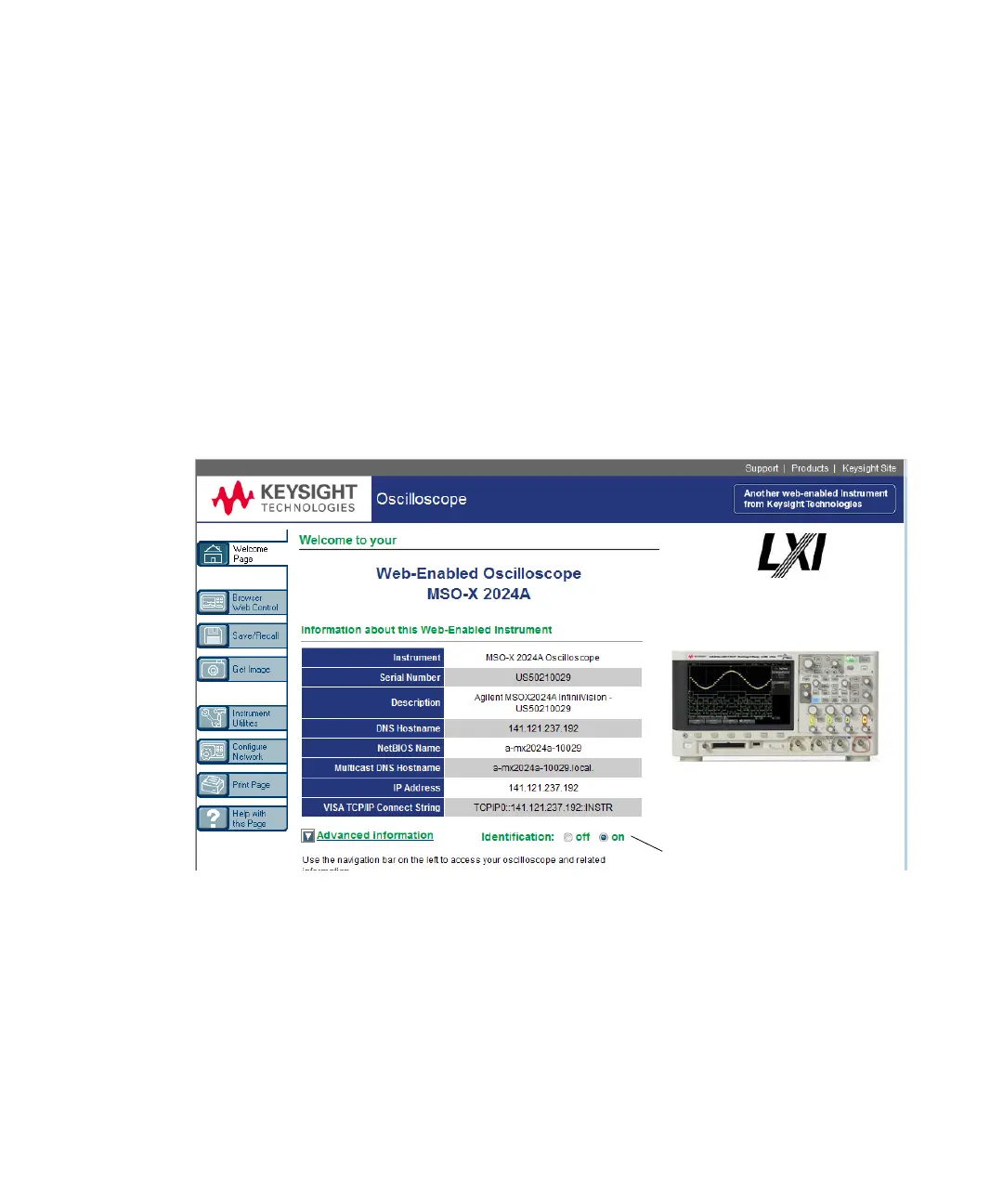

2 When the oscilloscope's web interface Welcome Page is displayed, select the

Identification on radio button.

An "Identify" message is displayed on the oscilloscope; you can either select

Identification off or press the OK softkey on the oscilloscope to continue.

Instrument Utilities

The Instrument Utilities page of the web interface lets you:

• View installed options.

• View firmware versions.

Identification option
