4 Math Waveforms
See Also • "To perform transforms or filters on an arithmetic operation" on page 71
• "Units for Math Waveforms" on page 71
Integrate
 dt (integrate) calculates the integral of the selected source. You can use
integrate to calculate the energy of a pulse in volt-seconds or measure the area
under a waveform.
 dt plots the integral of the source using the "Trapezoidal Rule". The equation is:
Where:
• I = integrated waveform.
• Δt = point-to-point time difference.

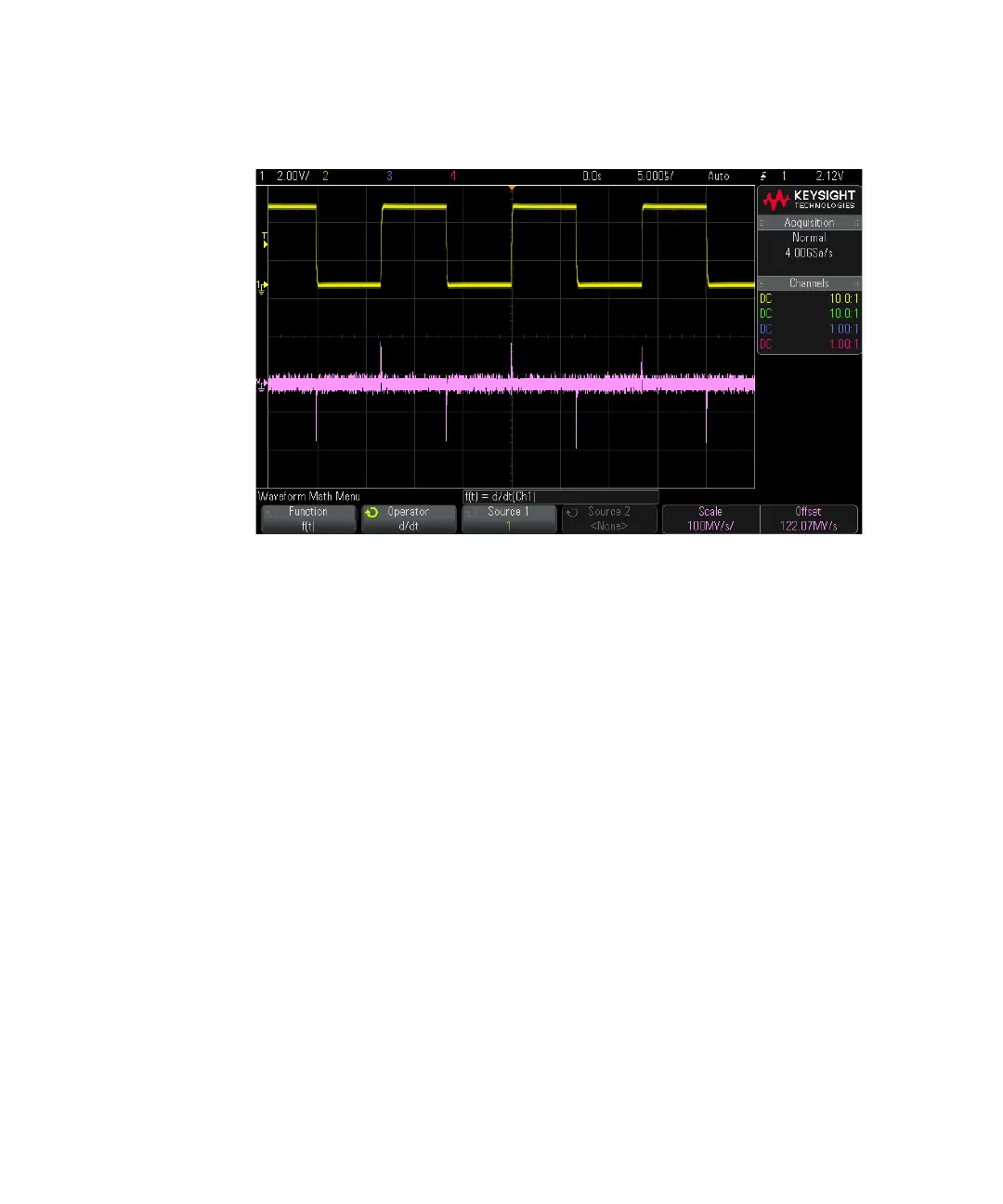

Figure 7 Example of Differentiate Function
I
n
= c
o
+Δt
∑
i=0
n
y
i
