126 Keysight InfiniiVision 2000 X-Series Oscilloscopes User's Guide

8 Display Settings

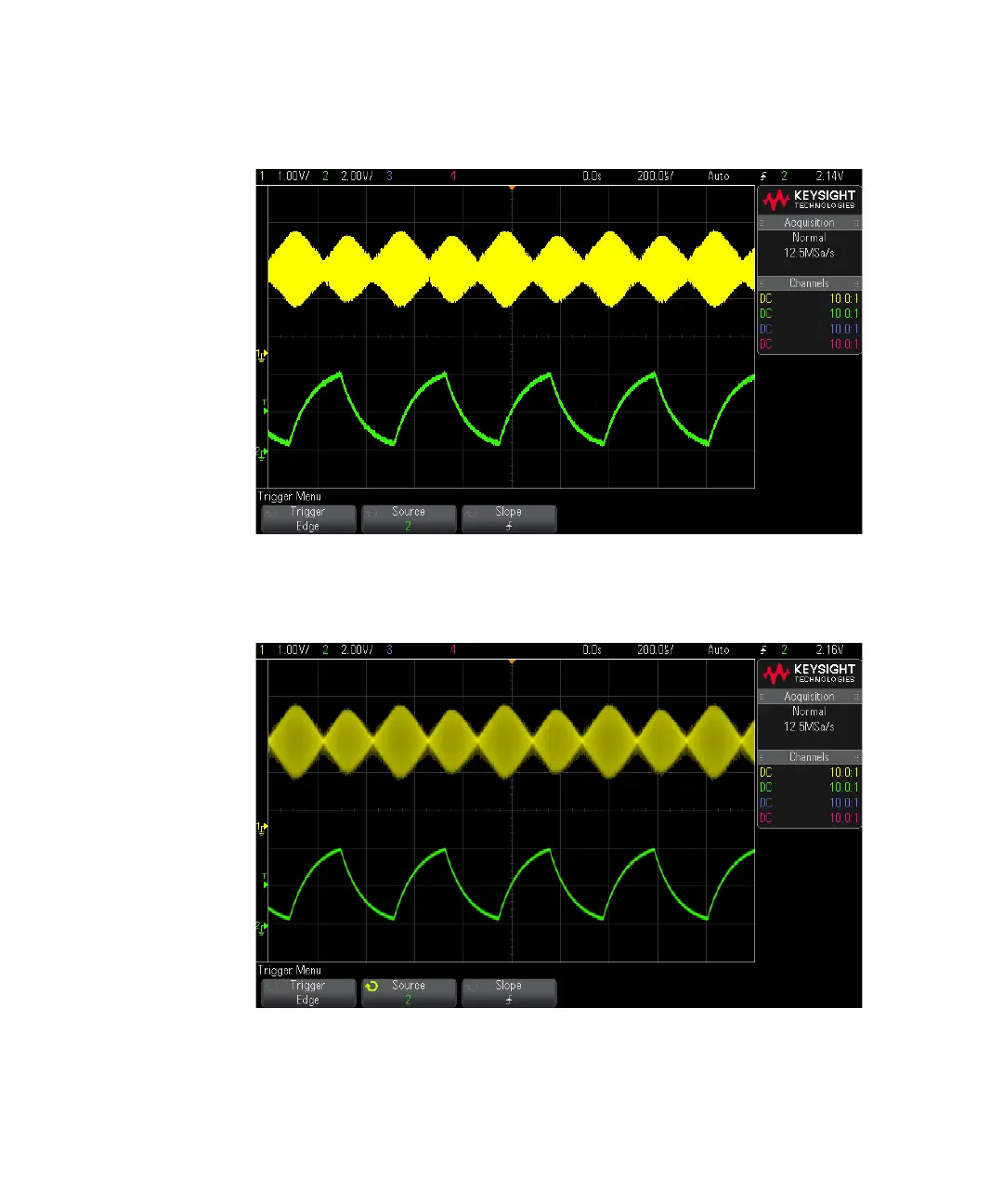

Figure 25 Amplitude Modulation Shown at 100% Intensity

Figure 26 Amplitude Modulation Shown at 40% Intensity
