5 Press the Level Select softkey to select High; then, turn the Trigger Level knob to
adjust the high level.
6 Press the Level Select softkey to select Low; then, turn the Trigger Level knob to
adjust the low level.
You can also push the Trigger Level knob to toggle between High and Low
selection.
7 Press the Qualifier softkey to toggle between "greater than" or "less than".
8 Press the Time softkey, and turn the Entry knob to select the time.
Nth Edge Burst Trigger

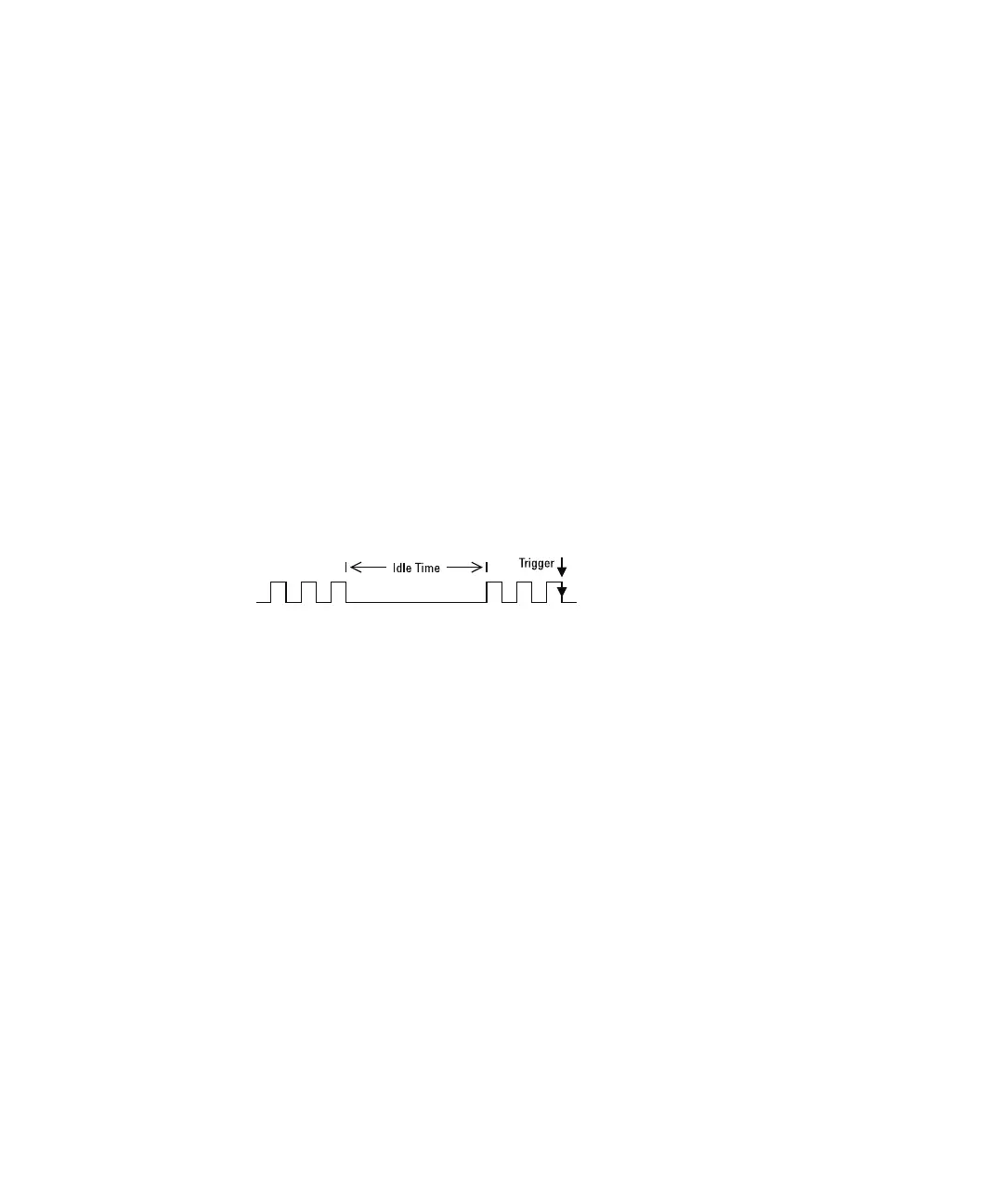

The Nth Edge Burst trigger lets you trigger on the Nth edge of a burst that occurs
after an idle time.
Nth Edge Burst trigger set up consists of selecting the source, the slope of the
edge, the idle time, and the number of the edge:
1 Press the [Trigger] key.
2 In the Trigger Menu, press the Trigger softkey; then, turn the Entry knob to
select Nth Edge Burst.
