88 Keysight InfiniiVision 2000 X-Series Oscilloscopes User's Guide
4 Math Waveforms
See Also • "Square" on page 87
Common Logarithm
The Common Logarithm (log) function (available with the PLUS license) performs
a transform of the input source. Where the transform is undefined for a particular
input, holes (zero values) appear in the function output.
See Also • "Natural Logarithm" on page 88
Natural Logarithm
The Natural Logarithm (ln) function (available with the PLUS license) performs a
transform of the input source. Where the transform is undefined for a particular
input, holes (zero values) appear in the function output.

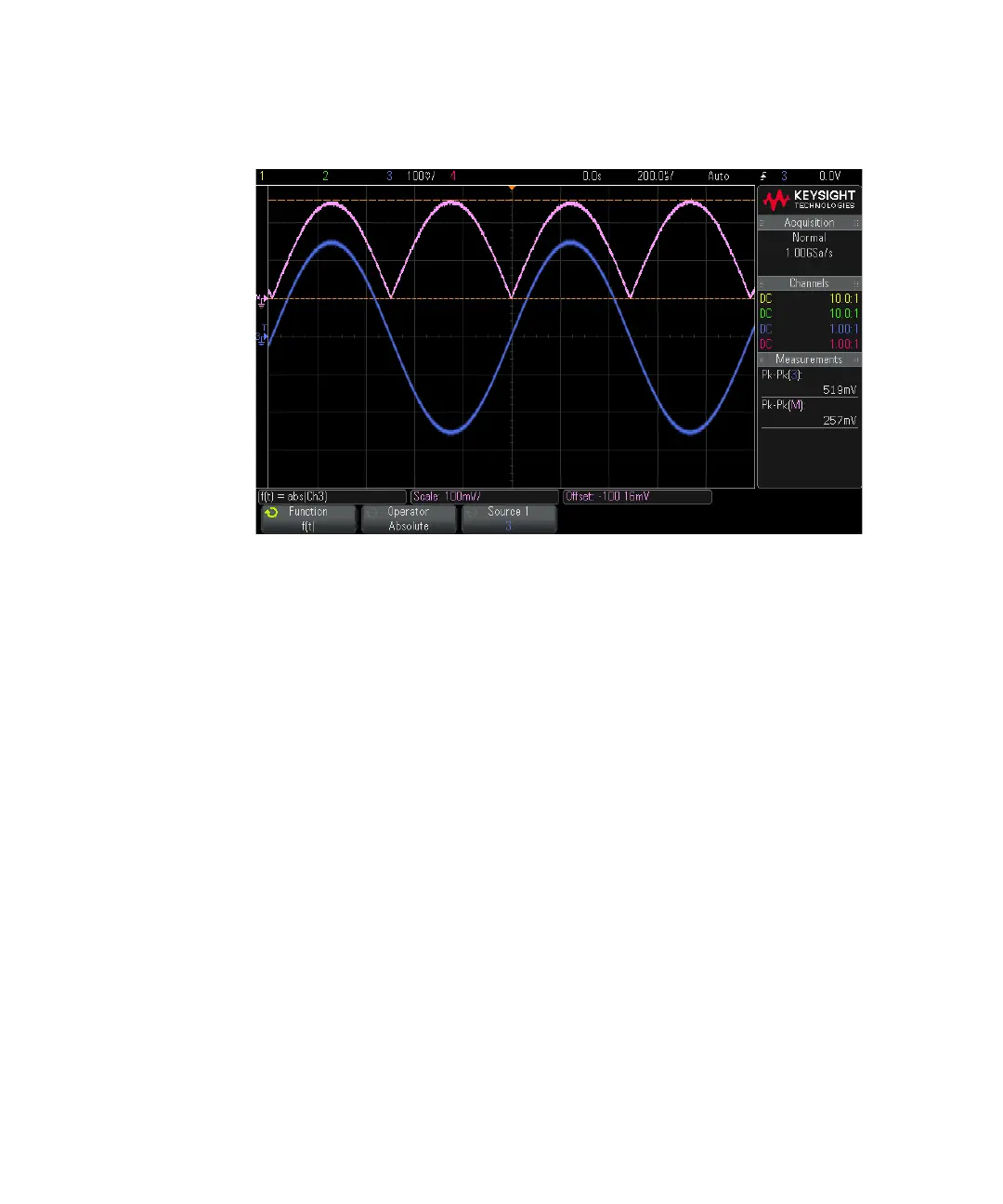

Figure 12 Example of Absolute Value
