Measurements 14
Keysight InfiniiVision 2000 X-Series Oscilloscopes User's Guide 223
This measurement is available for analog channels.
Rising Edge Count
The Rising Edge Count measurement is an edge count for the selected waveform
source.
This measurement is available for analog channels.
Falling Edges Count
The Falling Edges Count measurement is an edge count for the selected waveform
source.
This measurement is available for analog channels.
Measurement Thresholds
Setting measurement thresholds defines the vertical levels where measurements
will be taken on an analog channel or math waveform.
1 From the Measurement Menu, press the Settings softkey; then, press the
Thresholds softkey to set analog channel measurement thresholds.

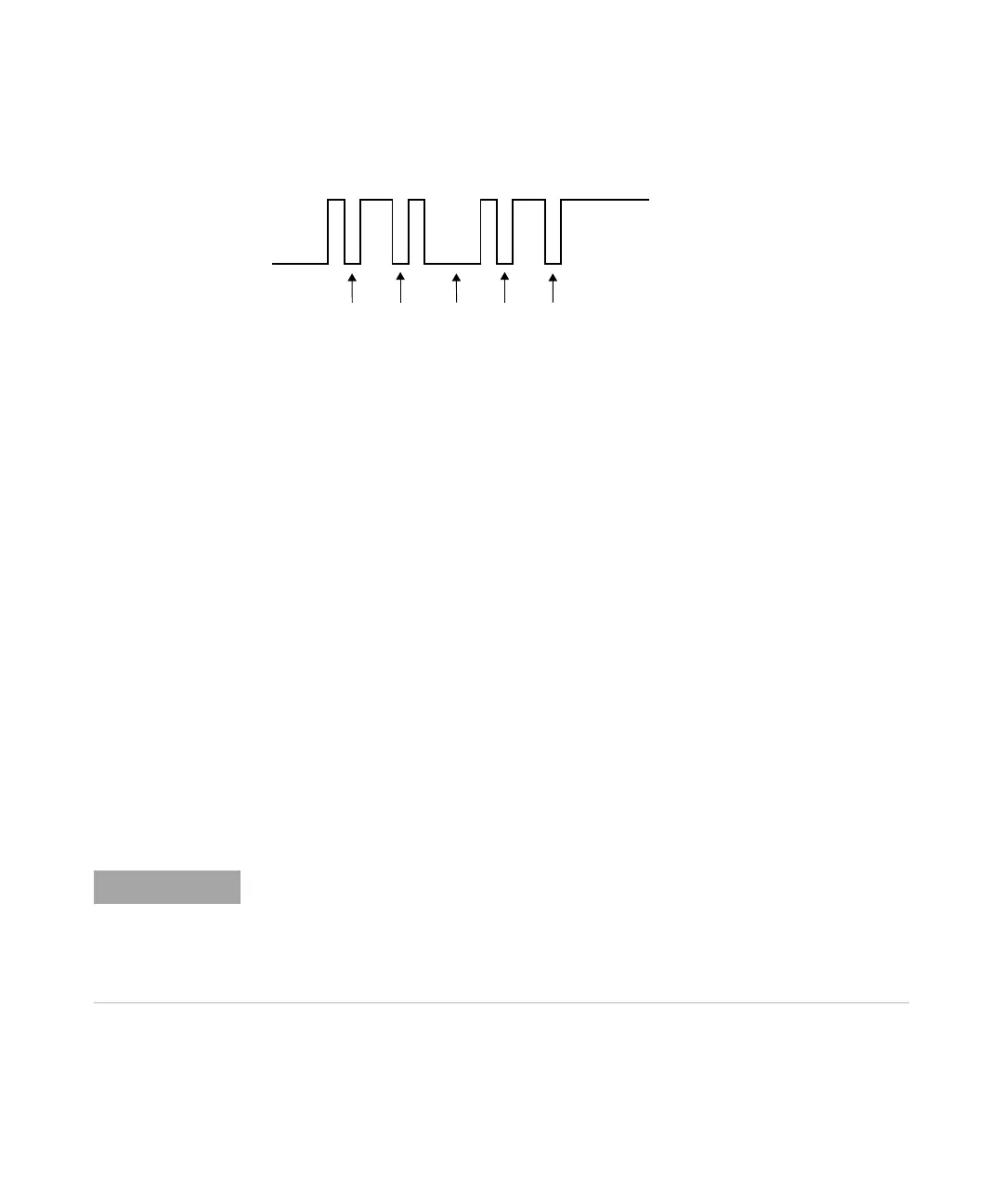

Negative pulse count
NOTE
Changing default thresholds may change measurement results
The default lower, middle, and upper threshold values are 10%, 50%, and 90% of the value
between Top and Base. Changing these threshold definitions from the default values may
change the returned measurement results for Average, Delay, Duty Cycle, Fall Time,
Frequency, Overshoot, Period, Phase, Preshoot, Rise Time, +Width, and -Width.
