4 Math Waveforms
Magnify
The magnify math function (available with the PLUS license) lets you display an
existing input source at different vertical settings to provide more vertical detail.
See Also • "Ax + B" on page 86
Measurement Trend
The measurement trend math function (available with the PLUS license) shows
measurement values for a waveform (based on measurement threshold settings)
as the waveform progresses across the screen. For every cycle, a measurement is
made, and the value is displayed on the screen for the cycle.

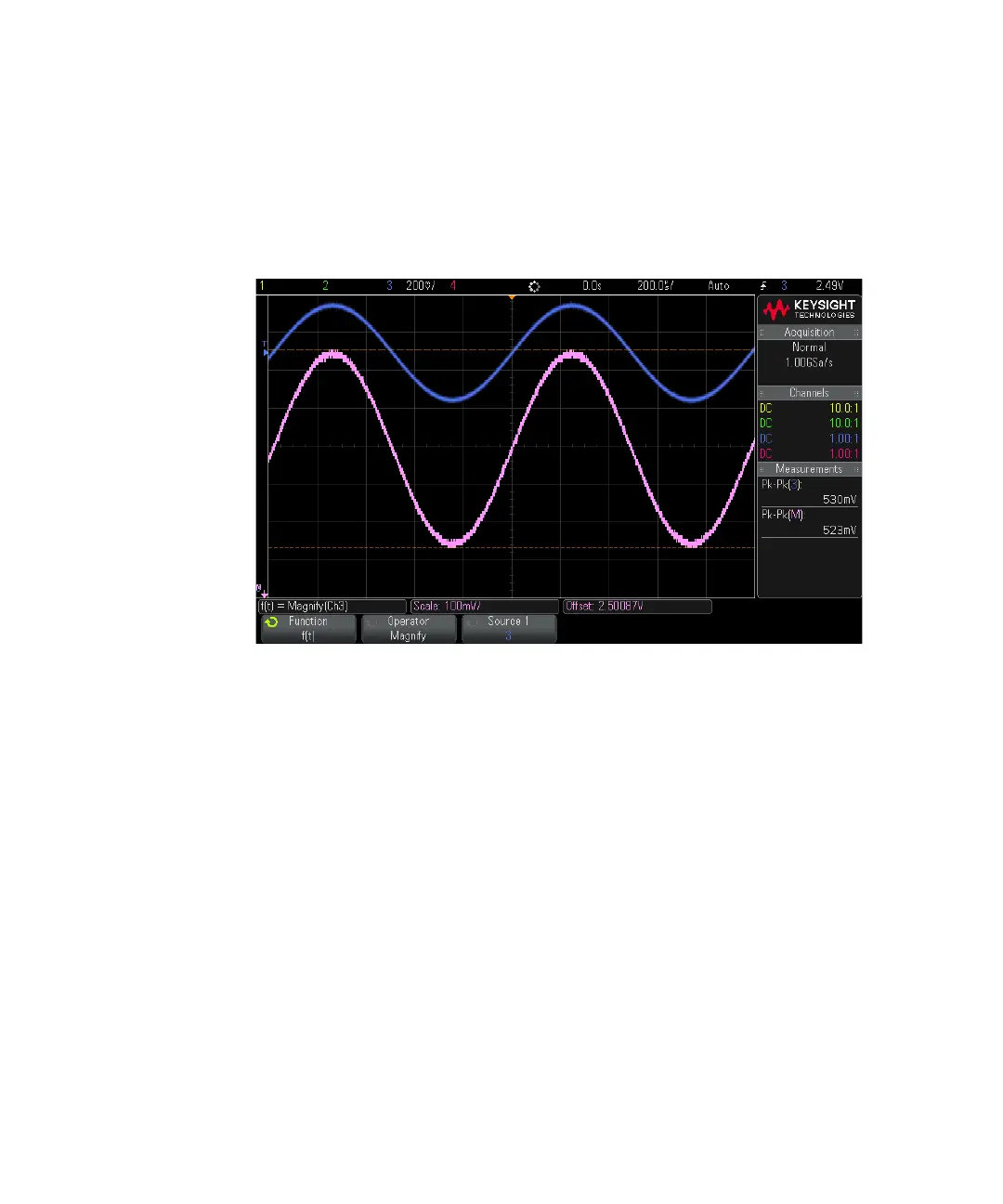

Figure 16 Example of Magnify
