152 Keysight InfiniiVision 2000 X-Series Oscilloscopes User's Guide

10 Triggers

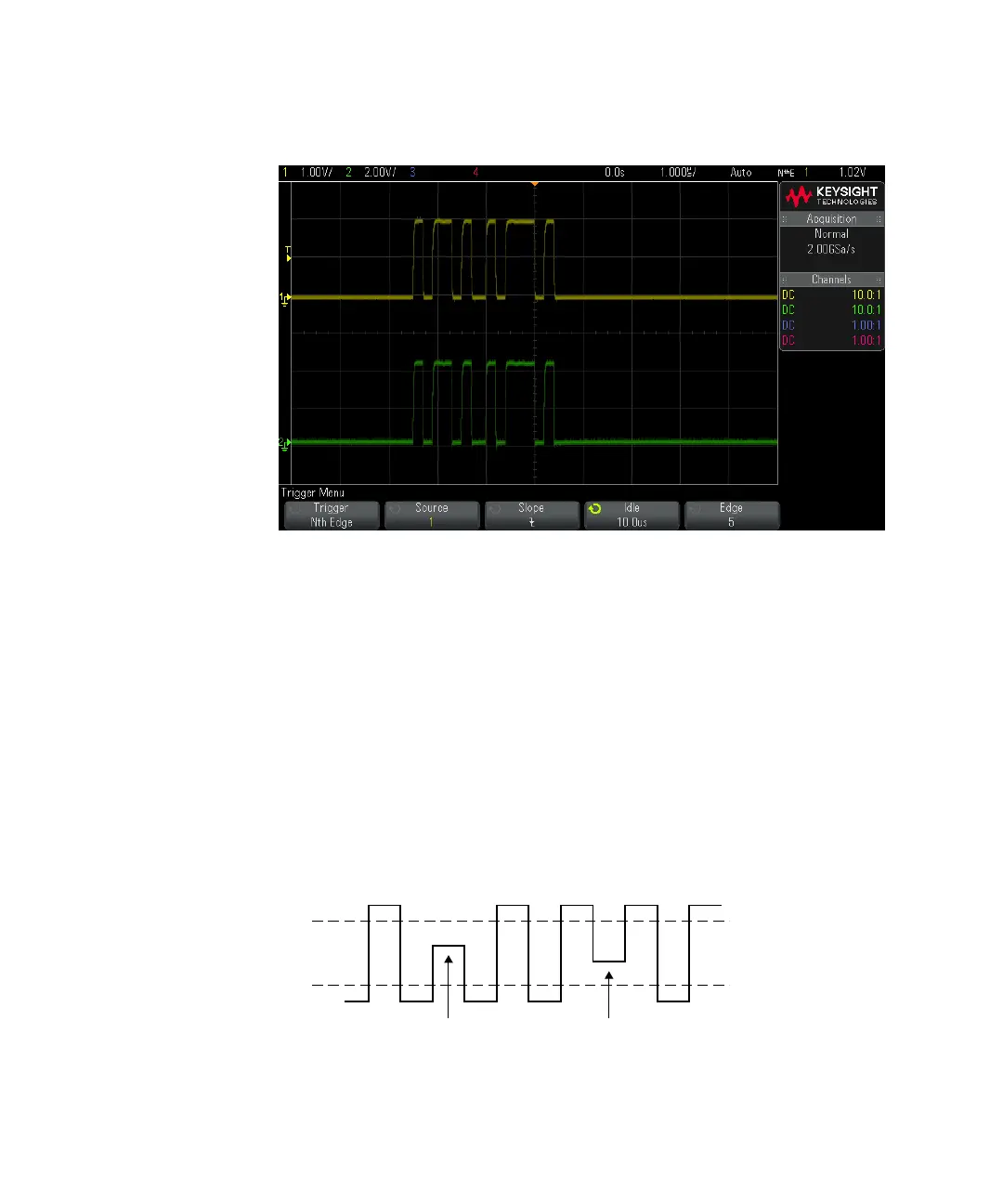

3 Press the Source softkey, and turn the Entry knob to select the input channel

source.

4 Press the Slope softkey to specify the slope of the edge.

5 Press the Idle softkey; then, turn the Entry knob to specify the idle time.

6 Press the Edge softkey; then, turn the Entry knob to which edge number to

trigger on.

Runt Trigger

The Runt trigger looks for pulses that cross one threshold but not another.

High level

Low level

Positive runt pulse Negative runt pulse
