Keysight Technologies InfiniiVision 2000 X Series User Manual

Triggers 10
Keysight InfiniiVision 2000 X-Series Oscilloscopes User's Guide 153

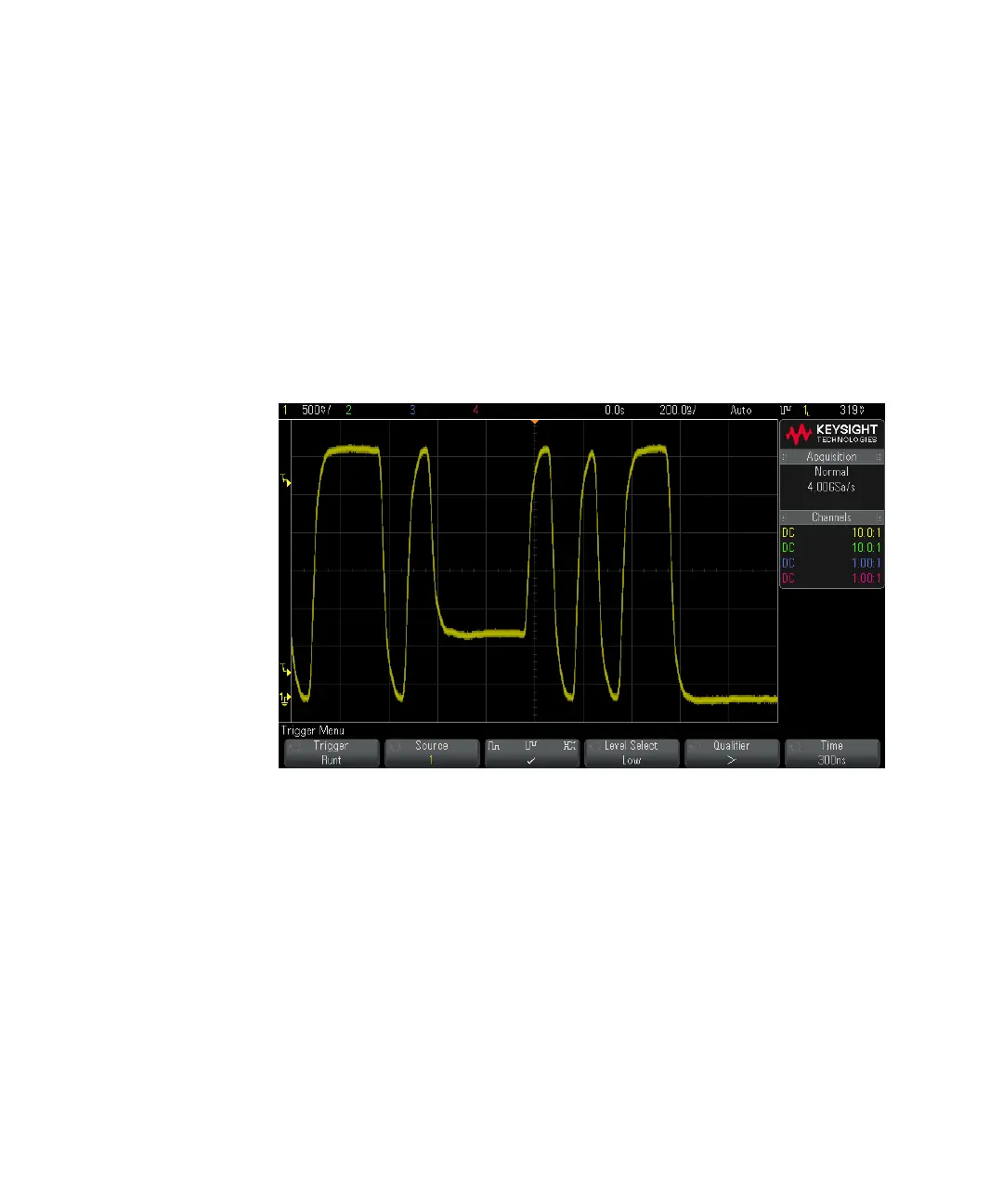

• A positive runt pulse crosses through a lower threshold but not an upper
threshold.
• A negative runt pulse crosses through an upper threshold but not a lower
threshold.
To trigger on runt pulses:
1 Press the [Trigger] key.
2 In the Trigger Menu, press the Trigger softkey; then, turn the Entry knob to
select Runt.
3 Press the Source softkey, and turn the Entry knob to select the input channel
source.
4 Press the Positive, Negative, or Either Runt Pulse softkey to toggle between pulse
types.
5 Press the Level Select softkey to select High; then, turn the Trigger Level knob to
adjust the high level.
6 Press the Level Select softkey to select Low; then, turn the Trigger Level knob to
adjust the low level.
You can also push the Trigger Level knob to toggle between High and Low
selection.
