Rise/Fall Time Trigger
The Rise/Fall Time trigger looks for a rising or falling transition from one level to
another level in greater than or less than a certain amount of time.
1 Press the [Trigger] key.
2 In the Trigger Menu, press the Trigger softkey; then, turn the Entry knob to
select Rise/Fall Time.
3 Press the Source softkey, and turn the Entry knob to select the input channel
source.
4 Press the Rising Edge or Falling Edge softkey to toggle between edge types.

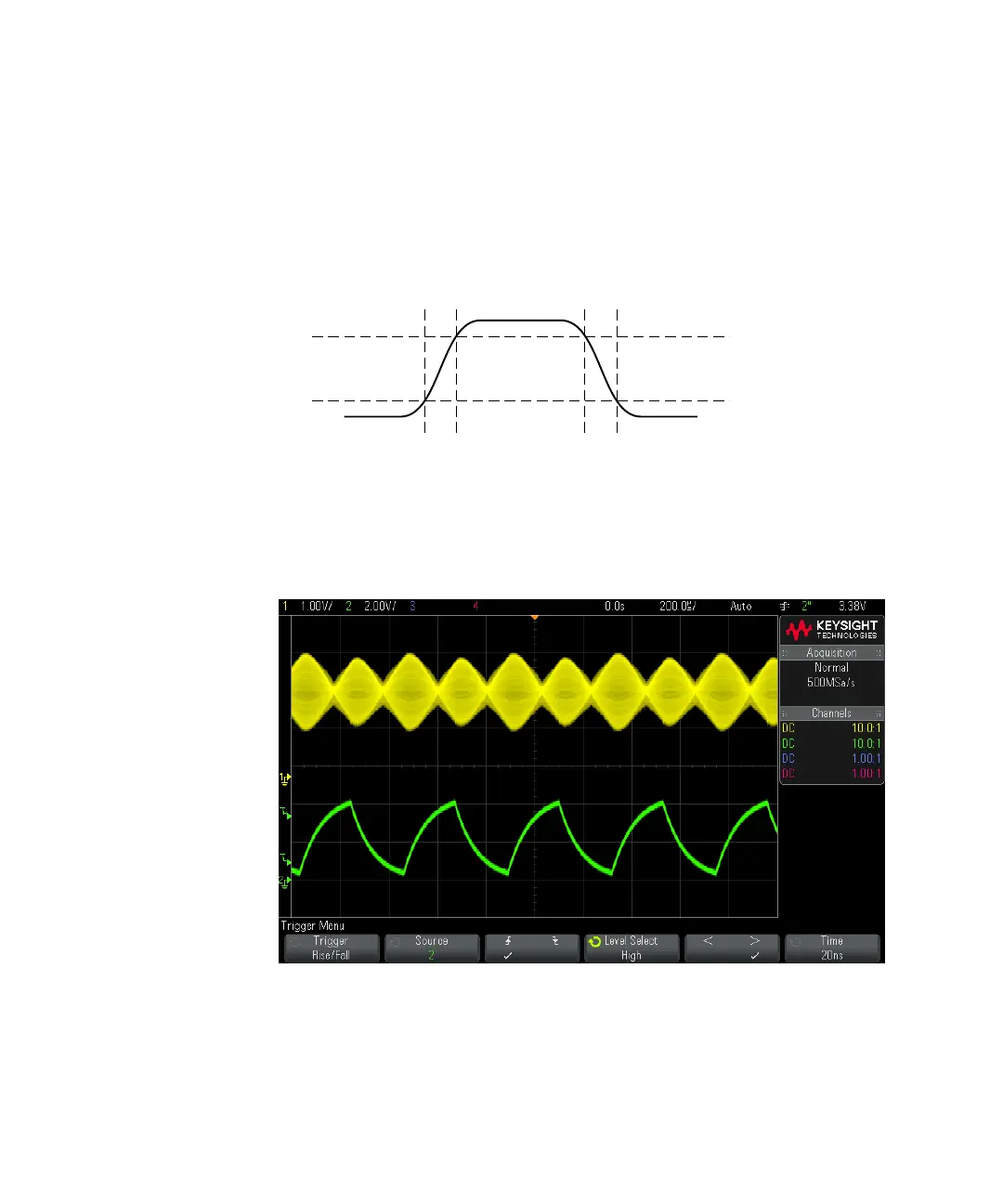

High level
Low level
Rising edge time Falling edge time
