As you press the Channel softkey (or rotate the Entry knob), the channel you
select is highlighted in the OR = line directly above the softkeys and in the
upper-right corner of the display next to the OR gate symbol.
Adjust the trigger level for the selected analog channel by turning the Trigger
Level knob. Press the [Digital] key and select Thresholds to set the threshold level
for digital channels. The value of the trigger level or digital threshold is
displayed in the upper-right corner of the display.

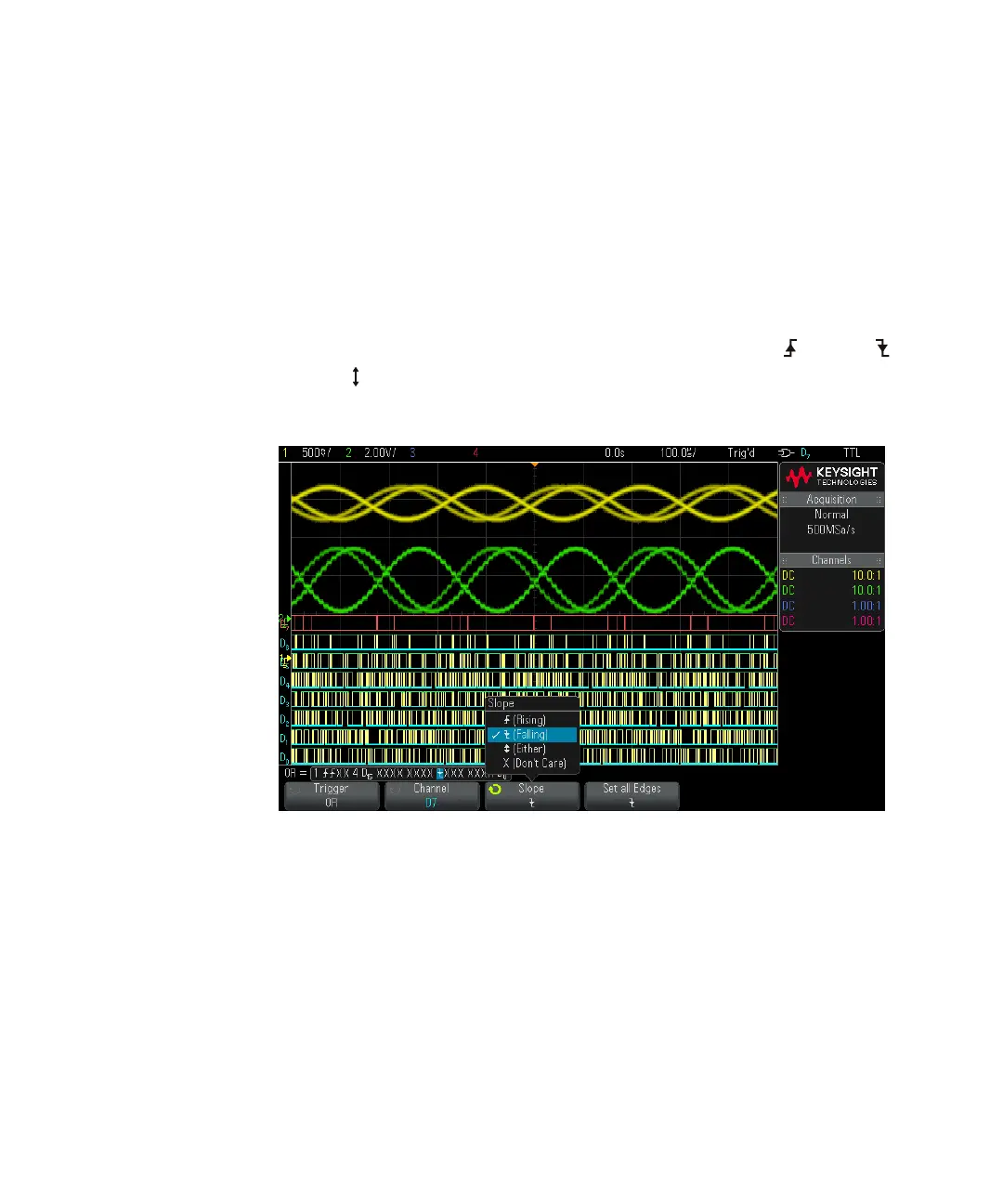

5 For each channel you select, press the Slope softkey and select (Rising),
(Falling), (Either), or X (Don't Care). The selected slope is displayed above the
softkeys.
If all channels in the OR trigger are set to don't care, the oscilloscope will not
trigger.
6 To set all analog and digital channels to the edge selected by the Slope softkey,
press the Set all Edges softkey.
