USB Trigger
USB trigger will trigger on a Start of Packet (SOP), End of Packet (EOP) signal,
Reset Complete (RC), Enter Suspend (Suspend), or Exit Suspend (Exit Sus) on the
differential USB data lines (D+ and D-). USB Low Speed and Full Speed are
supported by this trigger.
Table 3 Half-field holdoff time
Standard Time
NTSC 8.35 ms
PAL 10 ms
PAL-M 10 ms
SECAM 10 ms

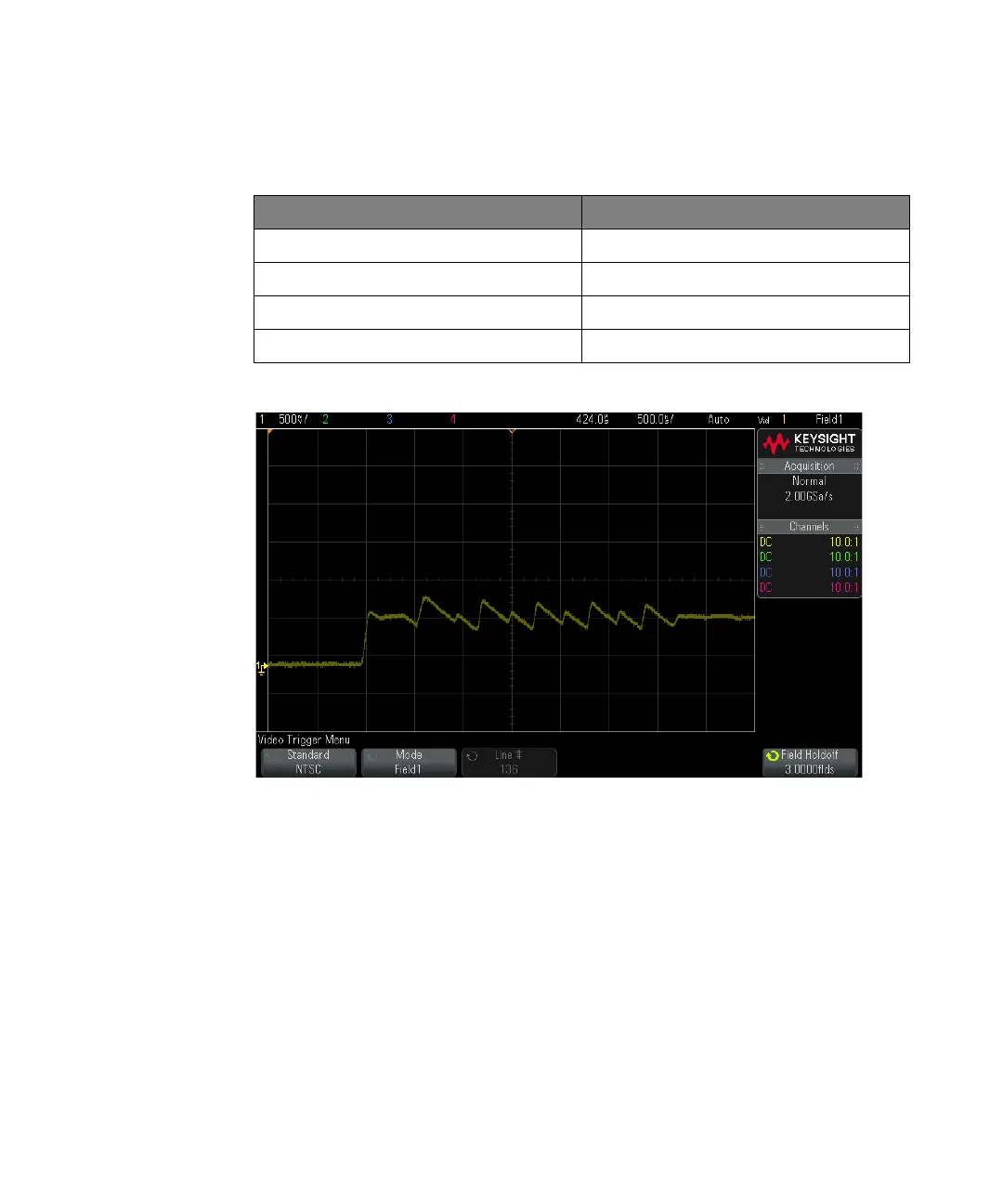

Figure 32 Using Field Holdoff to Synchronize to Color Field 1 or 3 (Field 1 mode)
