Keysight Technologies InfiniiVision 2000 X Series User Manual

160 Keysight InfiniiVision 2000 X-Series Oscilloscopes User's Guide
10 Triggers
To trigger on all sync pulses
To quickly find maximum video levels, you could trigger on all sync pulses. When
All Lines is selected as the Video trigger mode, the oscilloscope will trigger on all
horizontal sync pulses.
1 Press the [Trigger] key.
2 In the Trigger Menu, press the Trigger softkey; then, turn the Entry knob to
select Video.
3 Press the Settings softkey, then press the Standard softkey to select the
appropriate TV standard.
4 Press the Mode softkey and select All Lines.

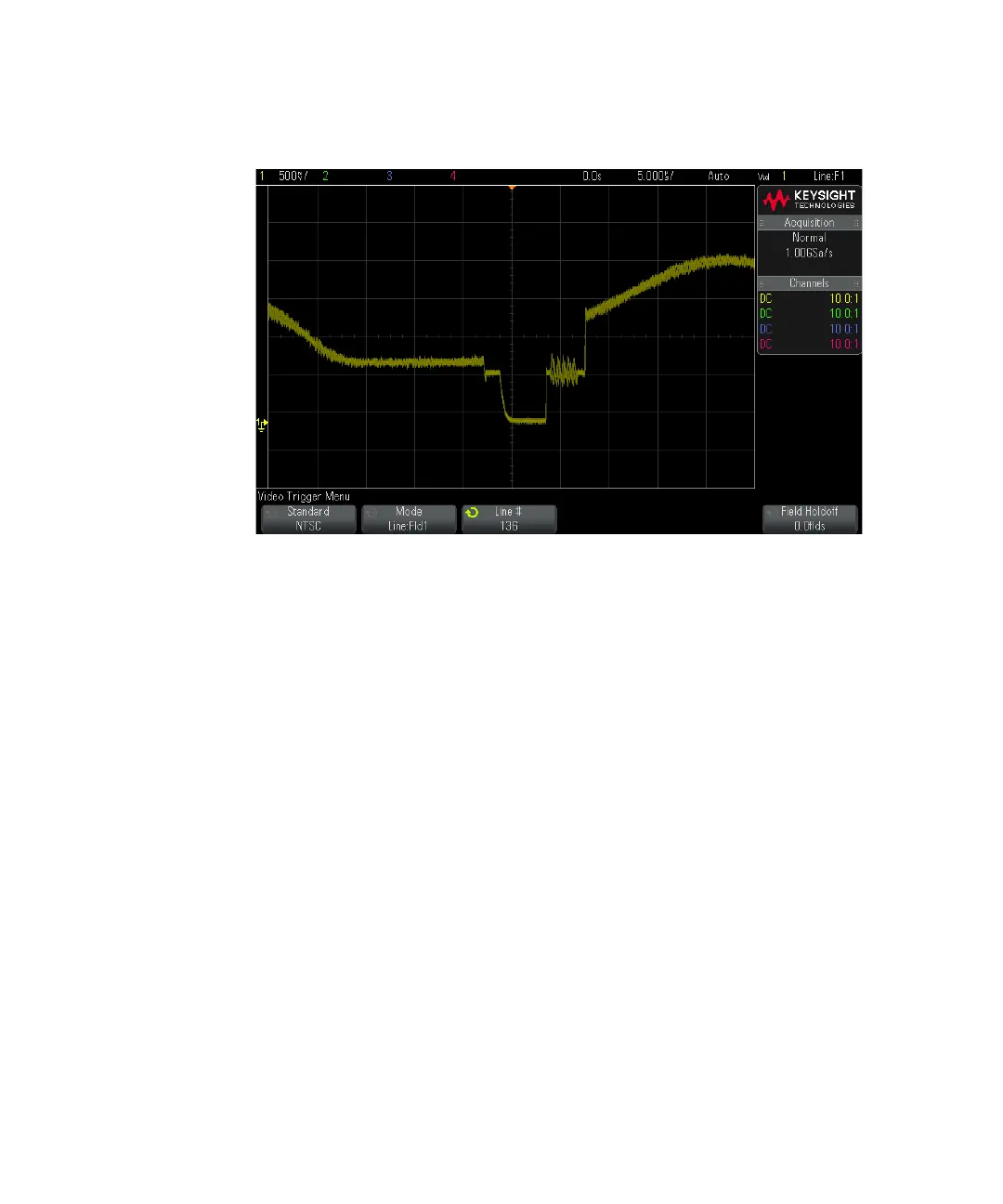

Figure 27 Example: Triggering on Line 136
