4 Math Waveforms

See Also • "Units for Math Waveforms" on page 71

Math Transforms

Math transforms perform a transform function (like differentiate, integrate, FFT, or

square root) on an analog input channel or on the result of an arithmetic

operation.

• "Differentiate" on page 75

• "Integrate" on page 76

• "FFT Measurement" on page 79

• "Square Root" on page 86

These additional transforms are available:

• "Ax + B" on page 86

• "Square" on page 87

• "Absolute Value" on page 87

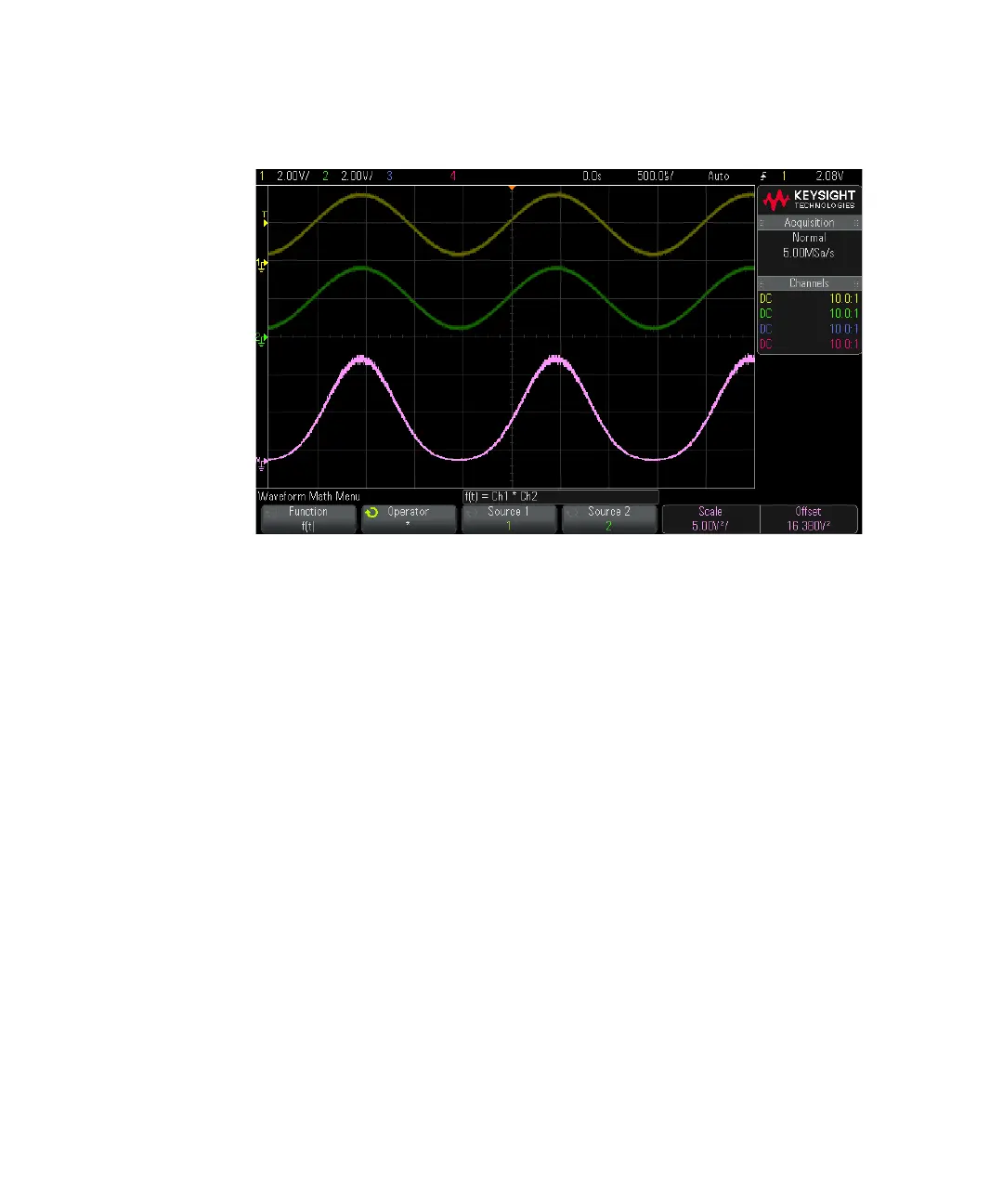

Figure 6 Example of Multiply Channel 1 by Channel 2
