Measurements 14
Keysight InfiniiVision 2000 X-Series Oscilloscopes User's Guide 217
+ Width
+ Width is the time from the middle threshold of the rising edge to the middle
threshold of the next falling edge. The X cursors show the pulse being measured.
The Y cursor shows the middle threshold point.
– Width
– Width is the time from the middle threshold of the falling edge to the middle
threshold of the next rising edge. The X cursors show the pulse being measured.
The Y cursor shows the middle threshold point.
Bit Rate
The bit rate measurement measures all positive and negative pulse widths on the
waveform, takes the minimum value found of either width type and inverts that
minimum width to give a value in Hertz.

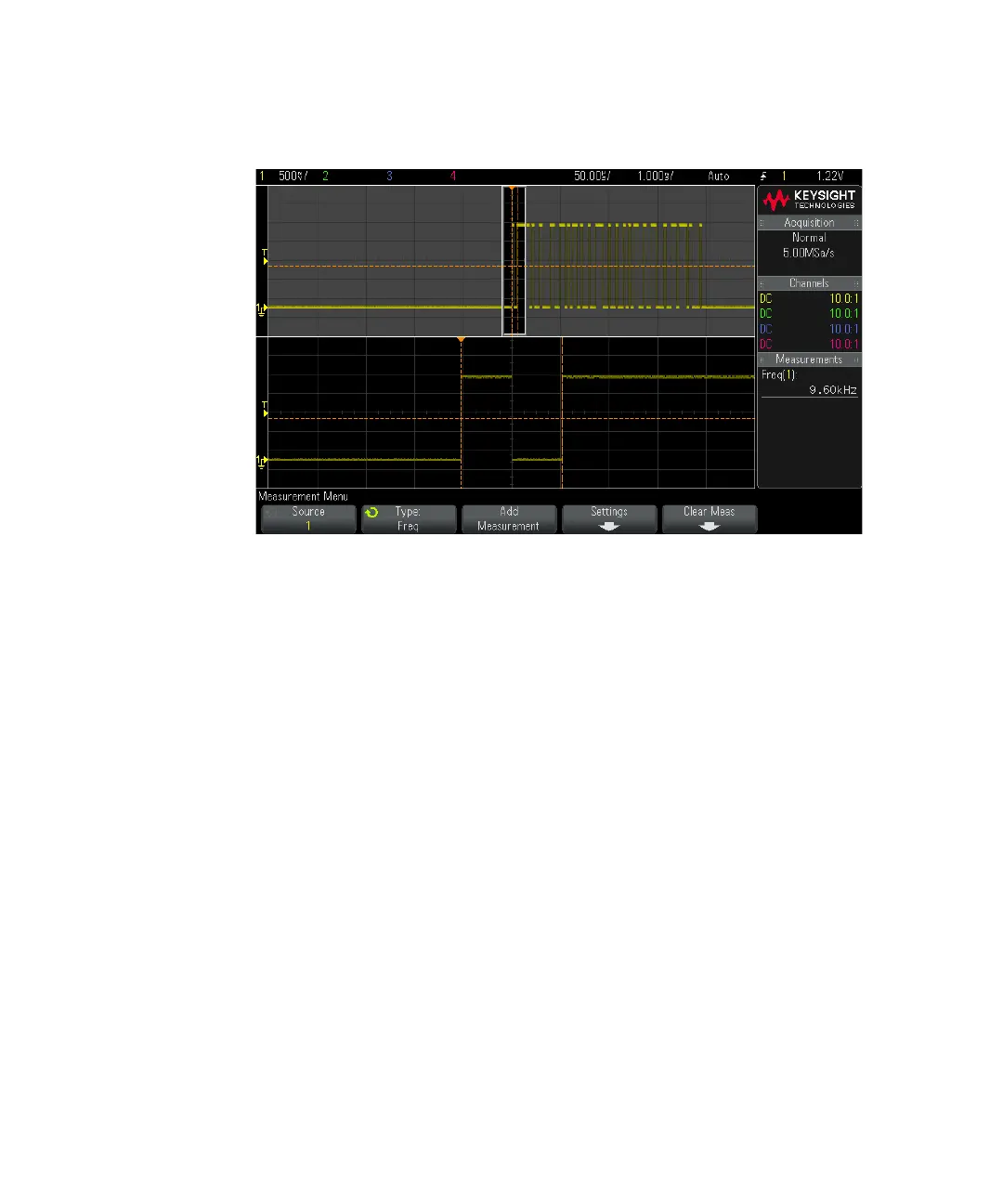

Figure 47 Isolating an event for Frequency measurement
