14 Measurements

You can also configure the [Quick Action] key to display the Snapshot All popup.

See "Configuring the [Quick Action] Key" on page 291.

Voltage Measurements

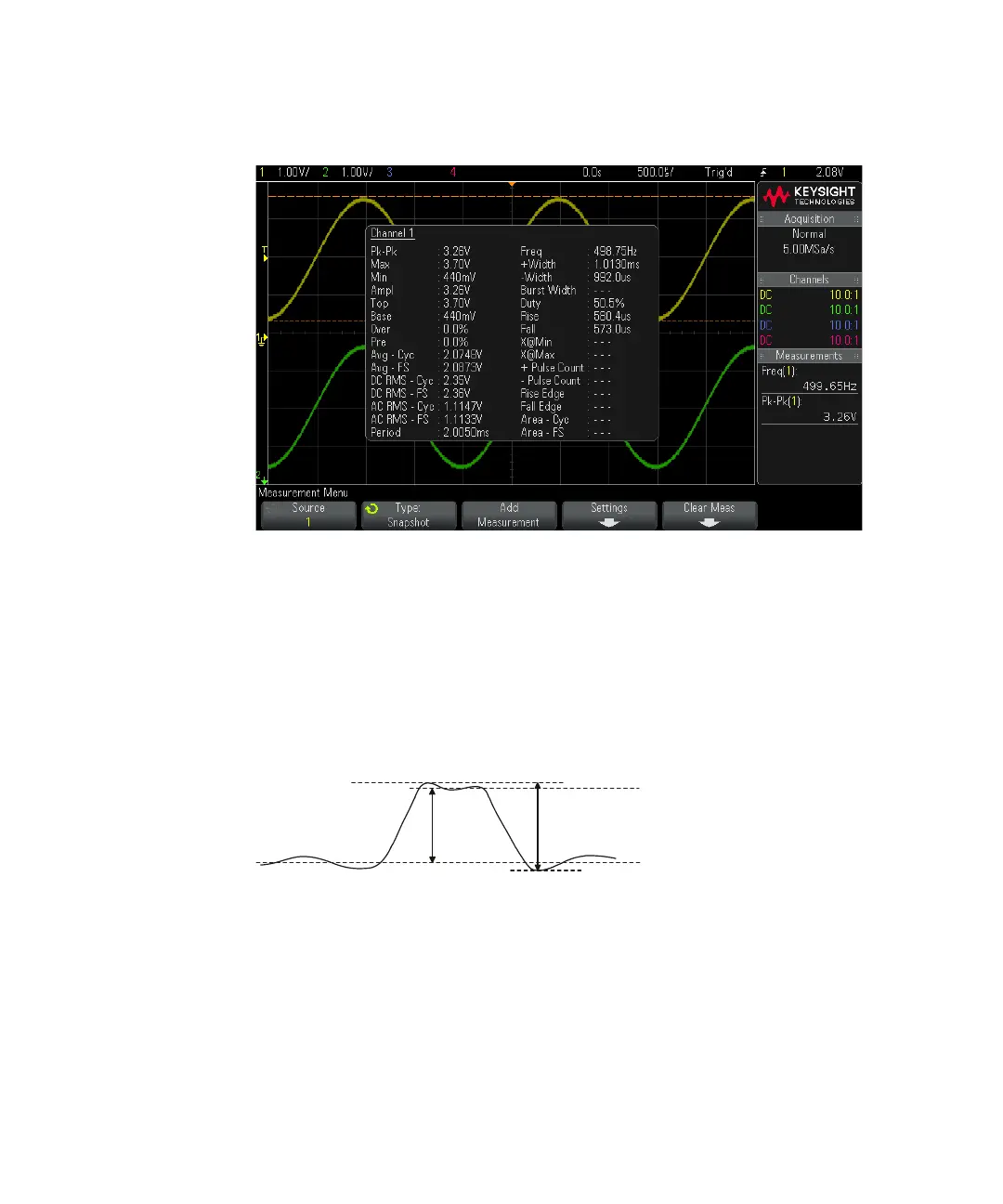

The following figure shows the voltage measurement points.

Measurement units for each input channel can be set to Volts or Amps using the

channel Probe Units softkey. See "To specify the channel units" on page 66.

The units of math waveforms are described in "Units for Math Waveforms" on

page 71.

• "Peak-Peak" on page 209

• "Maximum" on page 209

Amplitude

Maximum

Minimum

Base

Top

Peak-Peak
