Math Waveforms 4
Keysight InfiniiVision 2000 X-Series Oscilloscopes User's Guide 87
Use the Gain (A) softkey to specify the gain.
Use the Offset (B) softkey to specify the offset.
The Ax + B function differs from the Magnify math visualization function in that the
output is likey different than the input.
See Also • "Magnify" on page 92
Square
The square function (available with the PLUS license) calculates the square of the
selected source, point by point, and displays the result.
Press the Source softkey to select the signal source.
See Also • "Square Root" on page 86
Absolute Value
The absolute value function (available with the PLUS license) changes negative
values in the input to positive values and displays the resulting waveform.

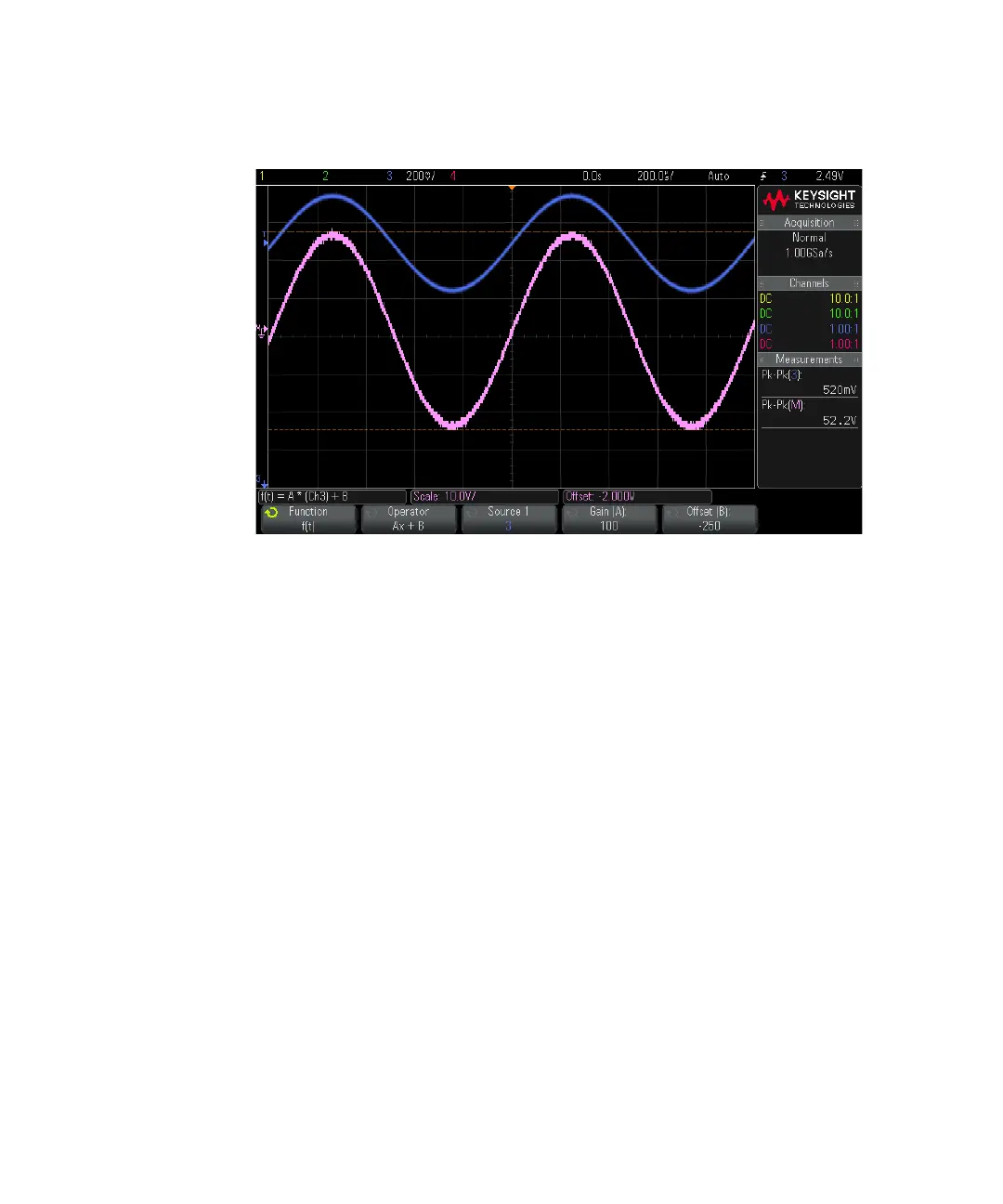

Figure 11 Example of Ax + B
