Web Interface 21
Keysight InfiniiVision 2000 X-Series Oscilloscopes User's Guide 301
3 Click the Save link.

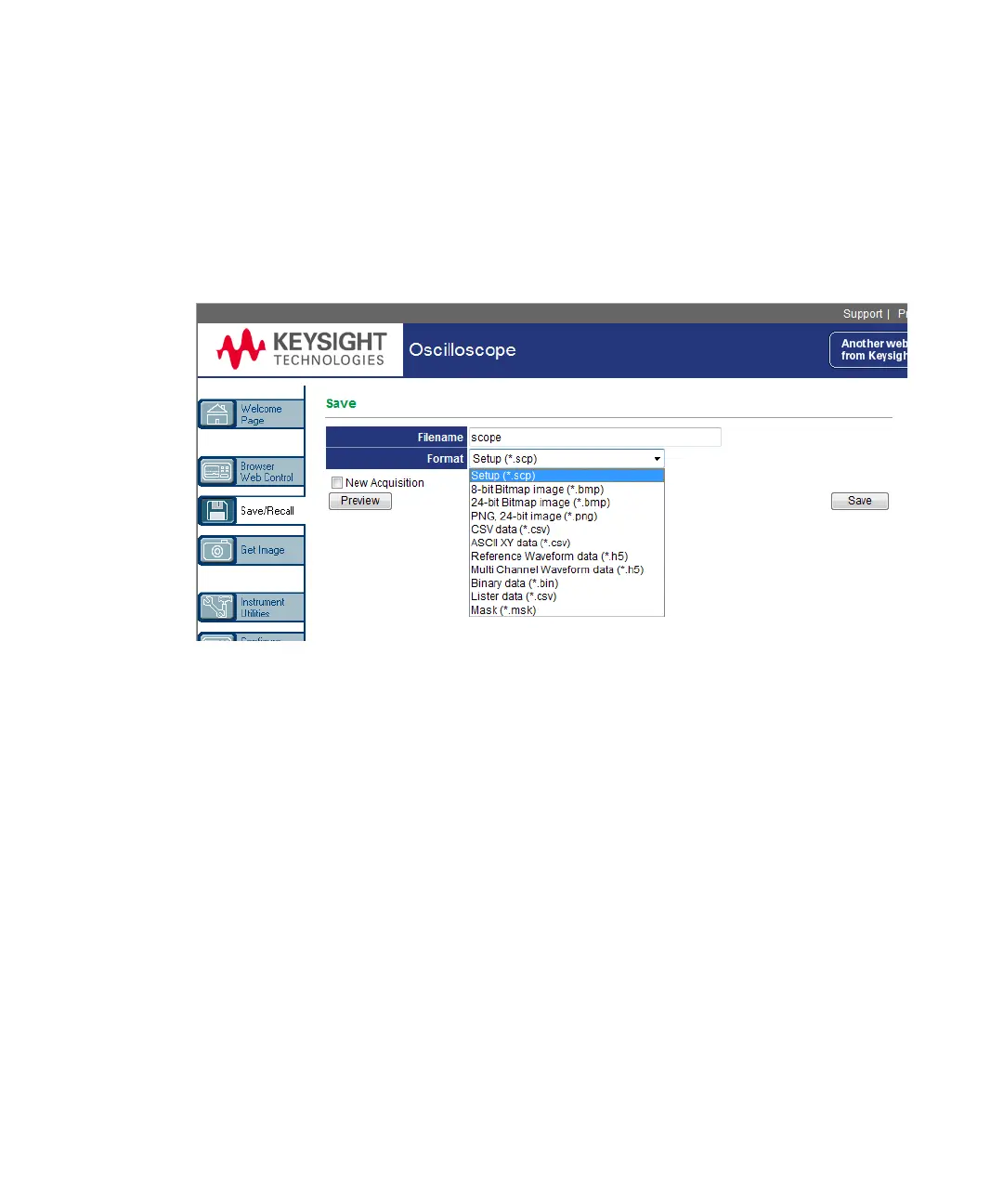

4 On the Save page:
a Enter the name of the file you are saving to.
b Select the format.
You can click Preview to view the oscilloscope's current screen image. When
previewing, you can use the New Acquisition check box to force a new
acquisition before the preview.
With some formats, you can click Save Setup Info to save setup information to
an ASCII .txt format file.
c Click Save.
The current acquisition is saved.
d In the File Download dialog, click Save.
e In the Save As dialog, navigate to the folder where you want to save the file;
then, click Save.
Recalling Files via the Web Interface
To recall setup files, reference waveform data files, or mask files from your PC via
the oscilloscope's web interface:
