Math Waveforms 4
Keysight InfiniiVision 2000 X-Series Oscilloscopes User's Guide 93
Use the Type: softkey to select the measurement whose trend you want to look at.
You can display trend values for these measurements:
•Average
•RMS - AC
•Ratio
• Period
•Frequency
•+Width
•-Width
• Duty Cycle
•Rise Time
•Fall Time
Use the Thresholds softkey to access the Measurement Threshold Menu. See
"Measurement Thresholds" on page 223.

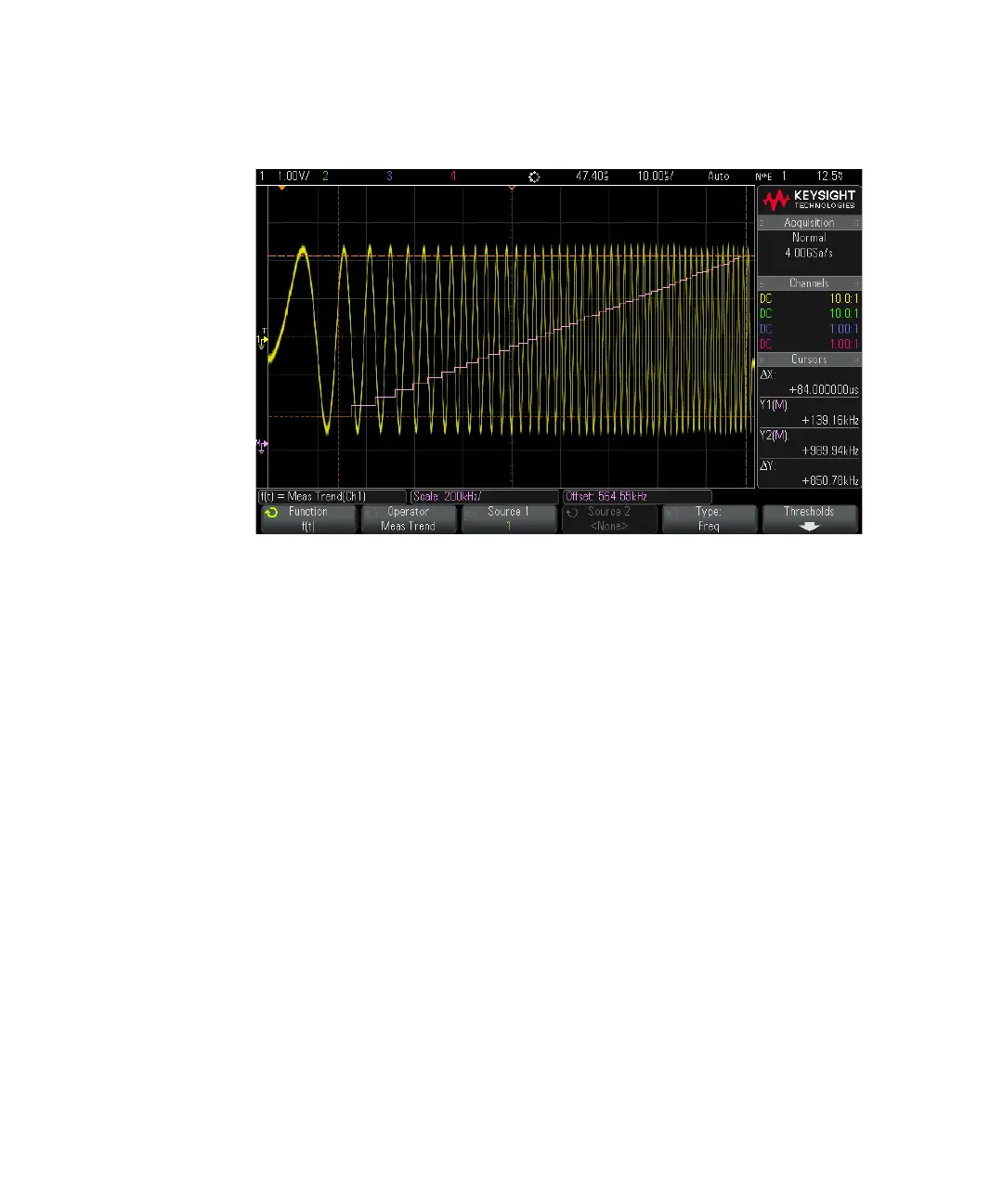

Figure 17 Example of Measurement Trend
