Serial Decode 7
Keysight InfiniiVision 2000 X-Series Oscilloscopes User's Guide 121
Before you can select a row or navigate through the Lister data, oscilloscope
acquisitions must be stopped.
4 Press the [Single] key (in the Run Control group on the front panel) to stop the
acquisition.
Pressing [Single] instead of [Stop] fills the maximum memory depth.
When zoomed out and viewing a large number of packets, the Lister may not
be able to display information for all packets. However, when you press the
[Single] key the Lister will contain all on-screen serial decode information.

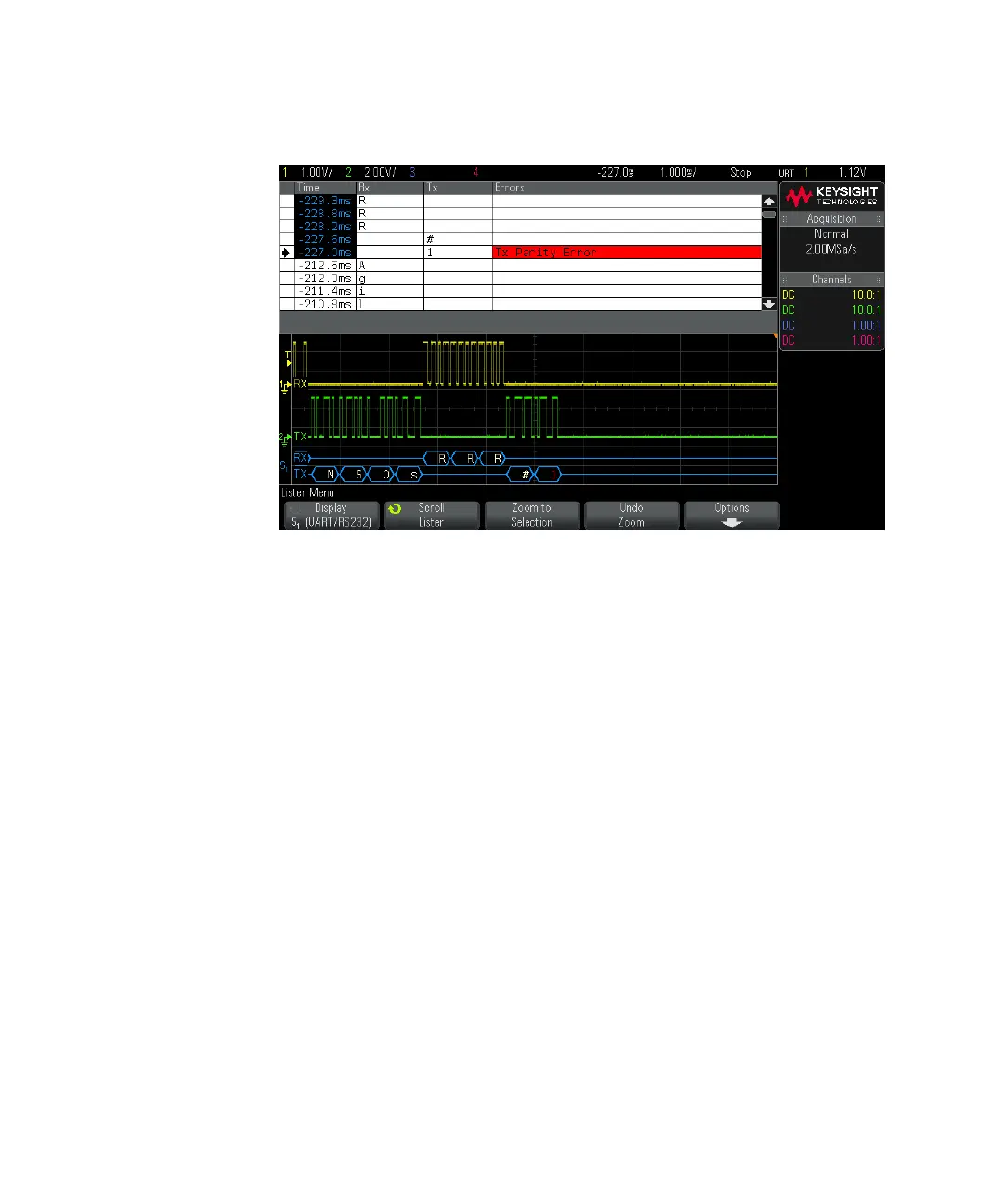

5 Press the Scroll Lister softkey and use the Entry knob to scroll through the data.
Time tags in the Time column indicate the event time relative to the trigger
point. The time tags of events that are shown in the waveform display area are
displayed with a dark background.
6 Press the Zoom to Selection softkey (or push the Entry knob) to center the
waveform display at the time associated with the selected Lister row and
automatically set the horizontal scale setting.
7 Press the Undo Zoom softkey to return to the horizontal scale and delay settings
before the last Zoom to Selection.
8 Press the Options softkey to open the Lister Options Menu. In this menu, you
can:
