200 Keysight InfiniiVision 2000 X-Series Oscilloscopes User's Guide

13 Cursors

Press the X1 X2 linked softkey and move the cursors together to check for pulse

width variations in a pulse train.

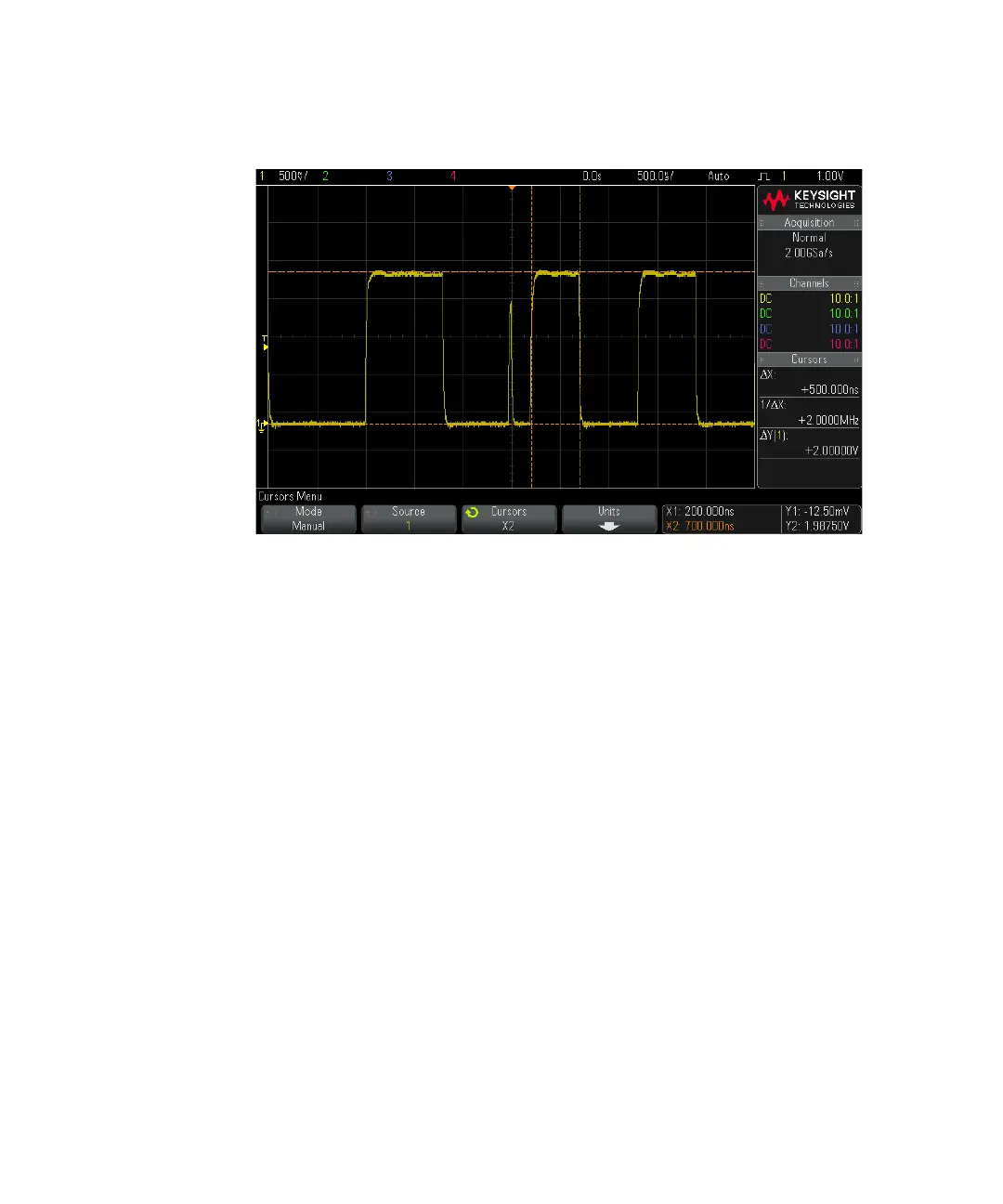

Figure 43 Measuring pulse width with cursors
