Measurements 14

Keysight InfiniiVision 2000 X-Series Oscilloscopes User's Guide 211

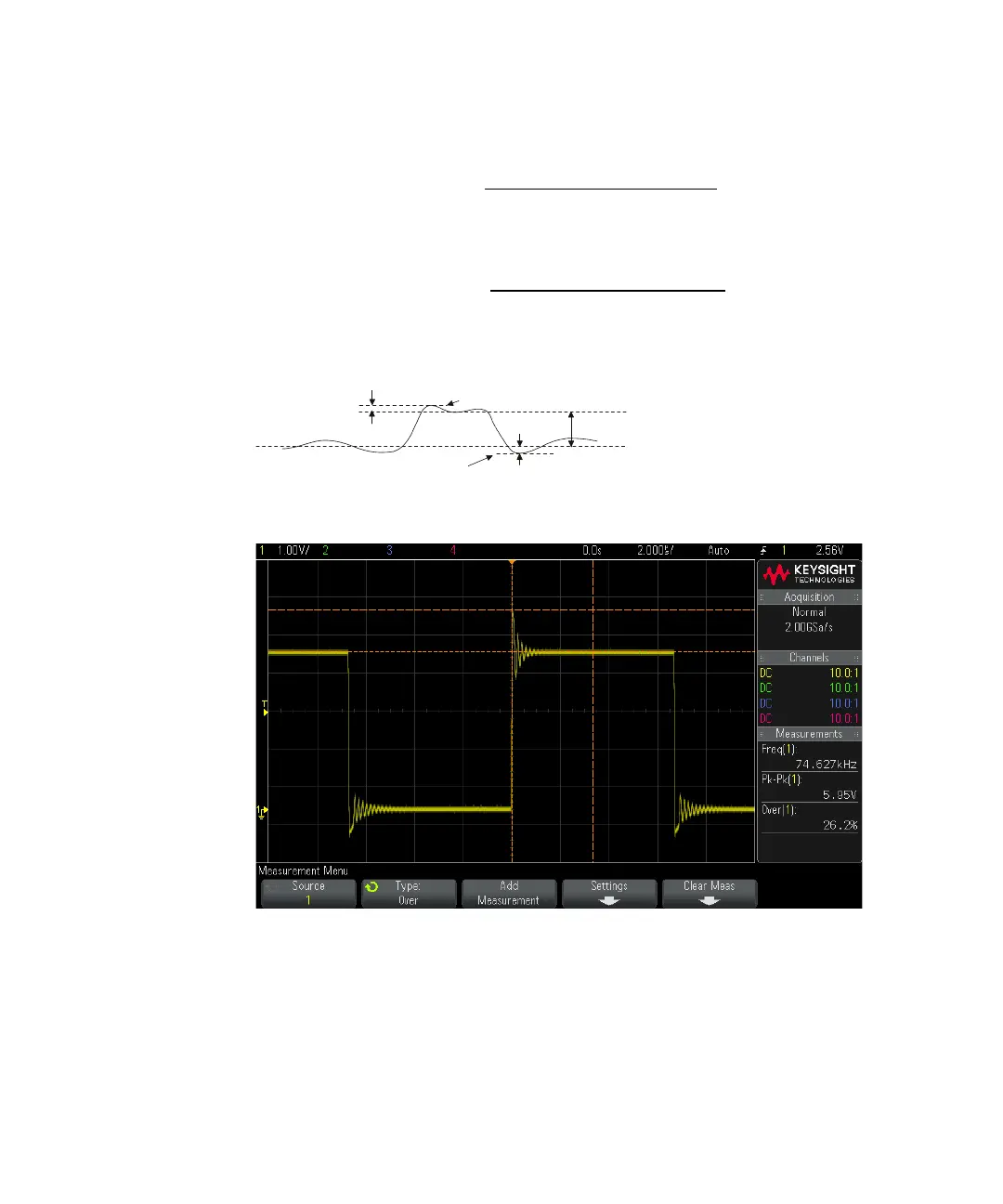

Figure 46 Automatic Overshoot measurement

Rising edge overshοot =

local Maximum − D Top

Amplitude

× 100

Falling edge overshοot =

Base − D local Minimum

Amplitude

× 100

Overshoot

local Maximum

local Minimum

Base

Top

Overshoot
