A75UM3EC (Ver. E.2)
3-75
[Reference]

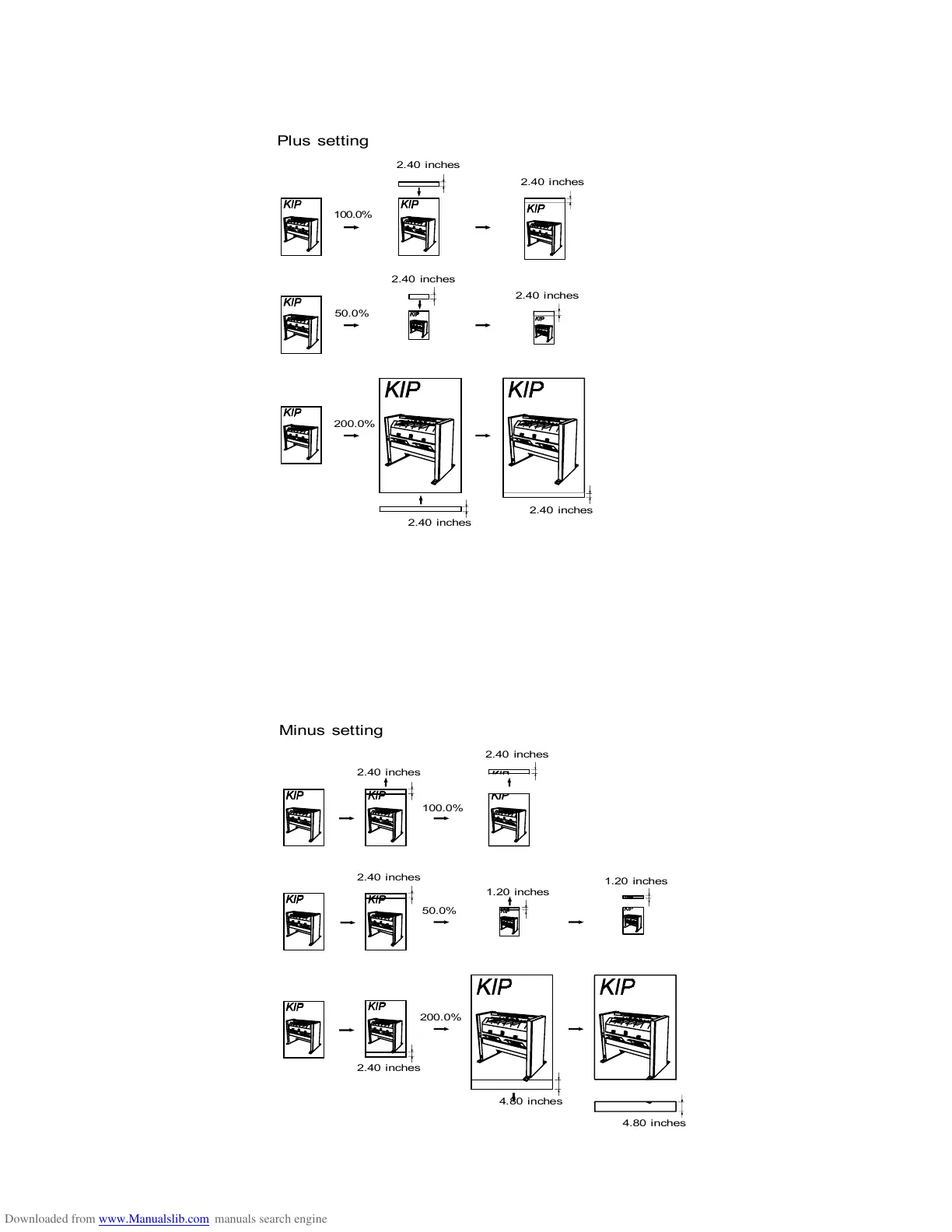

In case of the plus setting, the decided amount of leading/trailing margin is simply provided to the
copy regardless of the zoom ratio.
In case of the minus setting, however, the decided amount of leading/trailing image is deleted from
the Output Image from the view point of 100.0% zoom, and then the Output Image is reduced or
enlarged according to the zoom ratio.
Therefore, the amount of deleted image varies in proportion to the zoom ratio.
If you decide Leading Edge “-2.40 inches”, for example, the length of deleted image is 9.60 inches if
the zoom ratio is 400.0%.
