20
Sync Both EGs
If you select “Sync Both EGs” from the Utility menu and
press the [F8] key, a check mark will appear at the left of
“Sync Both EGs.” In this state, the filter 1 EG and the filter 2
EG can be edited simultaneously. (Editing either one will
cause the other to change.)
“Sync Both EGs” cannot sync the filter EG and amp EG
independently. For example if you sync in 5.1–3d, it will
be synced here as well.
This can be selected only if “Mode (Oscillator Mode)”
(2.1–1a) is Double.
4.2–1: Basic
4.2–2: Mod.1
(Filter2 Modulation1)
4.2–3: Mod.2 (Filter2 Modulation2)
4.2–4: lfoMod (LFO Modulation)
4.2–5: EG (Filter2 EG)
Indicates settings for filter 2, which controls the tone of oscil-
lator 2. You can select either a 24 dB/oct low pass filter with
resonance, or a 12 dB/oct low pass filter and 12 dB/oct high
pass filter connected in series. Filter 2 can be used when
“Mode (Oscillator Mode)” (2.1–1a) is Double. (
☞“PROG 4.1:
Ed-Filter 1")
Indicates settings for amp 1 which controls the volume of
oscillator 1. Pan settings are also made here.
5.1–1: Lvl/Pan (Level/Pan)
These parameters control the volume and pan of oscillator 1.
5.1–1a: Amp1 Level
Level (Amp1 Level) [0…127]
Sets the volume of oscillator 1.
The volume of a program can be controlled by CC#7
(volume) and CC#11 (expression). The resulting level is
determined by multiplying the values of CC#7 and
CC#11. The Global MIDI channel “MIDI Channel”
(GLOBAL 2.1–1a) is used for control.
5.1–1b: Pan
Pan (Amp1 Pan) [Random, L001…C064…R127]
Sets the pan (stereo location) of oscillator 1.
A setting of L001 places the sound at far left, C064 in the
center, and R127 to far right.
Random: The sound will be heard from a different location
at each note-on.
This can be controlled by CC#10 (panpot). A CC#10
value of 0 or 1 will place the sound at the far left, a
value of 64 will place the sound at the location specified
by the “Pan” setting for each oscillator, and a value of
127 will place the sound at the far right. This is con-
trolled on the global MIDI channel “MIDI Channel”
(GLOBAL 2.1–1a).
Use DKit Setting [Off, On]
This is valid when “Mode (Oscillator Mode)” (2.1–1a) is set
to Drums.
On (checked): The sound will be output at the “Pan” set-
ting that has been made for each key of the drum kit (GLO-
BAL 5.1–3a). When “Mode (Oscillator Mode)” is Drums,
you will normally use this setting.
Off (unchecked): All notes will be output as specified by the
“Pan (Amp1 Pan)” setting.
5.1–1c: AMS, Intensity
AMS (Pan AMS) [Off, (PEG, FEG, AEG, LFO, KT, EXT)]
Indicates the source that will modify pan (☞p.222 “AMS
List”). This change will be relative to the “Pan (Amp1 Pan)”
setting.
Intensity [–99…+99]
Specifies the depth of the effect produced by “AMS (Pan
AMS).”
For example, if “Pan (Amp1 Pan)” is set to C064 and “AMS
(Pan AMS)” is Note Number, positive (+) values of this
parameter will cause the sound to move toward the right as
the note numbers increase beyond the C4 note (i.e., as you
play higher), and toward the left as the note numbers
decrease (i.e., as you play lower). Negative (–) values of this
parameter will have the opposite effect.
■ 5.1–1d: UTILITY
☞ “Write Program” (1.1–1c), “Copy Oscillator,” “Swap
Oscillator” (2.1–1d)
5.1–2: Mod. (Amp1 Modulation)
These settings allow you to apply modulation to amp 1 (for
oscillator 1) to modulate the volume.
PROG 4.2: Ed–Filter2

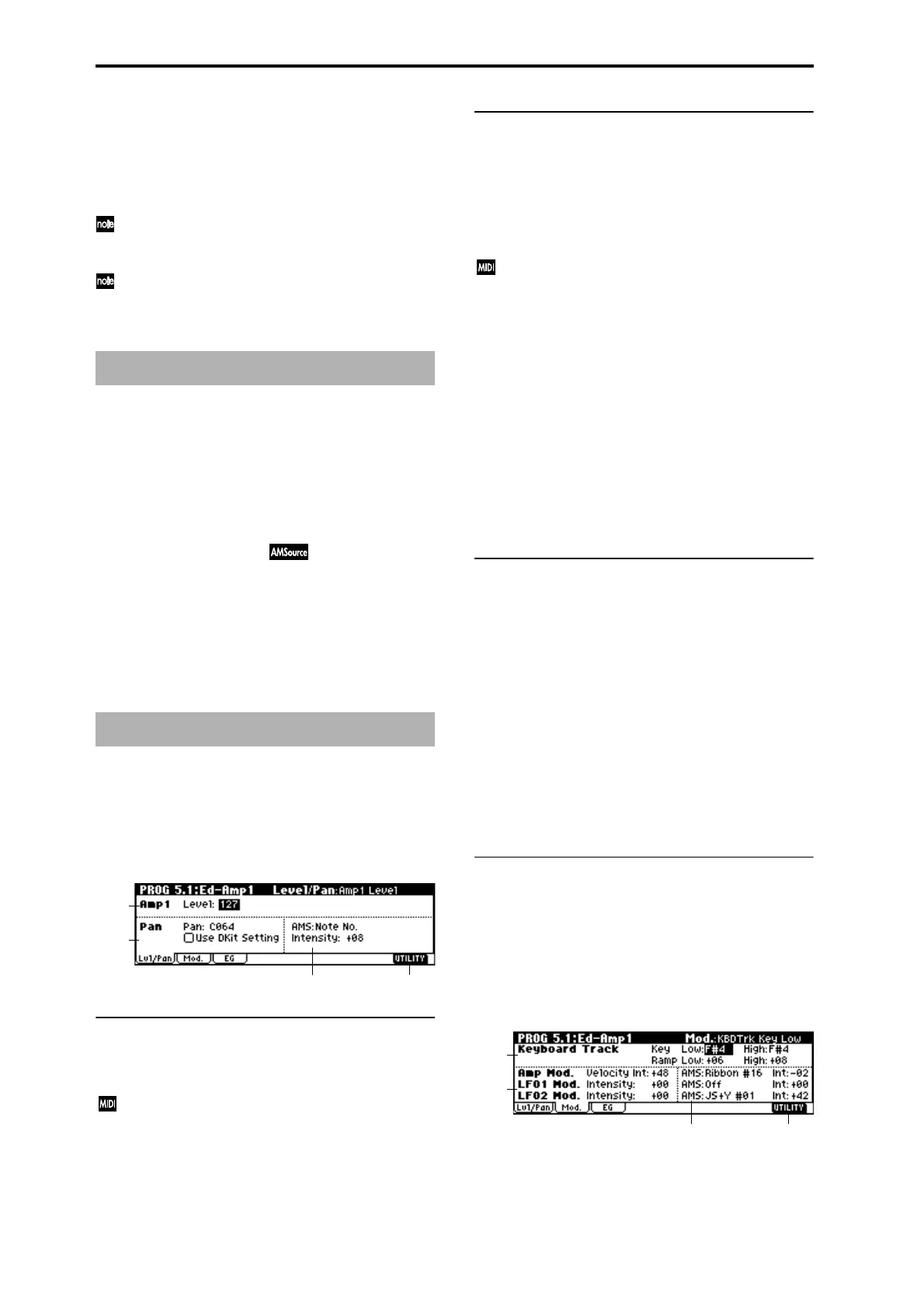

PROG 5.1: Ed–Amp1
5.1–1a
5.1–1b
5.1–1d
5.1–1c
5.1–2a
5.1–2b
5.1–2d
5.1–2c
