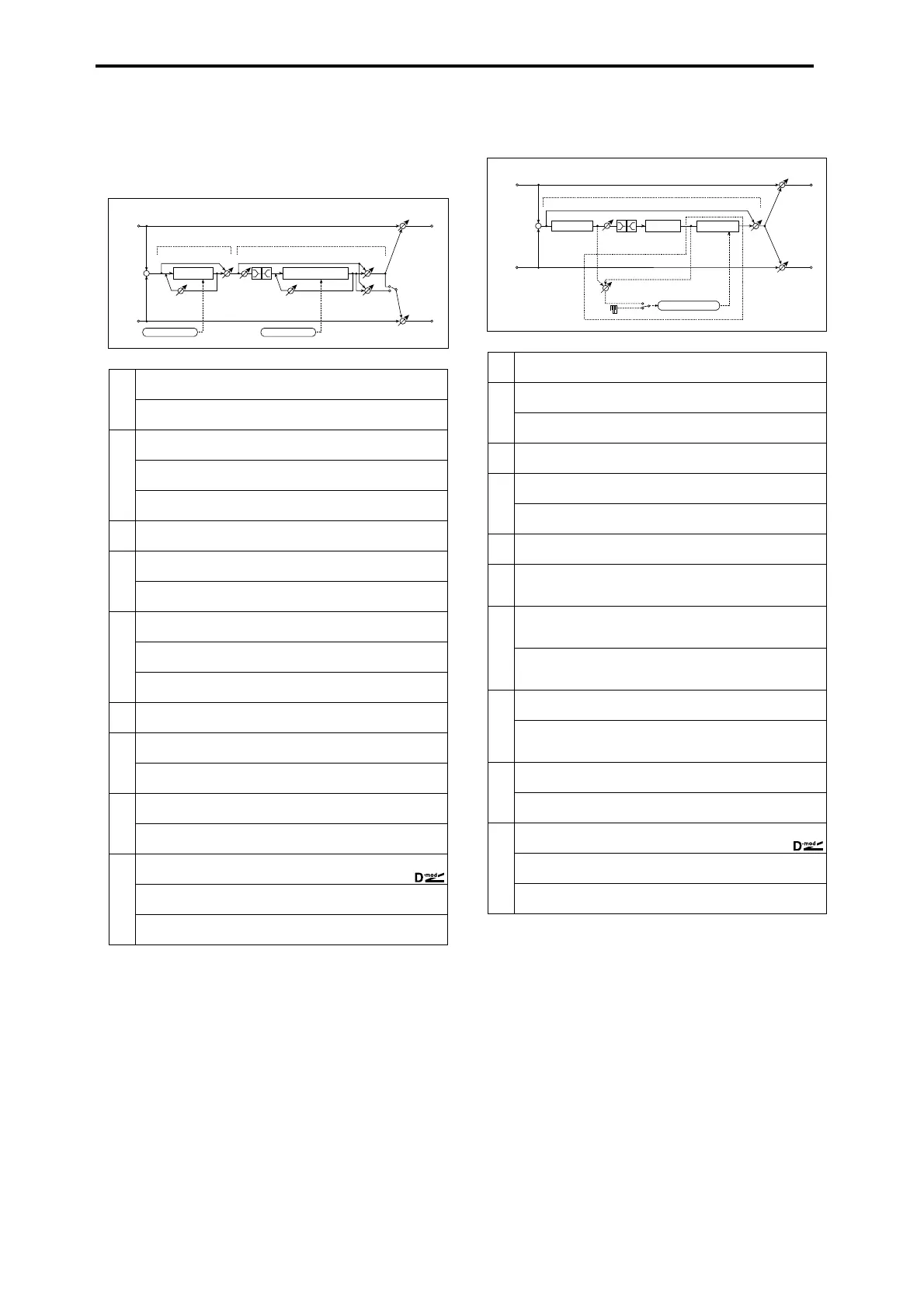

212
088: Phasr–Cho/Fl
(Phaser – Chorus/Flanger)
This effect combines a mono-type phaser and a chorus/
flanger.
089: Reverb–Gate
This effect combines a mono-type reverb and a gate.
g: Envelope, g:Src, f: In Rev Mix, h: Threshold
The “Envelope” parameter enables you to select whether turning
the gate on and off is triggered by the input signal level or con-
trolled directly by the modulation source. You can select from Off
to G2+Dmp for the Source parameter to specify the modulation
source.
When “Envelope” is set to Input, the gate is controlled by the
level of signals that are the combination of the dry sound and the
reverb sound. When the signal level exceeds the threshold, the
gate opens and the reverb sound is output.
Normally, set “In Rev Mix” to Dry (the gate is controlled only by
the dry sound). If you wish to extend the gate time, set the “In Rev
Mix” value higher and adjust the “Threshold” value.
a
[PHS] LFO (LFO Waveform)
Selects the LFO waveform of the phaser
Tri, Sine
F (LFO Frequency)
Sets the LFO speed
0.02...20.00Hz
b
Manu (Manual)
Sets the frequency to which the effect is applied
0...100
Dep (Depth)
Sets the depth of LFO modulation
0...100
Res (Resonance)
Sets the resonance amount
–100...+100
☞ Fx:023
c
Phs W/D (Phaser Wet/Dry) –Wet...–2:98, Dry, 2:98...Wet
Sets the phaser effect balance
☞ Fx:010, 023
d
[CH/FL] LFO (LFO Waveform)
Selects the LFO waveform of the chorus/flanger
Tri, Sine
F (LFO Frequency)
Sets the LFO speed
0.02...20.00Hz
e
Dly (Delay Time)
Sets the delay time
0.0...50.0ms
Dep (Depth)
Sets the depth of LFO modulation
0...100
Fb (Feedback)
Sets the feedback amount
–100...+100
☞ Fx:020
f
Pre EQ Trim
Sets the EQ input level
0...100
g
LoEQ (Pre Low EQ Gain)
Sets the gain of Low EQ
–15...+15dB
HiEQ (Pre High EQ Gain)
Sets the gain of High EQ
–15...+15dB
h
C/F W/D (Cho/Flng Wet/Dry) –Wet...–2:98, Dry, 2:98...Wet
Sets the effect balance of the chorus/flanger
☞ Fx:010, 020
Out (Output Mode) Normal, Wet Inv
Selects the output mode for the chorus/flanger
☞ Fx:060
i
W/D (Wet/Dly) Dry, 1:99...99:1, Wet
Sets the balance between the effect and dry sounds
(Source) Off...Tempo
Selects the modulation source of the effect balance
(Amount)
Sets the modulation amount of the effect balance
–100...+100
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Stereo Out / Dry: Stereo In - Stereo Out
+
Chorus/Flanger
Cho/Flng
Wet / Dry
LEQ
HEQ
EQ
Trim
Chorus/Flanger
Feedback
Phaser
Phaser
Wet / Dry
Phaser
Resonance
LFO: Tri / Sine
LFO: Tri / Sine
Normal
Wet Invert
Output Mode
–
+
a
[REV] Reverb Time
Sets the reverberation time
0.1...10.0sec
b
HiDamp (High Damp)
Sets the damping amount in the high range
0...100%
Pre Dly (Pre Delay) 0...200ms
Sets the delay time of the reverb sound and gate control signal
c
Pre EQ Trim
Sets the EQ input level
0...100
d
LoEQ (Pre Low EQ Gain)
Sets the gain of Low EQ
–15...+15dB
HiEQ (Pre High EQ Gain)
Sets the gain of High EQ
–15...+15dB
e
Rev Balance (Reverb Balance) Dry, 1:99...99:1, Wet
Sets the reverb effect balance
f
[GATE] In Rev Mix (Input Reverb Mix) Dry, 1:99...99:1, Wet
Sets the balance between the dry and reverb sounds of the gate con-
trol signal.
☞
g
Envelope (Envelope Select) Dmod, Input
Switches between modulation source control and input signal control
☞
Src (Source) Off...G2+Dmp
Selects the modulation source that controls the gate when Envelope
is set to Dmod
☞
h
Threshold
Sets the gate threshold level
0...100
☞
Polarity +, –
Switches between non-invert and invert of the gate on/off state
☞ Fx:005
i
Attack
Sets the attack time
1...100
☞ Fx:005
Release
Sets the release time
1...100
☞ Fx:005
j
W/D (Wet/Dly) Dry, 1:99...99:1, Wet
Sets the balance between the effect and dry sounds
(Source) Off...Tempo
Selects the modulation source of the effect balance
(Amount)
Sets the modulation amount of the effect balance
–100...+100
Left
Right
Wet / Dry
Wet / Dry
Reverb
Balance
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
+
LEQ
HEQ
EQ Trim
Reverb
Pre Delay
Envelope - Control
D-mod
Input
Envelope Select
Gate
Input Reverb Mix
Reverb
Gate
Gate+Dmpr
To Next Page
