40
■ 7.2–2(...6)a: UTILITY
☞ “Write Program” (1.1–1c)

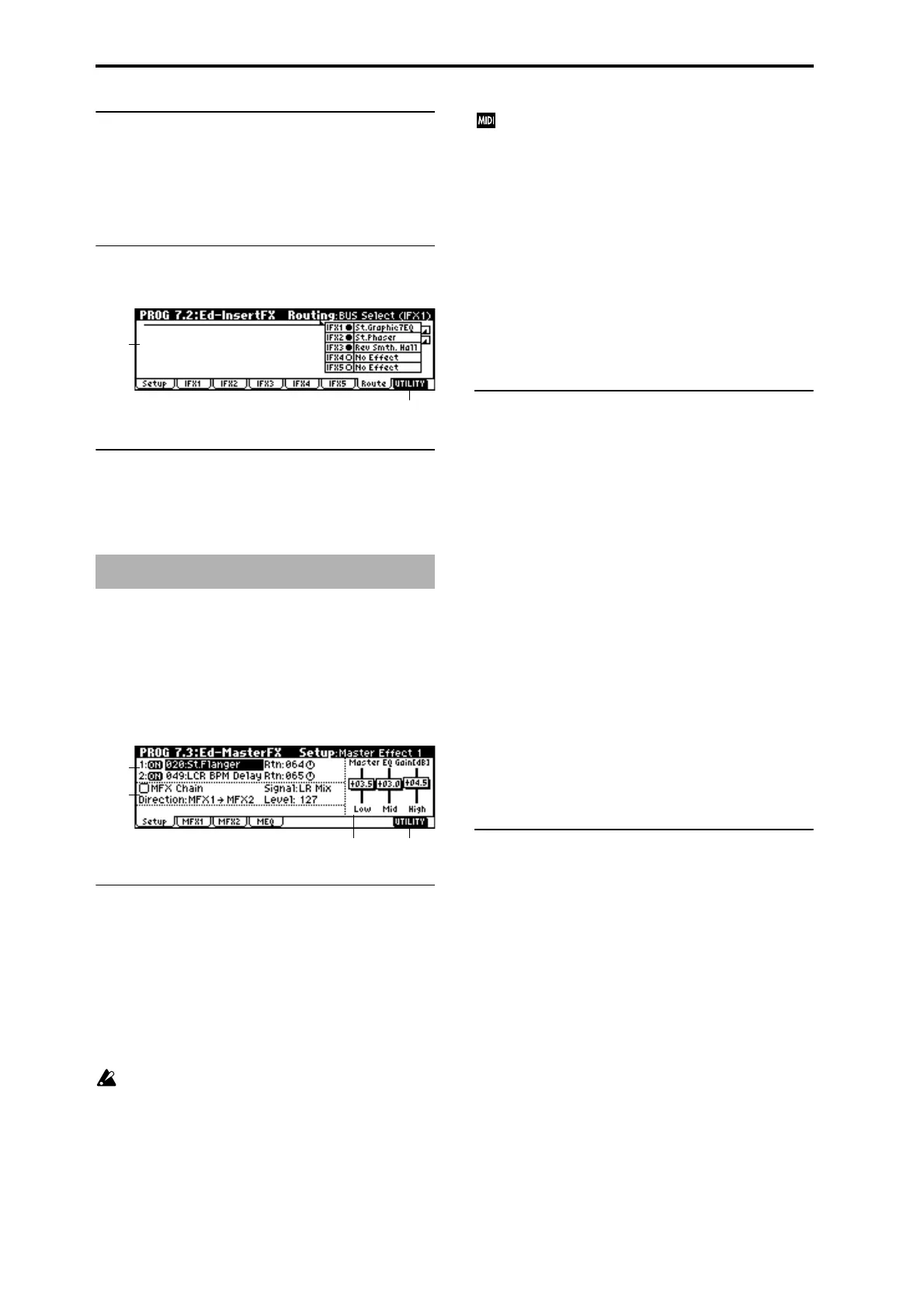

7.2–7: Routing (Routing)
7.2–7a: Routing
This shows the status of the insert effect settings. (☞7.1–2a)
■ 7.2–1b: UTILITY
☞ “Write Program” (1.1–1c), “Copy Insert Effect,” “Swap
Insert Effect” (7.1–1c)
☞ For details on insertion effects, refer to p.159 “7. Effect
Guide.”
7.3–1: Setup
Here you can select the master effect types, switch them on/
off, specify chaining, and set the master EQ.
7.3–1a: Master Effect Setup
The master effects do not output the direct sound (Dry). The
return level (“Rtn 1, 2”) sends the effect sound (Wet) to the L
and R bus, and this is mixed with the direct sound (“BUS
Select” L/R: 7.1–1a, 7.2–1a).
The master effects are monaural input. The sound that is
panned to L and R after passing through the oscillator and
insert effects is mixed to a monaural signal as adjusted by
the “S1 (Send1 (MFX1))” and “S2 (Send2 (MFX2))” levels,
and input to the master effects.
The master effects are mono-in stereo-out. Even when
a stereo-input type effect is selected, the input will be
monaural.
MFX1 On/Off, MFX2 On/Off [Off, ON]
Switches master effect 1, 2 on/off. When off, the output will
be muted.
Separately from this setting, you can use CC#94 to
switch master effect 1 on/off, CC#95 to switch master
effect 2 on/off. A value of 0 will be off, and a value of 1–
127 will be the original setting. This is controlled on the
global MIDI channel “MIDI Channel” (GLOBAL 2.1–
1a).
Master Effect 1, 2 [000...089: name]
Indicates the effect type for master effect 1, 2. You can select
from 90 types of effect: 000: No Effect–089: Reverb-Gate.
(Double-size effects cannot be selected.) If 000: No Effect is
selected, the output from the master effect will be muted.
Rtn 1, 2 (Return 1, 2) [000...127]
Adjusts the return levels from the master effects to the L/R
bus (main output L/MONO, R).
7.3–1b: Chain
MFX Chain [Off, On]
On (checked): Chain (series connection) will be turned on
for MFX1 and MFX2. (
☞p.165)
Direction (Chain Direction)
[MFX1→MFX2, MFX2→MFX1]
Specifies the direction of the connection when MFX1 and
MFX2 are chained.
MFX1→MFX2: Connect from MFX1 to MFX2.
MFX2→MFX1: Connect from MFX2 to MFX1.
Signal (Chain Signal) [LR Mix, L Only, R Only]
When chain is On, this parameter specifies how the stereo
output signal of the first master effect will be connected to
the input (mono) of the next master effect.
L/R Mix: The stereo output L/R of the first master effect will
be mixed before being input to the next master effect.
L Only, R Only: Only the left or right channel of the output
will be input to the next master effect.
Level (Chain Level) [000...127]
Sets the send level from the first master effect to the next
master effect when chain is turned on.
7.3–1c: Master EQ Gain [dB]
Sets the gain for the three-band EQ located immediately
before the sound of the L/R bus is sent from the AUDIO
OUTPUT (MAIN OUT) L/MONO and R jacks. This is
linked with the various “Gain” parameters of Master EQ
(7.3–4).
Low [–18.0...+18.0]
Mid [–18.0...+18.0]
High [–18.0...+18.0]
The cutoff frequency for “Low,” “Mid” and “High” and the
“Q” of “Mid” can be adjusted in the MEQ page. These set-
tings are in “dB” units.
PROG 7.3: Ed–MasterFX
7.2–7a
7.2–7b
7.3–1a
7.3–1b
7.3–1d7.3–1c
