COMBI
1.1
2.12.22.33.13.23.33.44.14.24.34.46.16.26.36.47.17.27.3
65
Here you can specify the output bus for the program oscilla-
tor of each timbre 1–8. You can also specify the send level to
the master effects.
☞ For details on insertion effects, refer to p.159 “7. Effect
Guide.”
7.1–1: BUS (BUS T01...08)
7.1–1a: BUS Select, Send1(MFX1), Send2(MFX2)
BUS Select [DKit, L/R, IFX1...5, 1, 2, 1/2, Off]
Specifies the output bus for the program oscillator of each
timbre 1–8. The current setting status can be viewed in the
7.2–1: Route page.
DKit: This can be selected only if the program for which set-
tings are being made is a drum program “Mode (Oscillator
Mode) Drums” (PROG 2.1–1a). With a setting of DKit, the
“BUS Select” (GLOBAL 5.1–3a) setting made for each key of
the drum kit will be used.
For example, if the “BUS Select” settings of the drum kit
have assigned Snare sounds to IFX1 and Kick sounds to
IFX2, setting this parameter to DKit will send the Snare
sounds to IFX1 and Kick sounds to IFX2. If you wish to
modify these routings, use Utility “DKit IFX Patch” (7.1–1b).
If this is set to 1/2, the programs of timbres 1–8 will be
sent in stereo from AUDIO OUTPUT (INDIVIDUAL)
1/2. If the pan of the program oscillator is controlled by
MIDI control change #10 (pan) or AMS (Alternate Mod-
ulation Source), the sound will be output with the pan
setting that is in effect at the moment of note-on. Unlike
the case when this parameter is set to L/R to output the
sound from (MAIN) L/MONO and R, the pan of a
sounding note will not change in real-time.
If you wish to move the pan of a sounding note in real-
time and output it from AUDIO OUTPUT (INDIVID-
UAL) 1/2, you must set “BUS Select” to IFX1 (or IFX2–
IFX5), select 000: No Effect for “IFX1” (or IFX2–IFX5)
(7.2–1a), and for the sound that has passed through the
IFX, set “BUS Select” (7.2–1a) to either 1/2.
S1 (Send1(MFX1)) [000...127]
S2 (Send2(MFX2)) [000...127]
For each timbre 1–8, these parameters set the send level to
master effects 1 and 2. These settings are valid when “BUS
Select” is set to L/R or Off. When IFX 1, 2, 3, 4 or 5 are
selected, the send levels to master effects 1 and 2 are set by
the “S1 (Send1(MFX)), ” “S2 (Send2(MFX))” parameters of
the 7.2: Ed–InsertFX, Setup page, after the sound has passed
through IFX1–5.
If “BUS Select” is set to 1, 2 or 1/2 these settings are ignored.
Control change #93 can be used to control the Send 1
level, and #91 to control the Send 2, and modify their
respective settings. These messages will be received on
the MIDI channel specified for each timbre in the 3.1:
Ed–Param1, MIDI page.
The actual send levels are determined by multiplying
this value with the send level “S1 (Send1(MFX)), ” “S2
(Send2(MFX))” (PROG 7.2–1a) for each oscillator of the
program selected for the timbre.
■ 7.1–1b: UTILITY
☞ “Write Combination,” “Solo Selected Timbre” (1.1–1c)
For details on how to select the desired utility function, refer
to “PROG 1.1–1c: UTILITY.”
Copy Insert Effect
☞PROG 7.1–1c
However, the MIDI control channel specified for “Control
Channel” of the 7.2: Ed–InsertFX, Setup page will not be
copied.
Swap Insert Effect
☞PROG 7.1–1c
However, the MIDI control channel specified for “Control
Channel” of the 7.2: Ed–InsertFX, Setup page will not be
copied.
DKit IFX Patch (DrumKit IFX Patch)
This command applies a patch to the “BUS Select” settings
of each key of the drum kit, allowing you to temporarily
change the connections to the insert effects. This command
is available only if a drum program has been selected for the
timbre and the “BUS Select” (7.1–1a) parameter is set to
Dkit. Furthermore, this command can be executed only if
the “BUS Select” (GLOBAL 5.1–3a) for the individual keys
of that drum kit are set to IFX1–5.
1 Select “DKit IFX Patch” to access the dialog box.
2 In the right side of “DrumKit IFX 1–5→”, select the insert
effect to which you want to patch.
3 To execute the Drum Kit Insert Effect Patch command,
press the [F8] (“OK”) key. To cancel without executing,
press the [F7] (“Cancel”) key.
To restore the condition of the drum kit, execute
IFX1→IFX1, IFX2→IFX2, IFX3→IFX3, IFX4→IFX4, and
IFX5→IFX5.

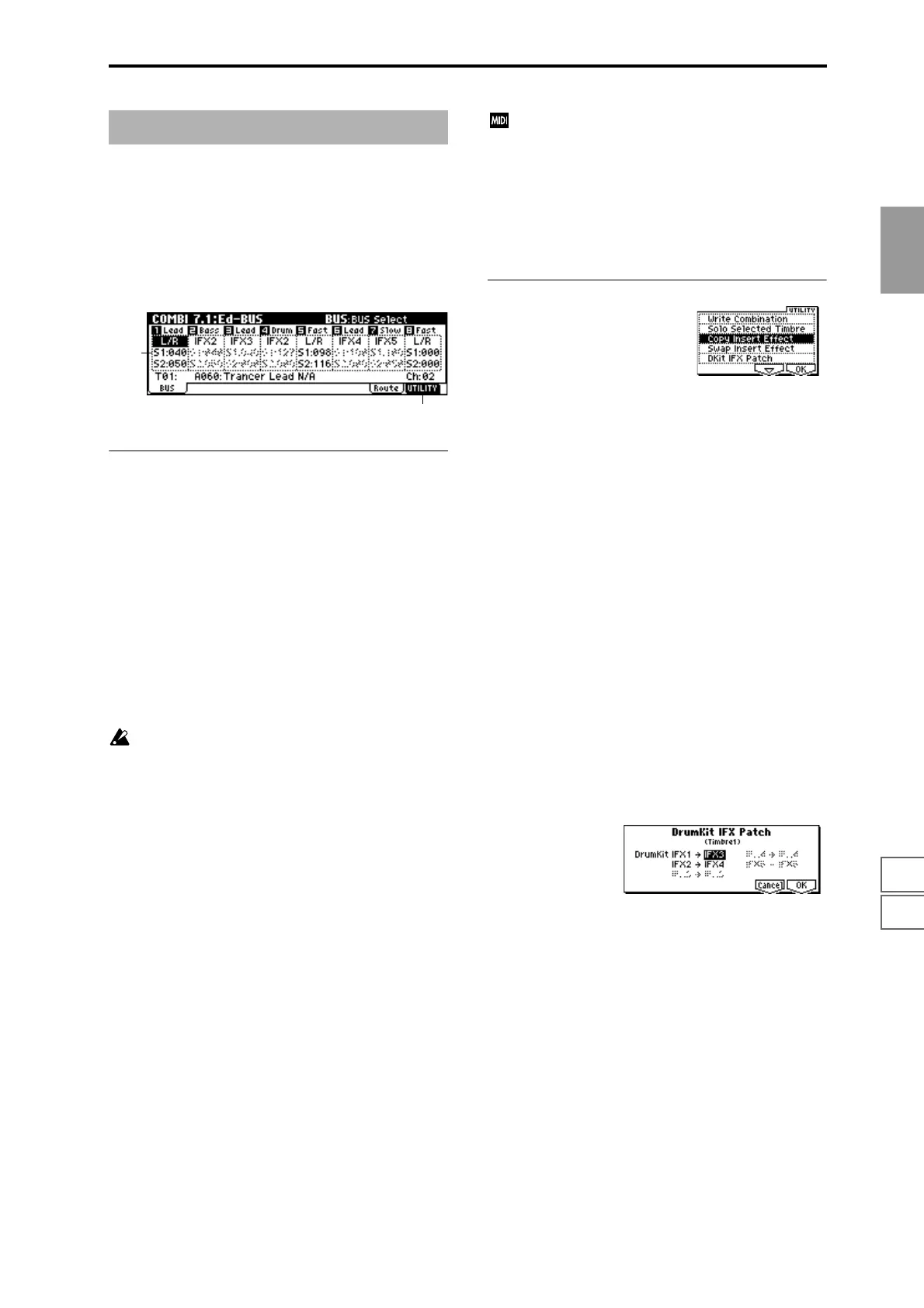

COMBI 7.1: Ed–BUS
7.1–1a
7.1–1b
To Next Page
