PROG
1.1
2.12.22.33.14.14.25.15.25.36.16.26.36.47.17.27.3
37
These settings specify the bus on which the output of the
oscillator will be sent, and adjust the send levels to the mas-
ter effects.
☞ For details on insertion effects, refer to p.159 “7. Effect
Guide.”
7.1–1: BUS

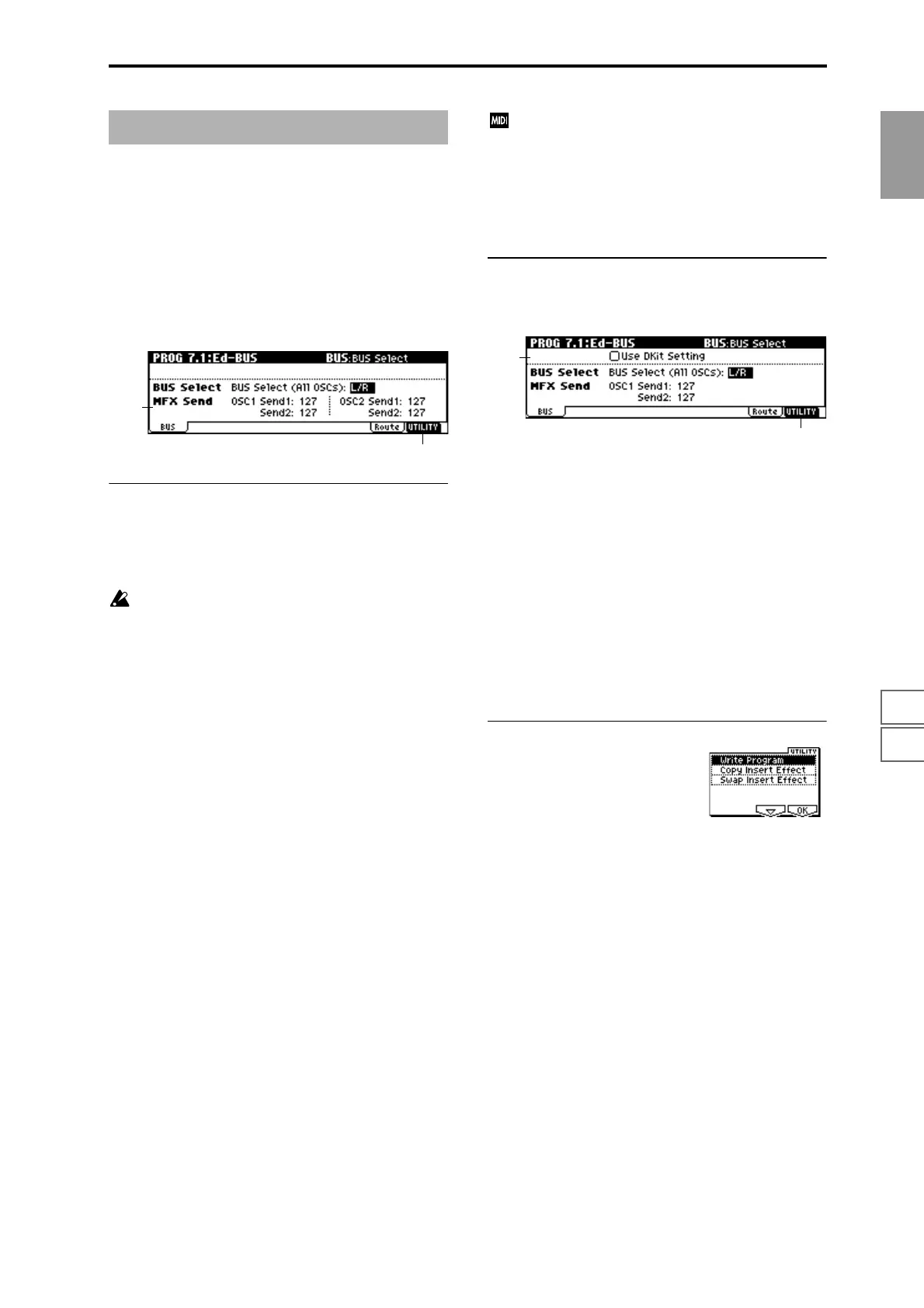

The following diagram shows the LCD screen when “Mode
(Oscillator Mode)” (2.1–1a) is set to Single or Double.
7.1–1a: BUS
BUS Select:
BUS Select (All OSCs) [L/R, IFX1...5, 1, 2, 1/2, Off]
Specifies the bus to which oscillators 1 and 2 will be sent.
If this is set to 1/2, the oscillator pan settings (5.1–1b,
5.2–1) will be used to output the sound in stereo from
AUDIO OUTPUT (INDIVIDUAL) 1/2. When the oscil-
lator pan is controlled by CC#10 (pan) or AMS (Alter-
nate Modulation Source), the sound will be output with
the pan setting that is in effect at note-on. Unlike the
case when this is set to L/R to output the sound from
(MAIN) L/MONO and R, the pan of a sounding note
will not change in real-time.
If you wish to adjust the pan in real-time while playing
a note and output the sound from AUDIO OUTPUT
(INDIVIDUAL) 1/2, set “BUS Select” to IFX1 (or IFX2–
IFX5), set “IFX1” (or IFX2–IFX5 (7.2–1a)) to 000: No
Effect, and set the “BUS Select” (7.2–1a) after passing
through IFX to 1/2.
MFX Send:
OSC1 Send1 [000...127]
Sets the volume (send level) at which the output of OSC1
will be sent to master effect 1. This is valid when “BUS
Select” is set to L/R or Off.
If “BUS Select” is set to IFX1, IFX2, IFX3, IFX4 or IFX5, the
send levels to master effect 1 and 2 are set by “S1
(Send1(MFX1))” and “S2 (Send2(MFX2))” (7.2–1a) after
passing through IFX 1/2/3/4/5 of the Ed-InsertFX Setup
pages.
OSC1 Send2 [000...127]
Sets the volume (send level) at which the output of OSC1
will be sent to master effect 2 (
☞“OSC1 Send1”).
OSC2 Send1 [000...127]
OSC2 Send2 [000...127]
Sets the volume (send level) at which the output of OSC2
will be sent to master effects 1 and 2. These parameters will
be valid when “Mode (Oscillator Mode)” (2.1–1a) is set to
Double and “BUS Select” is set to L/R or Off (
☞“OSC1
Send1”).
CC#93 will control the Send 1 level for OSC 1 and 2,
and control change #91 will control the Send 2 level for
OSC 1 and 2. These are controlled on the global MIDI
channel “MIDI Channel” (GLOBAL 2.1–1a).
The actual send level is determined by multiplying
these values with the send level setting of each oscilla-
tor.
7.1–1b: Use DKit Setting
The LCD screen shown below is for when “Mode (Oscillator
Mode)” (2.1–1a) is set to Drums.
Use DKit Setting [Off, On]
This will be available when “Mode (Oscillator Mode)” is set
to Drums.
On (checked): The “BUS (BUS Select)” (GLOBAL 5.1–3a)
setting for each key of the selected drum kit will be used.
Check this when you want to apply an insert effect to an
individual drum instrument, or to output an individual
drum instrument to one of the AUDIO OUTPUT (INDIVID-
UAL) jacks.
If the “Mode (Oscillator Mode)” is Single or Double, this
setting has no effect.
Off (unchecked): The setting of the “BUS Select,” “MFX
Send” (7.1–1a) parameter described below will be used. All
drum instruments will be sent to the specified bus.
■ 7.1–1c: UTILITY
☞ “Write Program” (1.1–1c)
For details on how to select the desired utility function, refer
to “PROG 1.1–1c: UTILITY.”
PROG 7.1: Ed–BUS
7.1–1a
7.1–1c
7.1–1b
7.1–1c
