206

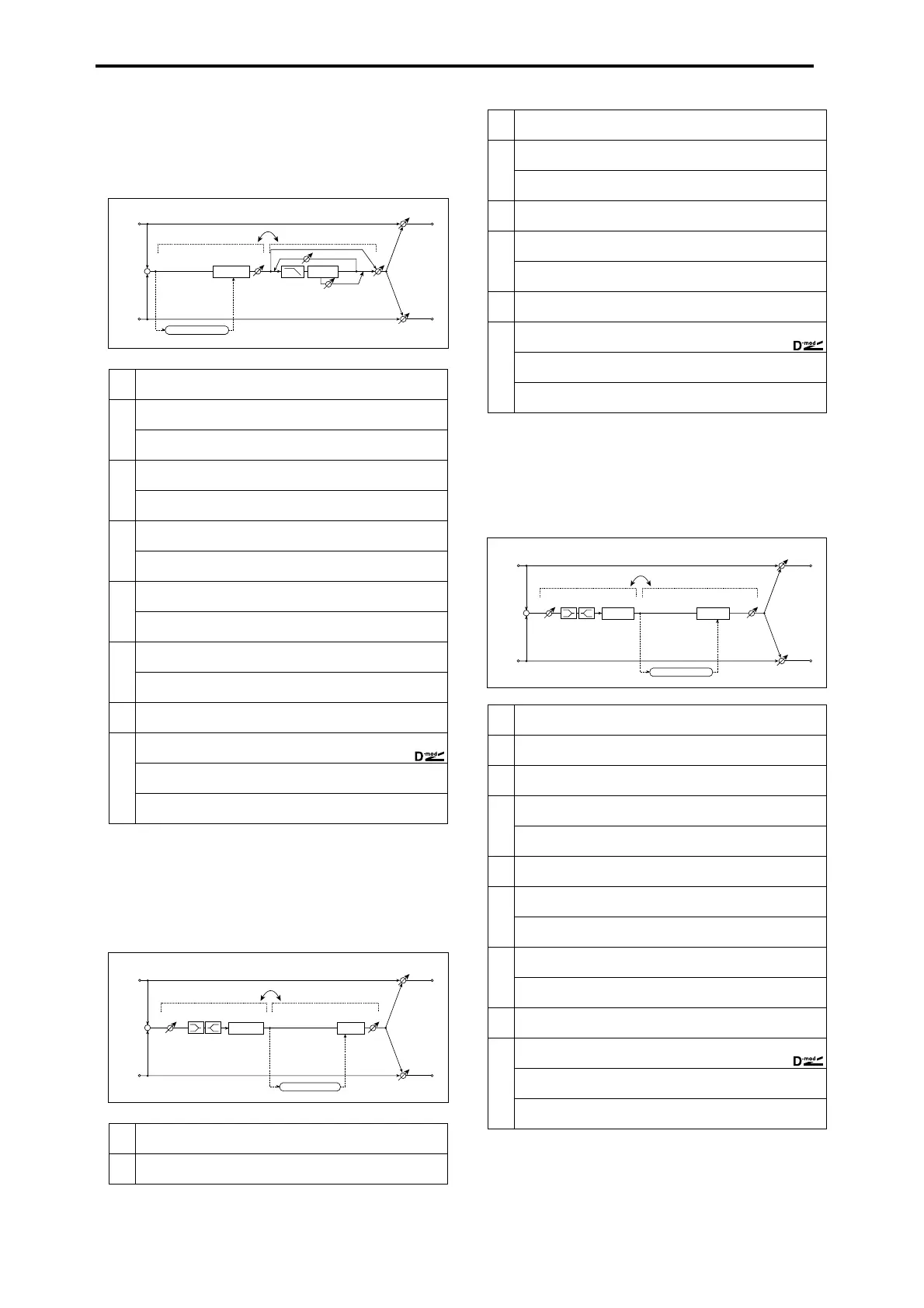

073: Limiter–M.Dly
(Limiter – Multitap Delay)
This effect combines a mono-type limiter and a multitap
delay. You can change the order of the effect connection.
074: Exct–Comp
(Exciter – Compressor)
This effect combines a mono-type exciter and a compressor.
You can change the order of the effect connection.
075: Exct–Limiter
(Exciter Limiter)
This effect combines a mono-type exciter and a limiter. You
can change the order of the effect connection.
a
[LMT] Ratio 1.0:1...50.0:1, Inf:1
Sets the signal compression ratio
☞ Fx:003
b
Threshld (Threshold) –40...0dB
Sets the level above which the compressor is applied
☞ Fx:003
G.Adj (Gain Adjust)
Sets the limiter output gain
–Inf, –38...+24dB
☞ Fx:003
c
Attack
Sets the attack time
1...100
☞ Fx:003
Release
Sets the release time
1...100
☞ Fx:003
d
[DLY] T1 (Tap1 Delay)
Sets the Tap1 delay time
0...680ms
T2 (Tap2 Delay)
Sets the Tap2 delay time
0...680ms
e
T1 Level (Tap1 Level)
Sets the Tap1 output level
0...100
☞ Fx:045
T2 Fb (Tap2 Feedback)
Sets the Tap2 feedback amount
–100...+100
f
Dly W/D (Delay Wet/Dry) Dry, 1:99...99:1, Wet
Sets the multitap delay effect balance
HiDamp (High Damp)
Sets the damping amount in the high range
0...100%
☞ Fx:043
g
[Routing] LMT→DLY, DLY→LMT
Switches the order of the limiter and multitap delay connection
h
W/D (Wet/Dly) Dry, 1:99...99:1, Wet
Sets the balance between the effect and dry sounds
(Source) Off...Tempo
Selects the modulation source of the effect balance
(Amount)
Sets the modulation amount of the effect balance
–100...+100
a
[XTC] Blend (Exciter Blend)
Sets the intensity (depth) of the Exciter effect
–100...+100
☞ Fx:011
b
Emphatic Point
Sets the frequency range to be emphasized
0...70
☞ Fx:011
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
+
Routing
Multitap Delay
Feedback
High Damp
Delay
(2)
(1)
Mt.Dly Wet / Dry
Limiter
Limiter
Gain Adjust
Envelope - Control
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
+
Routing
Compressor
LEQ HEQ
EQ Trim
Comp
Output Level
Envelope - Control
Exciter
Exciter
c
Pre EQ Trim
Sets the EQ input level
0...100
d
LoEQ (Pre Low EQ Gain)
Sets the gain of Low EQ
–15...+15dB
HiEQ (Pre High EQ Gain)
Sets the gain of High EQ
–15...+15dB
e
[CMP] Sensitivity
Sets the sensitivity
1...100
☞ Fx:002
f
Attack
Sets the attack level
1...100
☞ Fx:002
Level (Output Level)
Sets the compressor output level
0...100
☞ Fx:002
g
[Routing] XCT→CMP, CMP→XCT
Switches the order of the exciter and compressor connection
h
W/D (Wet/Dly) Dry, 1:99...99:1, Wet
Sets the balance between the effect and dry sounds
(Source) Off...Tempo
Selects the modulation source of the effect balance
(Amount)
Sets the modulation amount of the effect balance
–100...+100
a
[XTC] Blend (Exciter Blend)
Sets the intensity (depth) of the Exciter effect
–100...+100
☞ Fx:011
b
Emphatic Point
Sets the frequency range to be emphasized
0...70
☞ Fx:011
c
Pre EQ Trim
Sets the EQ input level
0...100
d
LoEQ (Pre Low EQ Gain)
Sets the gain of Low EQ
–15...+15dB
HiEQ (Pre High EQ Gain)
Sets the gain of High EQ
–15...+15dB
e
[LMT] Ratio 1.0:1...50.0:1, Inf:1
Sets the signal compression ratio
☞ Fx:003
f
Threshld (Threshold) –40...0dB
Sets the level above which the compressor is applied
☞ Fx:003
G.Adj (Gain Adjust)
Sets the limiter output gain
–Inf, –38...+24dB
☞ Fx:003
g
Attack
Sets the attack time
1...100
☞ Fx:003
Release
Sets the release time
1...100
☞ Fx:003
h
[Routing] XCT→LMT, LMT→XCT
Switches the order of the exciter and limiter connection
i
W/D (Wet/Dly) Dry, 1:99...99:1, Wet
Sets the balance between the effect and dry sounds
(Source) Off...Tempo
Selects the modulation source of the effect balance
(Amount)
Sets the modulation amount of the effect balance
–100...+100
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
+
Routing
LEQ HEQ
EQ Trim
Exciter
Exciter
Limiter
Limiter
Gain Adjust
Envelope - Control
