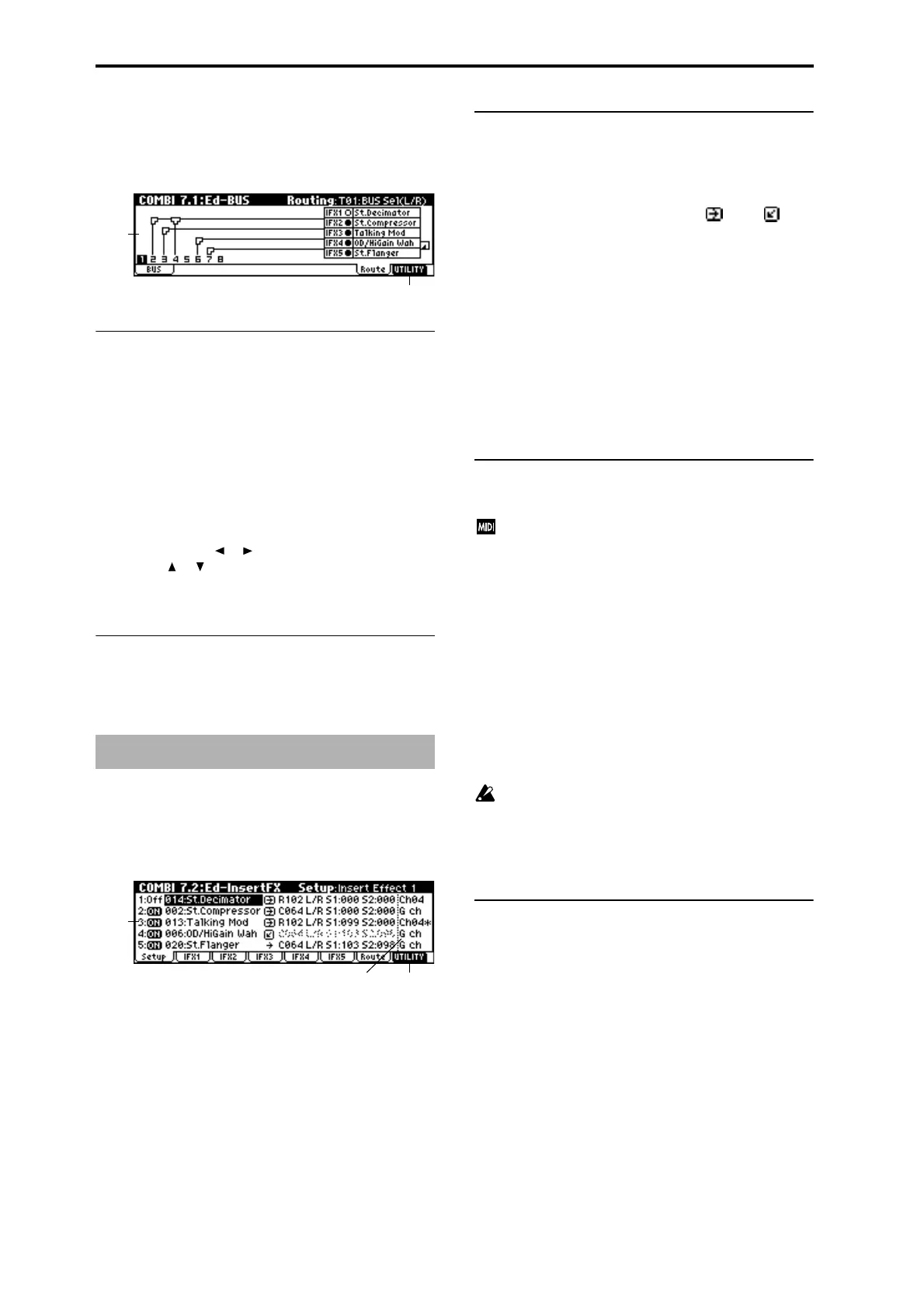

7.1–2: Route (Routing)
Specifies the bus to which the program used by each timbre
1–8 will be sent. Here you can also set the send levels to the
master effects.
7.1–2a: Routing Map, BUS Select
Routing Map
This shows the status of the insert effects. For each insert
effect, this indicates the routing, the name of the selected
effect, the on/off status, and chain status. The effect type,
on/off status and chain status can be modified in the 7.2:
Ed–InsertFX, Setup page.
T01...8: BUS Sel [DKit, L/R, IFX1...5, 1, 2, 1/2, Off]
You can specify the bus to which the program oscillator of
each timbre 1–8 will be sent, while viewing a map of the set-
tings.
Use the cursor keys [ ], [ ] to select the timbre, and use
the VALUE [ ], [ ] key, [VALUE] slider or [VALUE] dial to
set “BUS Select” (7.1–1a).
These settings can also be made in “BUS Select” (7.1–1a).
■ 7.1–2b: UTILITY
☞ “Write Combination,” “Solo Selected Timbre” (1.1–1c),
“Copy Insert Effect,” “Swap Insert Effect,” “DKit IFX
Patch” (7.1–1b)
7.2–1: Setup
Here you can select the type of each insert effect, turn it on/
off, and make chain settings etc.
7.2–1a: Ed-InsertFX Setup
IFX1 — IFX5 [Off, ON]
Insert Effect 1, 5 [000...089: name]
Insert Effect 2, 3, 4 [000...102: name]
Chain [ (Off), (On)]
Pan(CC#8) [L000...C064...R127]
BUS Select [L/R, 1, 2, 1/2, Off]
S1 (Send1 (MFX1)) [000...127]
S2 (Send2 (MFX2)) [000...127]
These parameters are the same as in Program mode.
(
☞PROG 7.2–1)
However, dynamic modulation (Dmod) of the insert effects
and the “Pan (CC#8), “Send 1 (MFX1),” and “Send 2
(MFX2)” that follow the insert effects will be controlled on
the “Control Channel” (7.2-1b) MIDI channel, unlike in Pro-
gram mode. The control changes used are the same as in
Program mode.
7.2–1b: Control Channel
Control Channel [Ch01...16, G ch, All Rt.]
Specifies the MIDI channel on which dynamic modula-
tion (Dmod) of the insert effects and the “Pan (CC#8),
“Send 1 (MFX1),” and “Send 2 (MFX2)” that follow the
insert effects will be controlled.
The channel number of the timbre routed through this IFX
will be followed by a “*” displayed at the right of Ch01–16.
If two or timbres with different MIDI channel settings are
routed through the same IFX, this parameter specifies which
of these channels will be used to control the effect.
G ch: The global MIDI channel “MIDI Channel” (GLOBAL
2.1–1a) will be used to control the effect. Normally you will
set this to G ch.
All Rt. (All Routed): The channel of any timbre routed
through this effect can be used to control the effect. (Chan-
nels of each routed timbre will be indicated by “*”.)
If the “BUS Select” (7.1–1a) of a timbre for which a
drum program is selected is set to DKit, the MIDI chan-
nel of that timbre will be valid if any IFX1–5 is set to All
Rt., regardless of the “BUS Select” (GLOBAL 5.1–3a)
settings or the settings of the Utility “DrumKit IFX
Patch” (7.1–1b).
■ 7.2–1c: UTILITY
☞ “Write Combination,” “Solo Selected Timbre” (1.1–1c),
“Copy Insert Effect,” “Swap Insert Effect” (7.1–1b), “Select
by Category” (PROG 7.2–1b)
COMBI 7.2: Ed-InsertFX
7.1–2a
7.1–2b
7.2–1a
7.2–1c7.2–1b
