COMBI
1.1
2.12.22.33.13.23.33.44.14.24.34.46.16.26.36.47.17.27.3
67

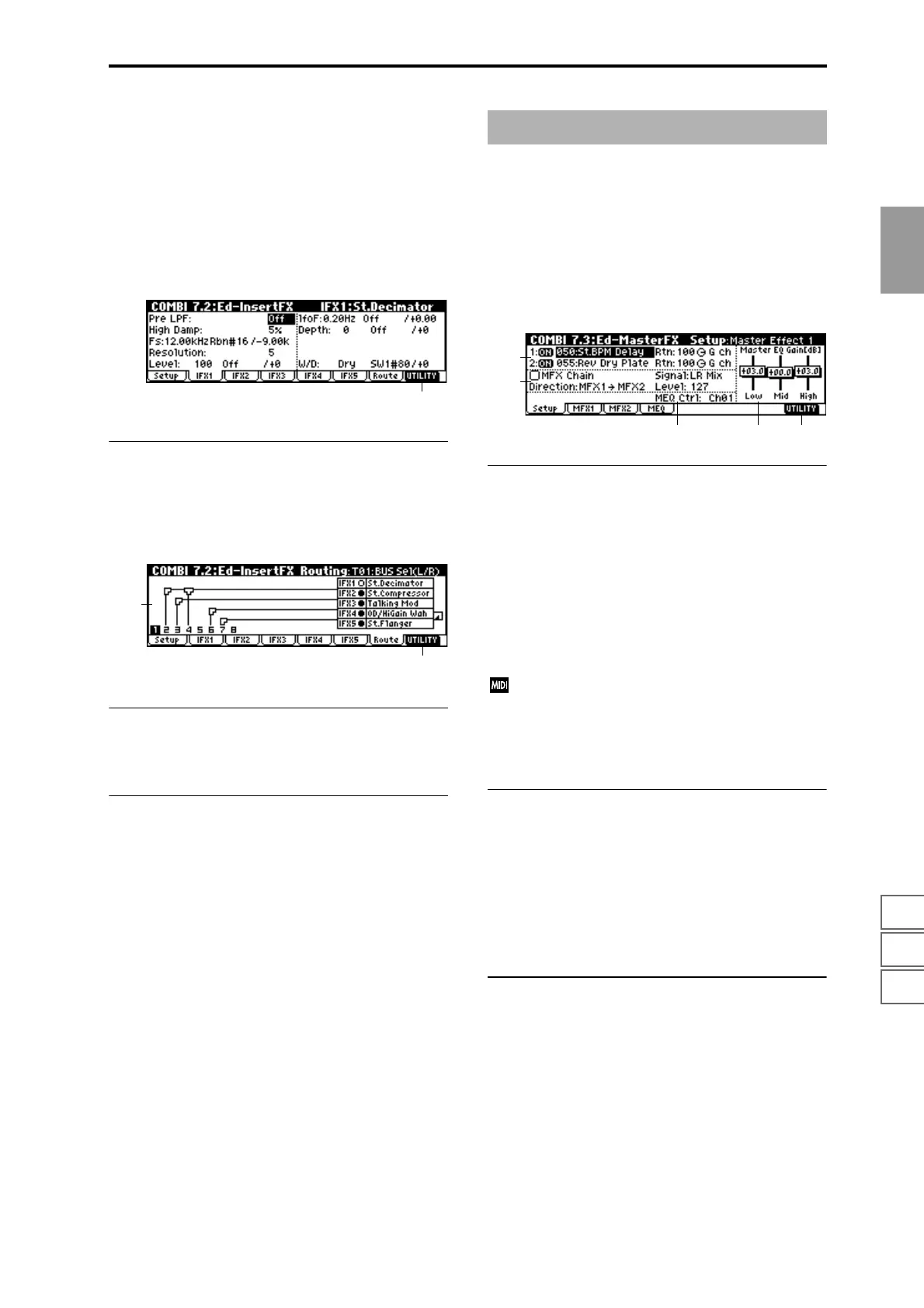

7.2–2: IFX 1 (Insert Effect1)
7.2–3: IFX 2 (Insert Effect2)
7.2–4: IFX 3 (Insert Effect3)
7.2–5: IFX 4 (Insert Effect4)
7.2–6: IFX 5 (Insert Effect5)
These are the parameters for IFX 1, 2, 3, 4, and 5 that were
selected in the Setup page (
☞p.168).
■ 7.2–2(...6)a: UTILITY
☞ “Write Combination” (1.1–1c)
7.2–7: Route (Routing)
7.2–7a: Routing Map
This shows the status of the insert effects. This shows the
same content as the 7.1: BUS, Routing page. (
☞7.1–2a)
■ 7.2–7b: UTILITY
☞ “Write Combination,” “Solo Selected Timbre” (1.1–1c),
“Copy Insert Effect,” “Swap Insert Effect,” “DKit IFX
Patch” (7.1–1b)
☞ For details on insertion effects, refer to p.159 “7. Effect
Guide.”
7.3–1: Setup
Here you can select the type of each master effect, turn it
on/off, and make chain and master EQ settings.
With the exception of “MFX1 Control Ch,” “MFX2 Control
Ch,” and “MEQ Control Ch,” this is the same as in Program
mode. (
☞PROG 7.3: Ed-MasterFX)
7.3–1a: MasterFX Setup
MFX1 On/Off, MFX2 On/Off [Off, ON]
Master Effect 1, 2 [000...089: name]
Rtn 1, 2 (Return 1, 2) [000...127]
These are the same as in Program mode. Refer to “PROG
7.3-1: Setup.” However, the master effects will be controlled
on the “MFX 1, 2 Control Ch” MIDI channel, unlike in Pro-
gram mode.
The control changes used are the same as in Program mode.
MFX 1, 2 Control Ch [Ch01...16, G ch]
Selects the MIDI channel that will control dynamic
modulation (Dmod) for the master effects.
G ch: The global MIDI channel “MIDI Channel” (GLOBAL
2.1-1a) will be used for control. Normally you will set this
parameter to G ch.
7.3–1b: MasterFX Chain
MFX Chain [Off, On]
Direction (Chain Direction)
[MFX1→MFX2, MFX2→MFX1]
Signal (Chain Signal) [LR Mix, L Only, R Only]
Level (Chain Level) [000...127]
These are the same as in Program mode. (☞“PROG 7.3–1:
Setup”)
7.3–1c: Master EQ Gain [dB]
Low [–18.0...+18.0]
Mid [–18.0...+18.0]
High [–18.0...+18.0]
These are the same as in Program mode. (☞PROG 7.3–1:
Setup)
7.2–2a
7.2–7a
7.2–7b
COMBI 7.3: Ed–MasterFX
7.3–1a
7.3–1b
7.3–1e7.3–1c7.3–1d
