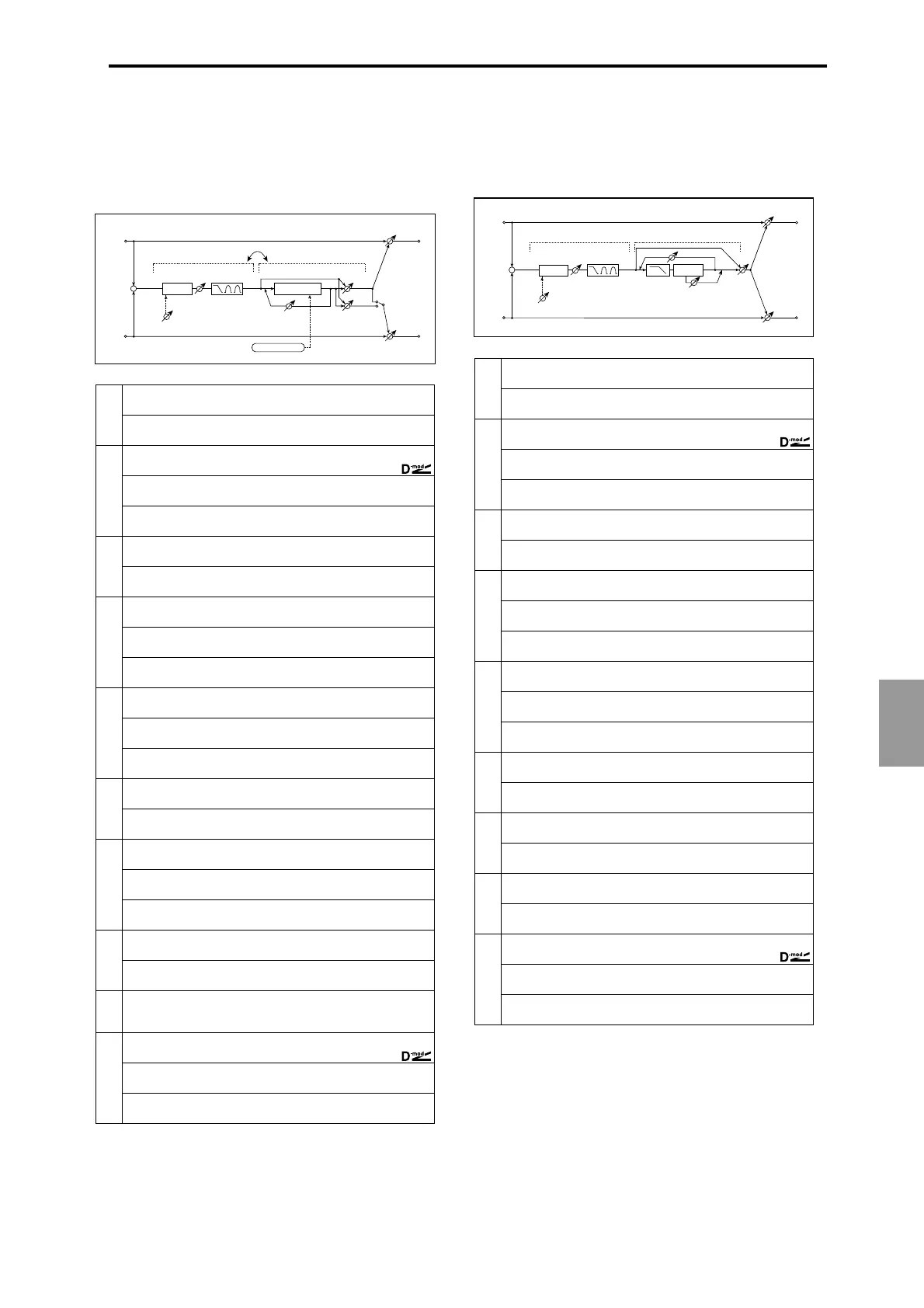

Korg Karma User Manual

Effect
209
081: OD/HG–Phaser
(Overdrive/Hi.Gain – Phaser)
This effect combines a mono-type overdrive/high-gain dis-
tortion and a phaser. You can change the order of the effect
connection.
082: OD/HG–M.Dly
(Overdrive/Hi.Gain – Multitap Delay)
This effect combines a mono-type overdrive/high-gain dis-
tortion and a multitap delay.
a
[OD] Mode (Drive Mode) OverD, Hi-Gain
Switches between overdrive and high-gain distortion
Drive
Sets the degree of distortion
1...100
☞ Fx:006
b
Level (Output Level) 0...50
Sets the overdrive output level
☞ Fx:006,
(Source) Off...Tempo
Selects the modulation source for the overdrive output level
(Amount) –50...+50
Sets the modulation amount of the overdrive output level
c
Lo (Low Cutoff) 20...1.00kHz
Sets the center frequency for Low EQ (shelving type)
G (Gain)
Sets the gain of Low EQ
–18...+18dB
d
M1 (Mid1 Cutoff) 300...10.00kHz
Sets the center frequency for Mid/High EQ 1 (peaking type)
Q
Sets the band width of Mid/High EQ 1
0.5...10.0
☞ Fx:006
G (Gain)
Sets the gain of Mid/High EQ 1
–18...+18dB
e
M2 (Mid2 Cutoff) 500...20.00kHz
Sets the center frequency for Mid/High EQ 2 (peaking type)
Q
Sets the band width of Mid/High EQ 2
0.5...10.0
☞ Fx:006
G (Gain)
Sets the gain of Mid/High EQ 2
–18...+18dB
f
[PHS] LFO (LFO Waveform)
Selects the LFO waveform of the phaser
Tri, Sine
F (LFO Frequency)
Sets the LFO speed
0.02...20.00Hz
g
Manu (Manual)
Sets the frequency to which the effect is applied
0...100
Dep (Depth)
Sets the depth of LFO modulation
0...100
Res (Resonance)
Sets the resonance amount
–100...+100
☞ Fx:023
h
Phs W/D (Phaser Wet/Dry) –Wet...–2:98, Dry, 2:98...Wet
Sets the phaser effect balance
☞ Fx:010, 023
Out (Output Mode) Normal, Wet Inv
Selects the phaser output mode
☞ Fx:067
i
[Routing] OD → PHS, PHS → OD
Switches the order of the overdrive and phaser connection
☞ Fx:067
j
W/D (Wet/Dly) Dry, 1:99...99:1, Wet
Sets the balance between the effect and dry sounds
(Source) Off...Tempo
Selects the modulation source of the effect balance
(Amount)
Sets the modulation amount of the effect balance
–100...+100
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Stereo Out / Dry: Stereo In - Stereo Out
+
Routing
Overdrive / Hi-Gain
3 Band PEQ
Output Level
Mode: Overdrive / Hi-Gain
Drive
Driver
Phaser
Phaser
Resonance
LFO: Tri / Sine
Phaser Wet / Dry
Normal
Wet Invert
Output Mode
–
+
a
[OD] Mode (Drive Mode) OverD, Hi-Gain
Switches between overdrive and high-gain distortion
Drive
Sets the degree of distortion
1...100
☞ Fx:006
b
Level (Output Level) 0...50
Sets the overdrive output level
☞ Fx:006,
(Source) Off...Tempo
Selects the modulation source for the overdrive output level
(Amount) –50...+50
Sets the modulation amount of the overdrive output level
c
Lo (Low Cutoff) 20...1.00kHz
Sets the center frequency for Low EQ (shelving type)
G (Gain)
Sets the gain of Low EQ
–18...+18dB
d
M1 (Mid1 Cutoff) 300...10.00kHz
Sets the center frequency for Mid/High EQ 1 (peaking type)
Q
Sets the band width of Mid/High EQ 1
0.5...10.0
☞ Fx:006
G (Gain)
Sets the gain of Mid/High EQ 1
–18...+18dB
e
M2 (Mid2 Cutoff) 500...20.00kHz
Sets the center frequency for Mid/High EQ 2 (peaking type)
Q
Sets the band width of Mid/High EQ 2
0.5...10.0
☞ Fx:006
G (Gain)
Sets the gain of Mid/High EQ 2
–18...+18dB
f
[DLY] T1 (Tap1 Delay)
Sets the Tap1 delay time
0...680ms
T2 (Tap2 Delay)
Sets the Tap2 delay time
0...680ms
g
T1 Level (Tap1 Level)
Sets the Tap1 output level
0...100
☞ Fx:045
T2 Fb (Tap2 Feedback)
Sets the Tap2 feedback amount
–100...+100
h
Dly W/D (Delay Wet/Dry) Dry, 2:98...98:2, Wet
Sets the multitap delay effect balance
HiDamp (High Damp)
Sets the damping amount in the high range
0...100%
☞ Fx:043
i
W/D (Wet/Dly) Dry, 1:99...99:1, Wet
Sets the balance between the effect and dry sounds
(Source) Off...Tempo
Selects the modulation source of the effect balance
(Amount)
Sets the modulation amount of the effect balance
–100...+100
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
+
Multitap Delay
Feedback
High Damp
Delay
(2)
(1)
Mt.Dly Wet / Dry
Overdrive / Hi-Gain
3 Band PEQ
Output Level
Mode: Overdrive / Hi-Gain
Drive
Driver
