Effect
171
a: Wah
The Wah parameter switches the wah effect on/off.
a: (Sw)
This parameter sets how the wah effect is switched on and off via
the modulation source.
When “Sw” = Mmnt (Moment), the wah effect is usually turned
off. It is turned on only when you press the pedal or operate the
joystick.
When a value for the modulation source is less than 64,
“off” speed is selected, and when the value is 64 or higher,
“on” is selected.
When “(Sw)” = Tggl (Toggle), the wah effect is switched between
on and off each time you press the pedal or operate the joystick.
The switch will be turned on/off each time the value of the
modulation source exceeds 64.
b: SweepRng, b: Src
This parameter sets the sweep range of the wah center frequency.
A negative value will reverse the direction of sweep. The wah cen-
ter frequency can be controlled by the modulation source speci-
fied in the “Src” parameter.
d: Drive, e: Level
The degree of distortion is determined by the level of input signal
and the setting of “Drive”. Raising the “Drive” setting will cause
the entire volume level to increase. Use the “Level” parameter to
adjust the volume level. The “Level” parameter uses the signal
level input to the 3-Band EQ. If clipping occurs at the 3-Band EQ,
adjust the “Level” parameter.
d: Pre Low-cut
Cutting the signal in the low range before it is input to the Distor-
tion will create a sharp distortion.
g: Q, h: Q
These parameters set the bandwidth of each equalizer. The higher
the value, the narrower the band becomes.

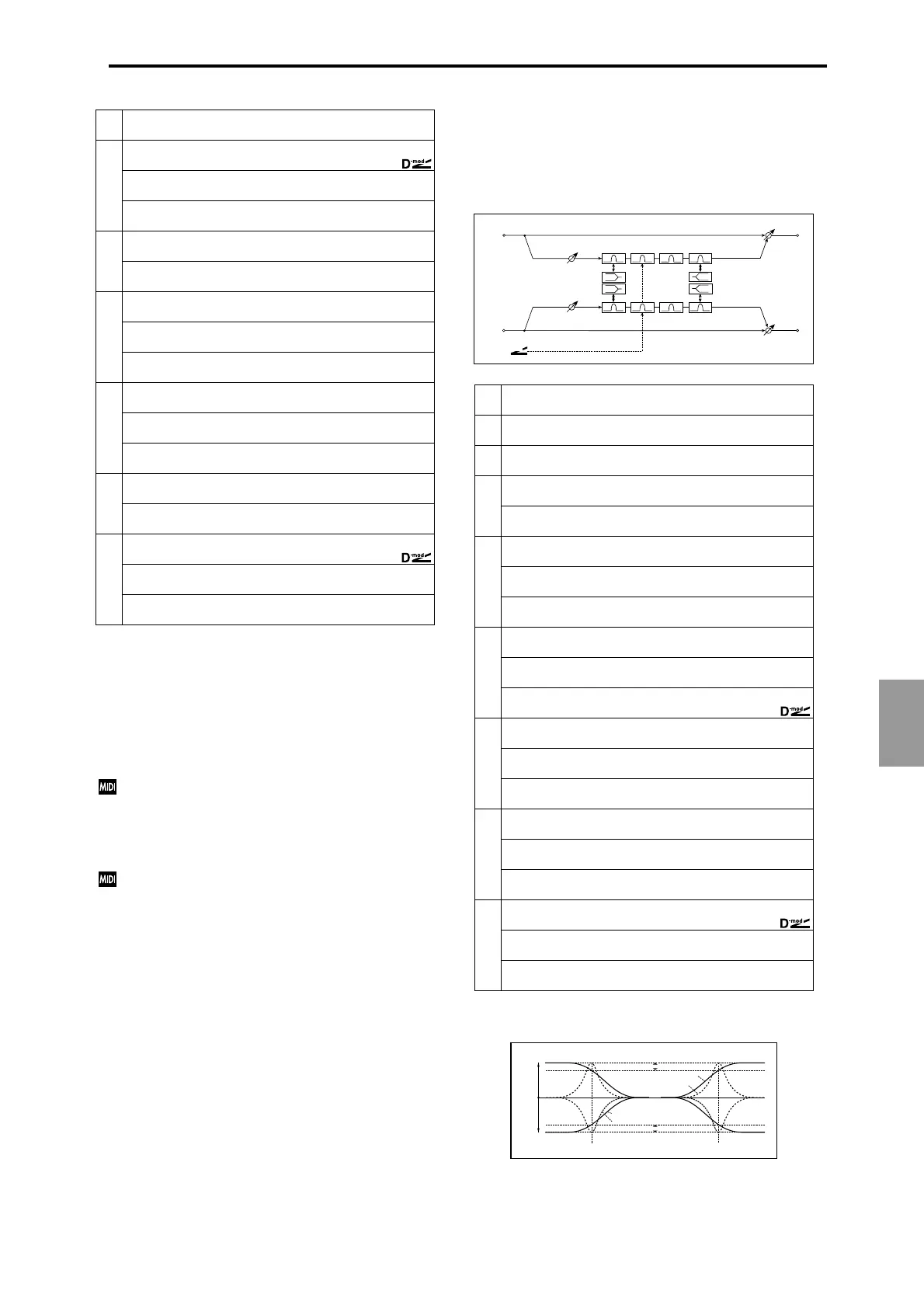

007: St.Para.4EQ
(Stereo Parametric 4-Band EQ)
This is a stereo 4-band parametric equalizer. You can select
peaking type or shelving type for Band 1 and 4. The gain of
Band 2 can be controlled by dynamic modulation.
b: B1 Type, c: B4 Type
Selects a filter type for Band 1 and 4.
d
Pre Low-cut 0...10
Sets the low range cut amount of the distortion input
☞
e
Level (Output Level)
Sets the output level
0...50
☞,
(Source)
Selects the modulation source for the output level
Off...Tempo
(Amount)
Sets the modulation amount of the output level
–50...+50
f
Lo (Low Cutoff ) 20...1.0kHz
Sets the center frequency for Low EQ (shelving type)
G (Gain)
Sets the gain of Low EQ
–18...+18dB
g
M1 (Mid1 Cutoff) 300...10.00kHz
Sets the center frequency for Mid/High EQ 1 (peaking type)
Q
Sets the band width of Mid/High EQ 1
0.5...10.0
☞
G (Gain)
Sets the gain of Mid/High EQ 1
–18...+18dB
h
M2 (Mid2 Cutoff) 500...20.00kHz
Sets the center frequency for Mid/High EQ 2 (peaking type)
Q
Sets the band width of Mid/High EQ 2
0.5...10.0
☞
G (Gain)
Sets the gain of Mid/High EQ 2
–18...+18dB
i
Direct Mix 0...50
Sets the amount of the dry sound mixed to the distortion
SpSim (Speaker Simulation)
Switches the speaker simulation on/off
Off, On
j
W/D (Wet/Dly) Dry, 1:99...99:1, Wet
Sets the balance between the effect and dry sounds
(Source) Off...Tempo
Selects the modulation source of the effect balance
(Amount)
Sets the modulation amount of the effect balance
–100...+100
a
Tr im
Sets the input level
0...100
b
B1 Type (Band1 Type) Peaking, Shelving-Low
Selects the type of Band 1
☞
c
B4 Type (Band4 Type) Peaking, Shelving-High
Selects the type of Band 4
☞
d
B2 Dyn.G Src (Band2 Dynamic Gain Source)
Selects the modulation source of the Band 2 gain
Off...Tempo
☞
(Amount)
Sets the modulation amount of Band 2 gain
–18...+18dB
☞
e
B1 (Band1 Cutoff)
Sets the center frequency of Band 1
20...1.00kHz
Q
Sets the bandwidth of Band 1
0.5...10.0
☞ Fx:006
G (Gain)
Sets the gain of Band 1
–18.0...+18.0dB
f
B2 (Band2 Cutoff)
Sets the center frequency of Band 2
50...10.00kHz
Q
Sets the bandwidth of Band 2
0.5...10.0
☞ Fx:006
G (Gain)
Sets the gain of Band 2
–18.0...+18.0dB
☞,
g
B3 (Band3 Cutoff)
Sets the center frequency of Band 3
300...10.00kHz
Q
Sets the bandwidth of Band 3
0.5...10.0
☞ Fx:006
G (Gain)
Sets the gain of Band 3
–18.0...+18.0dB
h
B4 (Band4 Cutoff)
Sets the center frequency of Band 4
500...20.00kHz
Q
Sets the bandwidth of Band 4
0.5...10.0
☞ Fx:006
G (Gain)
Sets the gain of Band 4
–18.0...+18.0dB
i
W/D (Wet/Dly) Dry, 1:99...99:1, Wet
Sets the balance between the effect and dry sounds
(Source) Off...Tempo
Selects the modulation source of the effect balance
(Amount)
Sets the modulation amount of the effect balance
–100...+100
Left
Right
Wet / Dry
Wet / Dry
Stereo In - Stereo Out
Band1
Band2
Band3
Band4
PEQ
PEQ PEQ PEQ
LEQ
LEQ
HEQ
HEQ
PEQ
PEQ PEQ PEQ
Trim
Trim
D
-mod
3dB
3dB
Band1 Cutoff
Band4 Cutoff
0dB
+Gain
–Gain
Band1 Type=Peaking
Band1 Type=Shelving Low
Band4 Type=Peaking
Band4 Type=Shelving High
Parametric 4EQ - Band1, Band4 Type
