2. Routing
You can use up to two channels (MFX1 and 2) for the Master
Effects in any mode. If you are not using any Insert Effects in
any mode, the Master Effects send levels are determined by
the “Send Level 1/2 (MFX2)” parameters specified indepen-
dently for the oscillators (Program), timbres (Combination),
tracks (Sequencer and Song Play). For example, you can
apply substantial reverberation to a piano sound assigned to
the timbre and tracks, a small amount of reverberation to the
strings sound, and no reverberation to the bass sound. If you
are using the Insert Effects, set the “S1 (Send1(MFX1))” and
“S2 (Send2(MFX2))” parameters for the post-IFX signals.

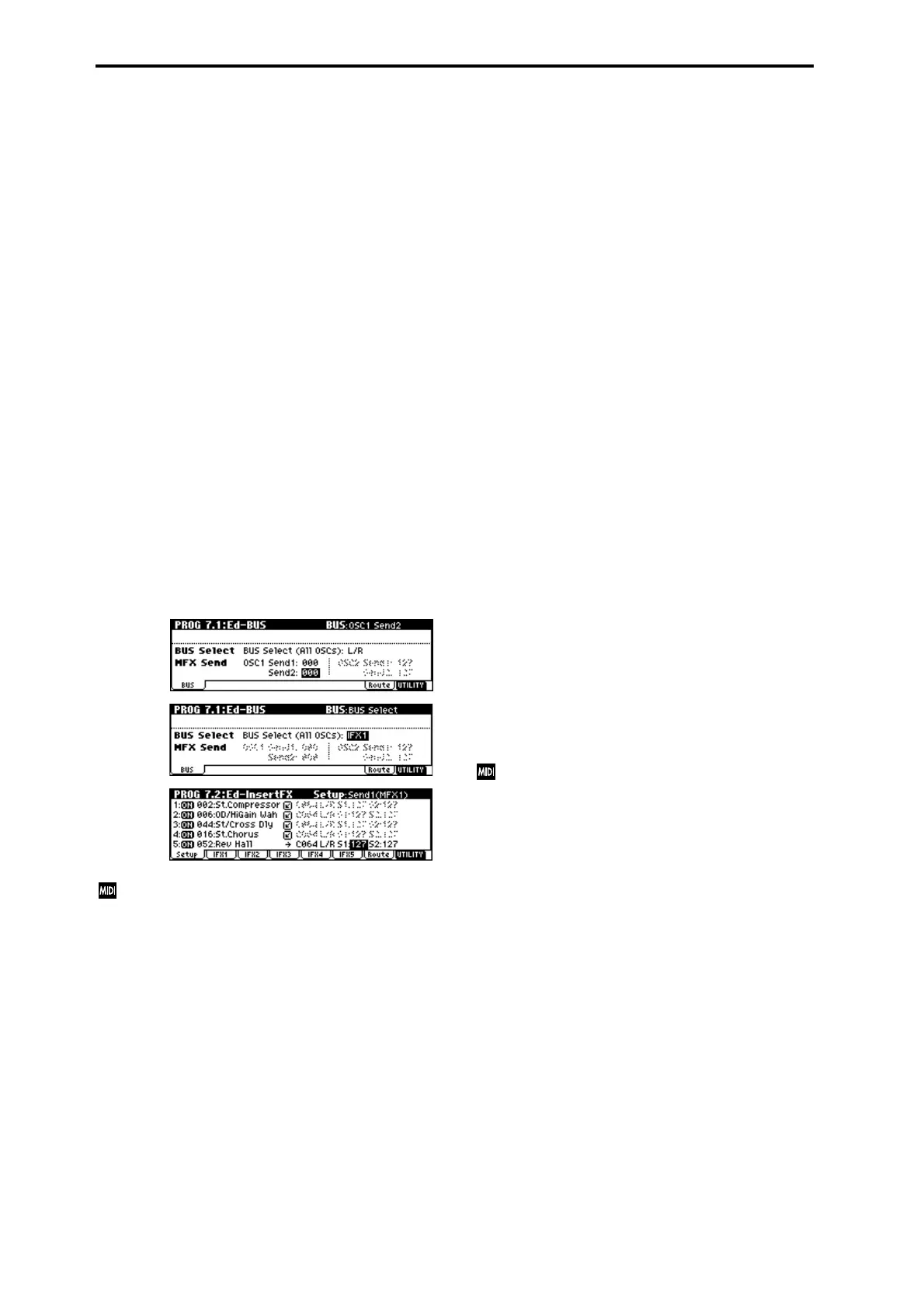

2–1. Program mode
The PROG 7.1–1a MFX Send parameters “Send 1” and
“Send 2” or the PROG 7.2–1a “S1 (Send 1 (MFX1))” and “S2
(Send 2 (MFX2))” parameters that follow IFX1–5 determine
the send levels to the master effects.
The PROG 7.1–1a MFX Send “Send 1” and “Send 2” settings
are used when “BUS Select” is set to L/R or Off. Each can be
set for oscillator 1 and 2.
The PROG 7.2–1a “S1 (Send 1 (MFX1))” and “S2 (Send 2
(MFX2))” settings that follow IFX1–5 are used when “BUS
Select” is set to IFX1–5. If the insert effects are chained (con-
nected in series), the “S1 (Send 1 (MFX1))” and “S2 (Send 2
(MFX2))” that follows the last-connected IFX will be used.
If “BUS Select” is 1, 2 or 1/2, the oscillator will be directly
output to AUDIO OUTPUT (INDIVIDUAL)1, 2 (
☞”Individ-
ual Output”). Send levels 1/2 will be ignored, and the mas-
ter effects will not be applied.
Send Level 1 can be controlled by MIDI Control Change
CC#93 and Send Level 2 can be controlled by MIDI
Control Change CC#91 on MIDI Global channel “MIDI
Channel” (GLOBAL 2.1–1a). At this time, the actual
send level uses the value of the Send 1 and 2 settings for
Oscillators 1 and 2, multiplied by the Send Level 1 and
2 values received via MIDI.
If the program “Oscillator Mode” (PROG 2.1–1a) is Drums,
the “USE DKit Setting” (PROG 7.1–1b) will be used.
If this is checked, the setting for each key of the selected
drum kit will be used. The drum instrument for a key whose
drum kit “BUS (Bus Select)” (GLOBAL 5.1–3a) parameter is
set to L/R or Off will use the “S1 (Send 1 (MFX1))” and “S2
(Send 2 (MFX2))” (GLOBAL 5.1–3a) settings. If IFX1–5 is
used, the “S1 (Send 1 (MFX1))” and “S2 (Send 2 (MFX2))”
(PROG 7.2–1a) after passing through IFX1–5 will be used.
If this is not checked, the “Send 1” and “Send 2” (PROG 7.1–
1a, MFX Send) settings or the “S1 (Send 1 (MFX1))” and “S2
(Send 2 (MFX2))” (PROG 7.2–1a) settings after passing
through IFX1–5 will be used for all drum instruments. (This
is the same as when “Oscillator Mode” is Single or Double.)
2–2. Combination, Sequencer, Song Play mode
Use “S1 (Send 1 (MFX1))” and “S2 (Send 2 (MFX2))” (7.1–
1(2)a) for timbres (Combination) and tracks (Sequencer,
Song Play) to set the Send level for each timbre and track. As
with Program mode, if “BUS Select” is set to L/R or Off, “S1
(Send 1 (MFX1))” and “S2 (Send 2 (MFX2))” become effec-
tive. In this case, the actual send level will be the setting of
the program (PROG 7.1-1a) used by the timbre/track multi-
plied by the send level you specify here.
– Send level –
For example, if a Program’s “OSC1 Send1” is set to 127,
“Send2” set to 064, “OSC2 Send1” set to 064, “Send2” set to
127, a Combination’s “Send1” set to 064, and “Send2” set to
127, the actual send levels of the combination are calculated
as follows:
OSC1 Send1=127 (100%)*064(50%)=064(50%)
OSC1 Send2=064 (50%)*127(100%)=064(50%)
OSC2 Send1=064 (50%)*064(50%)=032(25%)
OSC2 Send2=127 (100%)*127(100%)=127(100%)
If IFX1–5 is selected for “BUS Select”, use the “S1
(Send1(MFX1))” and “S2 (Send2(MFX2))” parameters for the
post-IFX signals.
If 1, 2 or 1/2 is selected instead, these settings are ignored
and the Master Effect is not applied.
Send Level 1 responds to MIDI Control Change CC#93,
and Send2 Level responds to MIDI Control Change
CC#91. If “Send1 (MFX1)” and “Send2(MFX2)” for each
timbre/track are effective, the parameter will be con-
trolled on the MIDI channels set for the corresponding
timbres and tracks. If the “Send1(MFX1)” and
“Send2(MFX2)” parameters for the post-IFX1–5 signals
are effective, they can be controlled on the MIDI chan-
nels assigned to IFX1–5.
