Precision Seed Drills
106
MAXIMA 2
Instructions for work

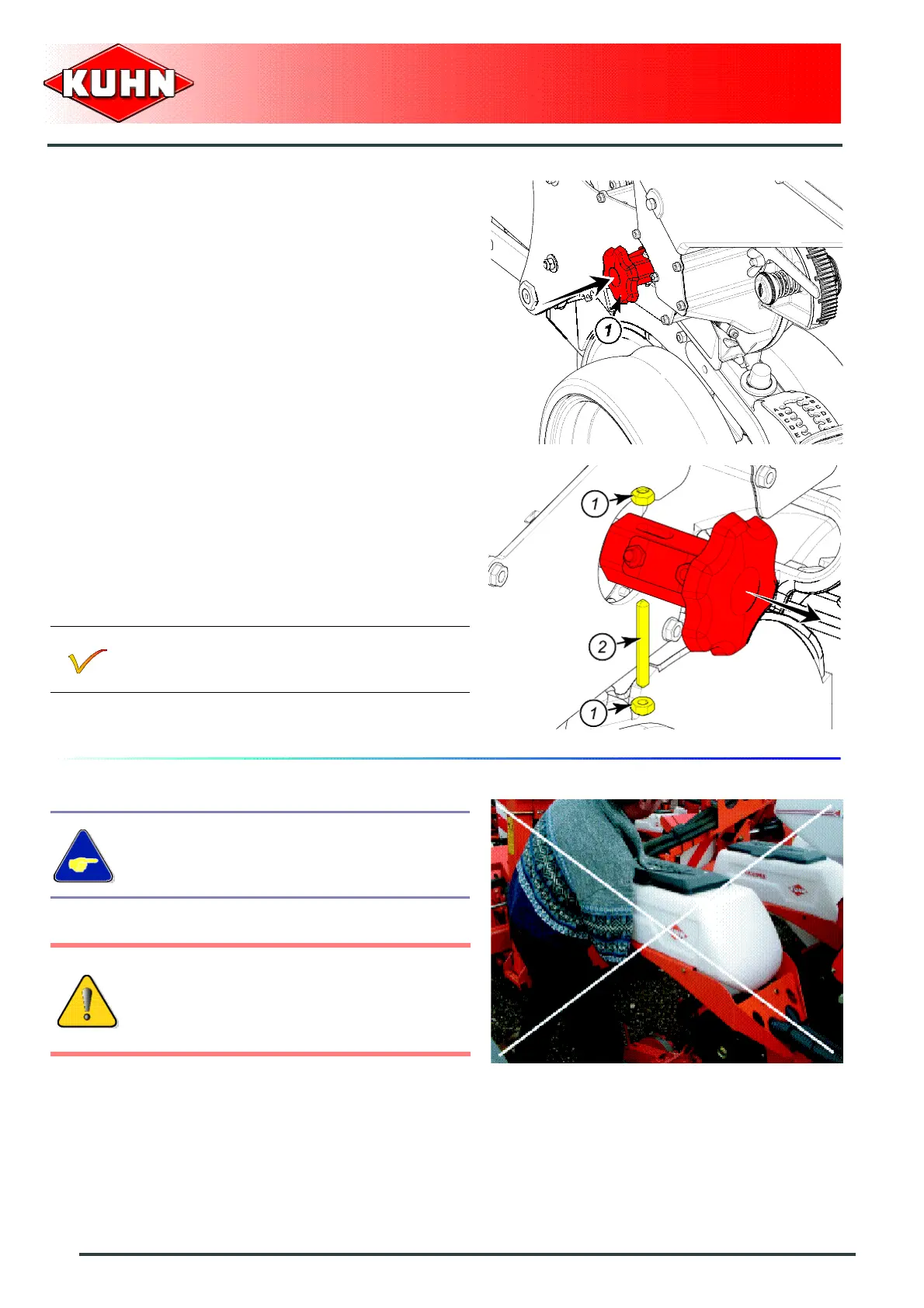

To engage a unit by hand, push and turn slightly knob (1)
to facilitate the unit engagement.
Seeding unit safety
When an incident occurs on one of the sowing units, the
safety bolt (2) shears causing the metering unit to stop.
- Disengage the unit.
- Use a punch to remove the remaining shear bolt part.
- Replace the components.
• Torque: 10 daN m (74 lbf ft).
Seeding unit high and low position
Nuts (1) Part no. 80200640.
Safety bolt (2) Part no. N03273A0.
Never lift a seeding unit using the hopper
assembly in order not to damage its link with
the distribution.
For safety reasons forbidding to handle
loads exceeding 25 daN (56.20 lbf) by hand,
the seeding unit must be adjusted with the
machine coupled to the tractor and in raised
position.
