KUHN MAXIMA 2 - Replacing the Scraper Plates

Precision Seed Drills
130
MAXIMA 2
Optional equipment
When the use of the wheel is no longer required or
unadequate, it can be removed without removing the
other equipments.

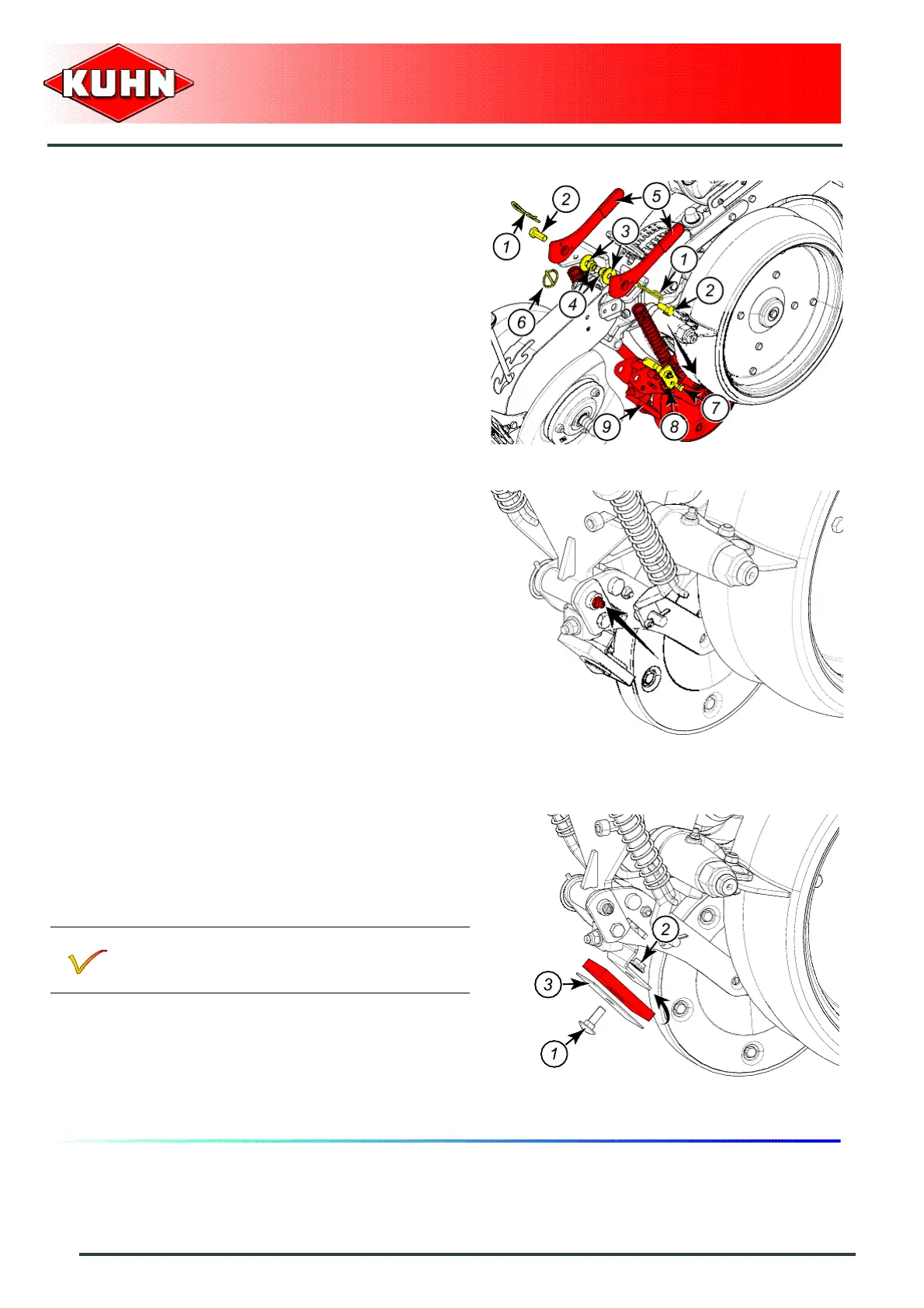

- Remove R-clips (1).
- Remove screws (2), nuts (4) and washers (3).
- Remove the 2 handles (5).
- Remove lynch pin (6).
- Remove screw (7) and pin (8).
- Remove wheel (9).
Repeat procedure on each seeding unit.

Maintenance
Greasing (Every 50 hours)
- The tamping wheel pivot pin.
Replacing the scraper plates
- Remove bolt (1) and nut (2).
- Remove plate (3).
- Turn plate over or replace it if necessary.
- Install plate (3).
- Reinstall bolt (1) and nut (2).
Scraper plate Part no. K3600550.
