KUHN MAXIMA 2 - Adjusting the Press Wheel Offset

Precision Seed Drills
138
MAXIMA 2
Optional equipment

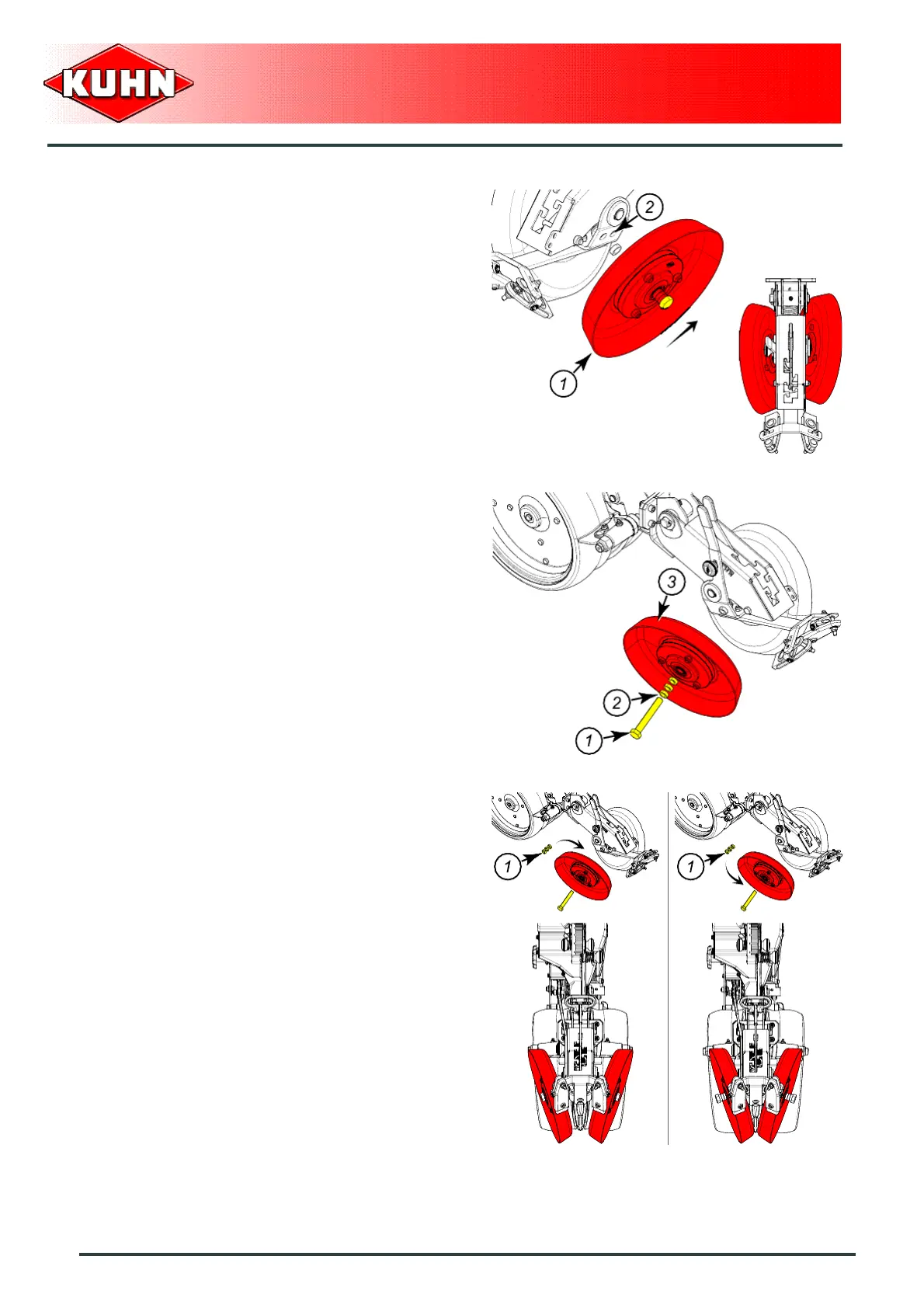

Adjusting the press wheel offset
To prevent stones from getting jammed between the
press wheels, the right wheel must be slightly offset
towards the front.
- Remove right press wheel (1).
- Position right press wheel (1) in hole (2).
Adjusting the spacing between the press
wheels
- Remove nut (1).
- Remove the struts (2).
- Remove wheel (3).
- Place one or several spacers (1) on the inside to
increase spacing between the press wheels.
- Place one or several spacers (1) on the outside to
reduce spacing between the press wheels.
- Reinstall nut (1).
Repeat procedure on the other press wheel.
