Precision Seed Drills
78
MAXIMA 2
Instructions for work
Adjusting the markers
The side markers are designed to provide marking in the
tractor center or wheel track.

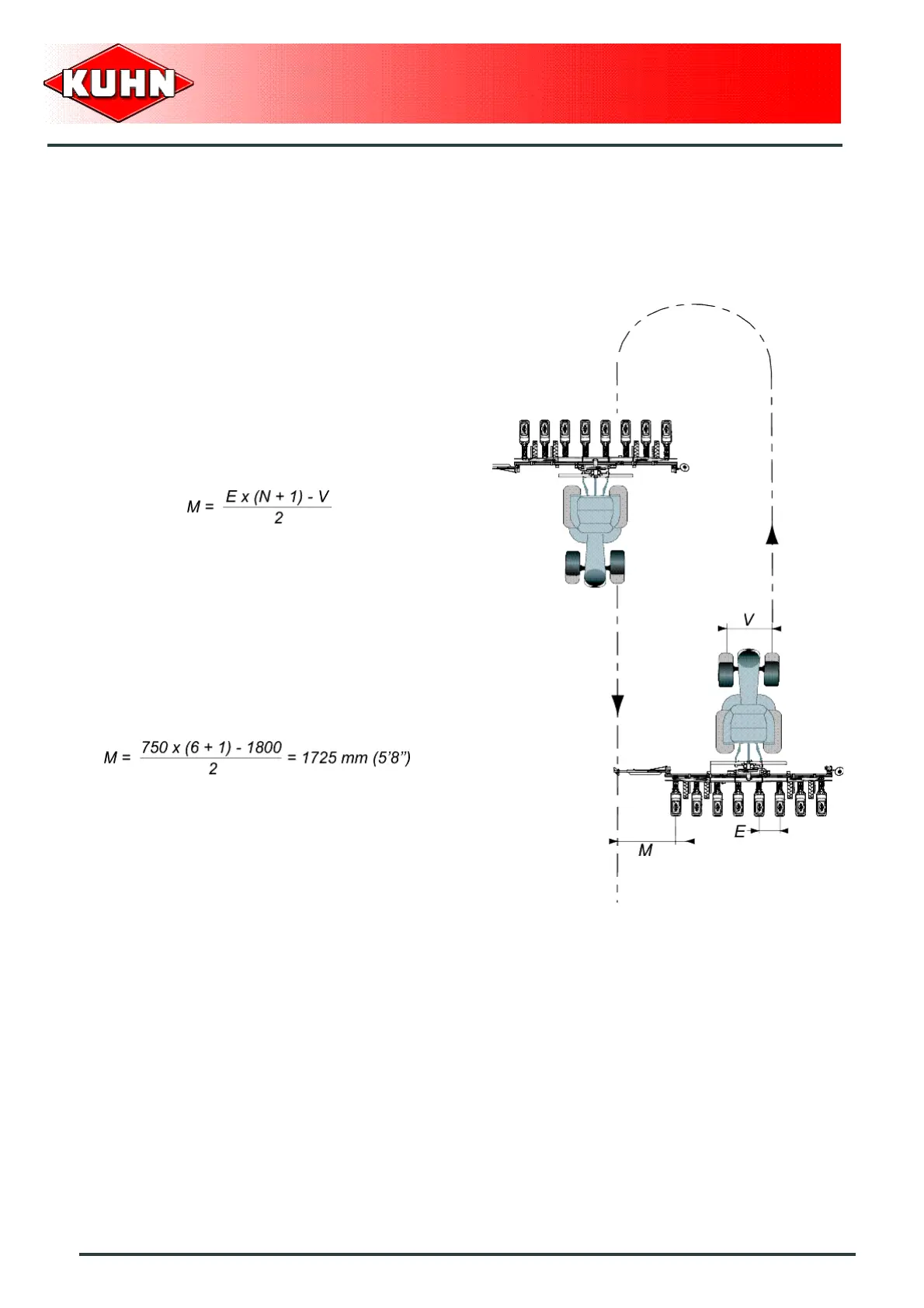

Marking to the tractor wheel
Calculating the distance (M):
- M: distance between the marker disk and the outer
seeding unit.
- N: Number of rows.
- E: distance between rows.
- V: Tractor wheel track.
Example:
N = 6 rows
E = 750 mm (2.5’’)
V = 1800 mm (5’11’’)
