Precision Seed Drills
56
MAXIMA 2
Putting into service

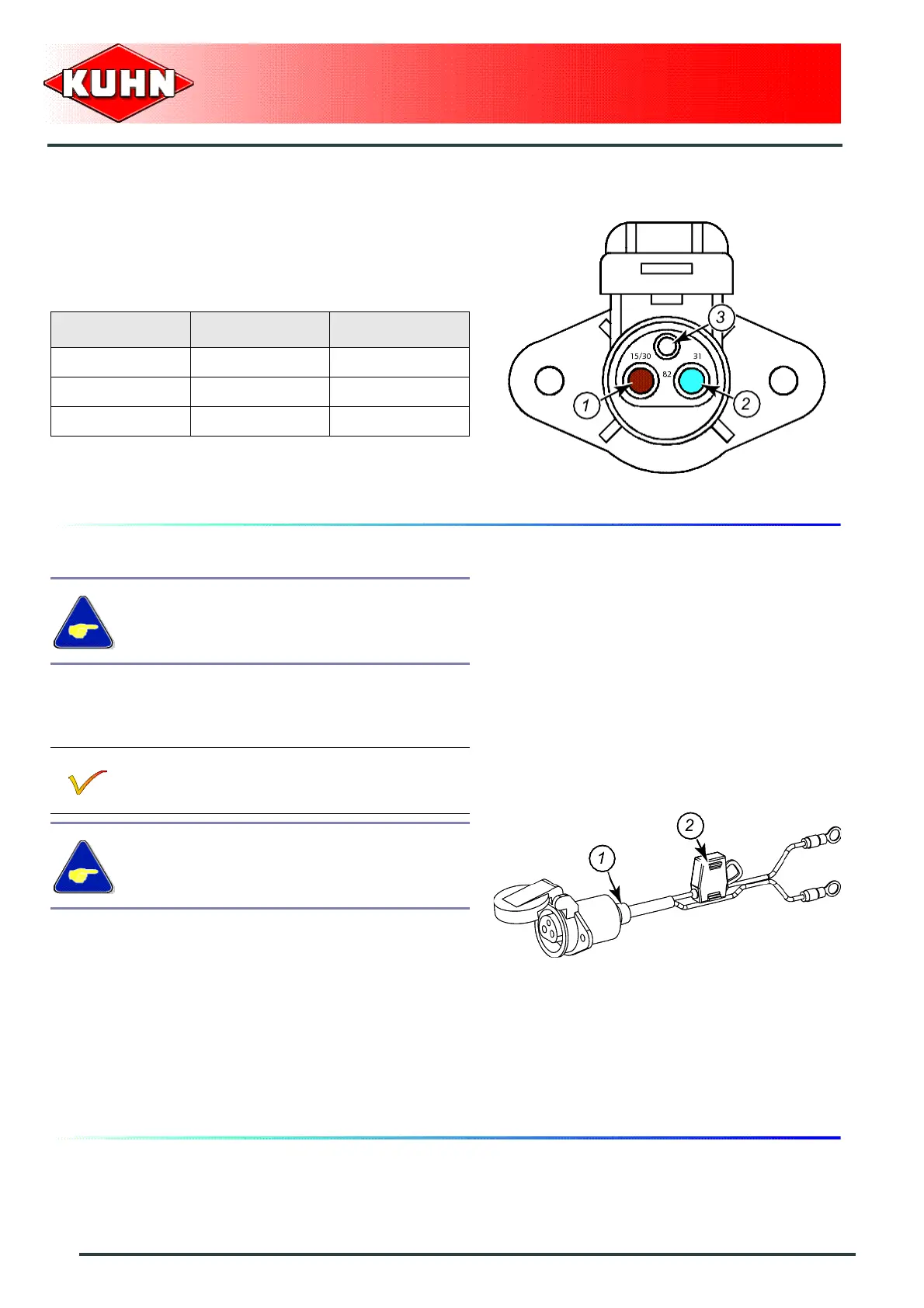

3 pin plug
The box is energized by the tractor's 3-pin socket(DIN
9680, ISO 12369) or the battery power cable supplied.
Description of the connection
The control boxes are connected to:
- A tractor 3-pin socket.
- a supplied battery power cable.
If the tractor is not fitted with a battery isolation switch:
Connect the wiring harness directly to the battery
terminals respecting the polarities.
If the tractor is fitted with a battery isolation switch:
Connect the wiring harness to the battery isolation
switch output.
The wiring harness is fitted with a 15 Amp ATO type
fuse: Part no. 82333017(2).
Pin Wire color Function
15 / 30 (1) Brown + 12 Volt
31 (2) Blue Earth
82 (3) - -
Never connect battery charger or perform
welding tasks without having previously
disconnected the control box.
To use the machine with another tractor, a
second tractor-side power harness can be
ordered under p/n 83233001.
Do not connect the wiring harness to the
starter connections.
Check that the connectors are in a good
condition and clean.
+
-
