Precision Seed Drills
170
MAXIMA 2
Optional equipment
Adjusting the spline opening

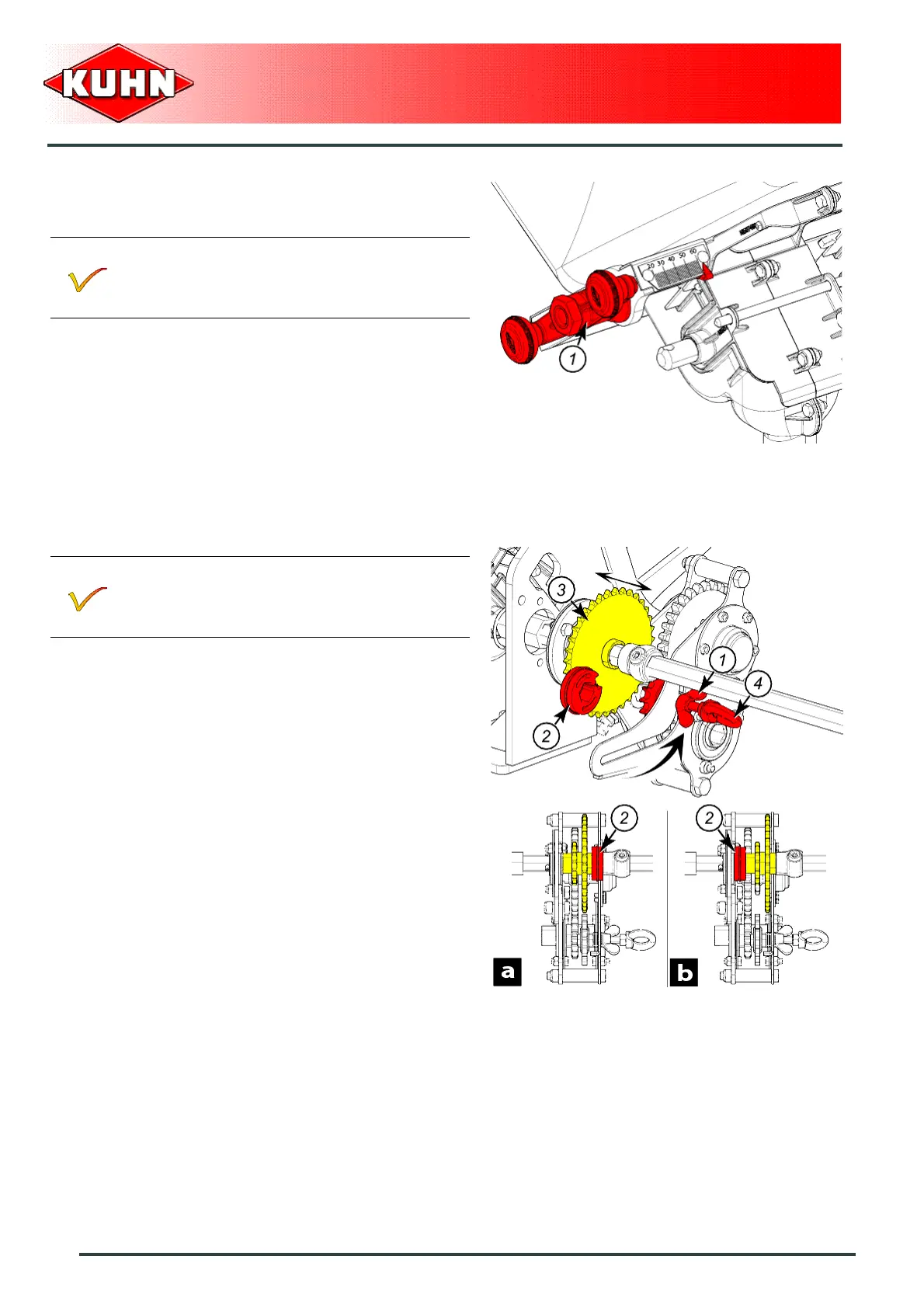

The spline opening is adjusted by means of crank (1).
Adjusting the distribution shaft rotational speed
- Loosen wing nut (1).
- Pivot tensioner (4).
- Remove spacer (2).
- Move the double gearwheel (3) and chain to the
required position:
• Position (a): Dristribution shaft speed of 13 revs for
a travel of 100 m (328’).
• Position (b): Dristribution shaft speed of 30 revs for
a travel of 100 m (328’).
- Reinstall wedge (2) according to double gearwheel (3)
position.
- Pivot tensioner (4).
- Tighten the wing nut (1).
Refer to adjustment chart to dermtermine the
spline opening adjustment index according to
the required application rate and the spacing
between the seed drill rows.
Refer to the adjustment chart to determine the
drive gearwheel direction of mount according to
the required application rate and the spacing
between the seed drill rows.
