KUHN MAXIMA 2 - Belt Tension Adjustment

Maintenance and storage
Precision Seed Drills
MAXIMA 2
201

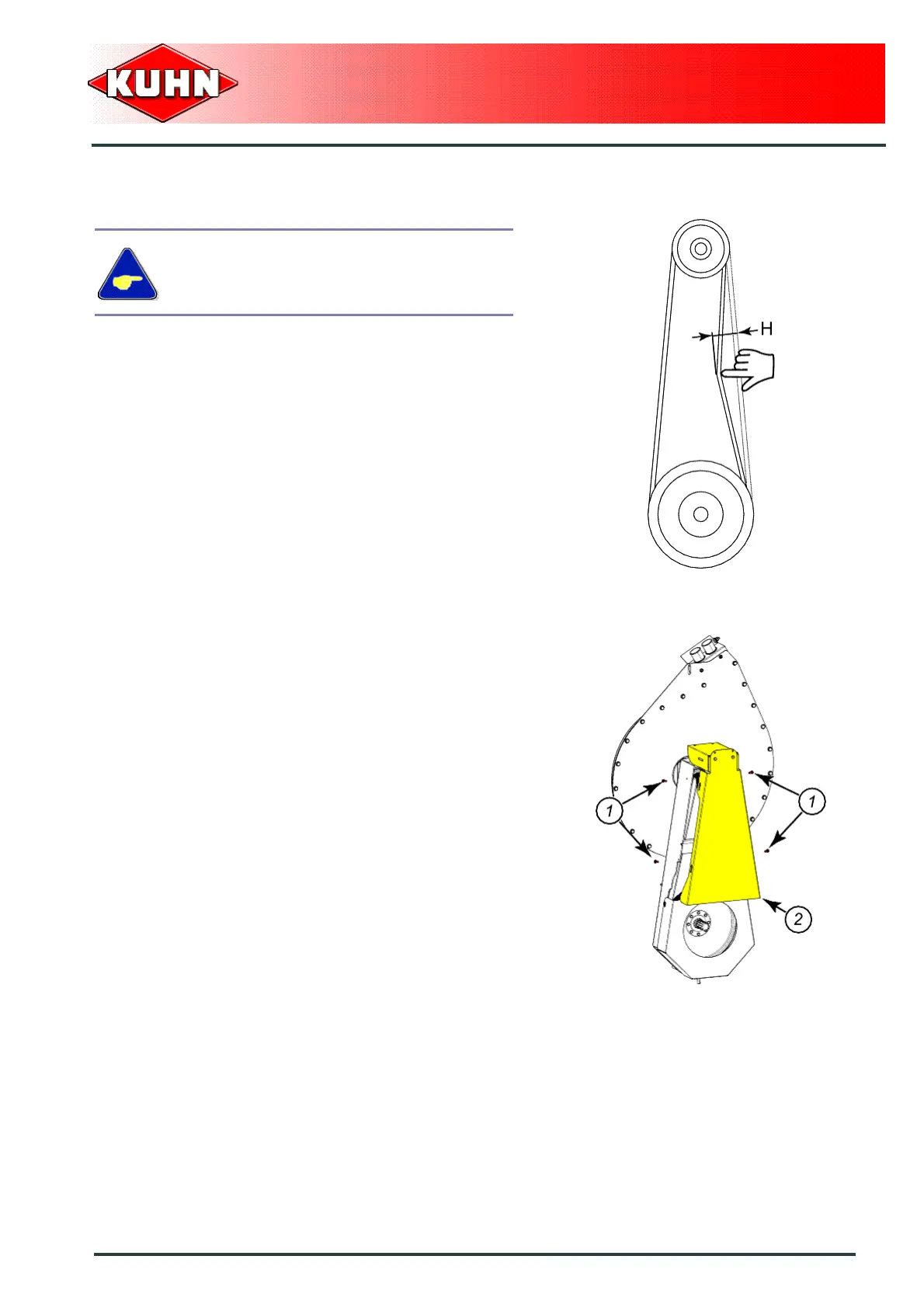

Belt tension
- Exert a force of 7 daN on the belt.
- The deflection (H) must not exceed 20 mm (0.78").
For 4.40 m to 6 m (14’4’’ - 19’8’’) models:
Procedure to re-tension the belt:
- Remove 4 bolts (1).
- Remove guard (2).
Regularly check belt tension and in particular
during the first hours of use.
