KUHN MAXIMA 2 - Setting the Seed Row Spacing

Putting into service
Precision Seed Drills
MAXIMA 2
65
Setting the seed row spacing

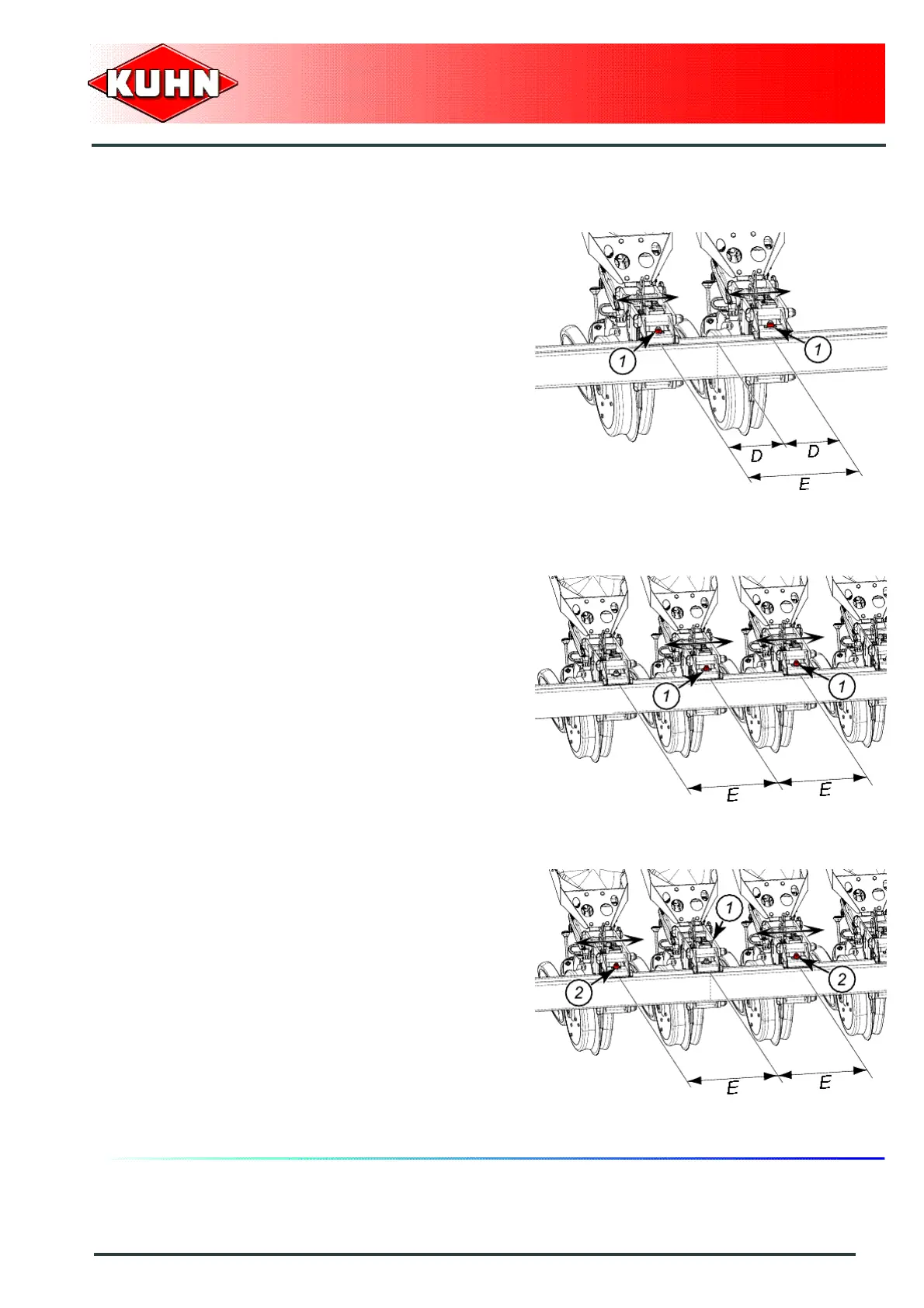

For machine with 8 - 12 - 18 rows.
Adjusting the central sowing units:
- Raise machine using tractor lift.
- Measure the frame middle.
- Loosen nuts (1).
- Adjust position of the two central sowing units in order
to obtain a spacing (D) with regards to the frame
middle equalling half of spacing (E) required between
rows.
- Tighten nuts (1).
• Torque: 13 daN m (96 lbf ft).
Setting sowing components:
- Loosen nuts (1).
- Adjust position of the seeding units to obtain required
spacing (E) between rows.
- Tighten nuts (1).
• Torque: 13 daN m (96 lbf ft).
Repeat procedure on each seeding unit.
For machine with 9 - 11 rows.
Setting sowing components:
- Raise machine using tractor lift.
- Measure the frame middle.
- Check that central unit (1) is positioned in the frame
middle.
- Loosen nuts (2).
- Adjust position of the seeding units to obtain required
spacing (E) between rows.
- Tighten nuts (2).
• Torque: 13 daN m (96 lbf ft).
Repeat procedure on each seeding unit.
