Optional equipment
Precision Seed Drills
MAXIMA 2
169

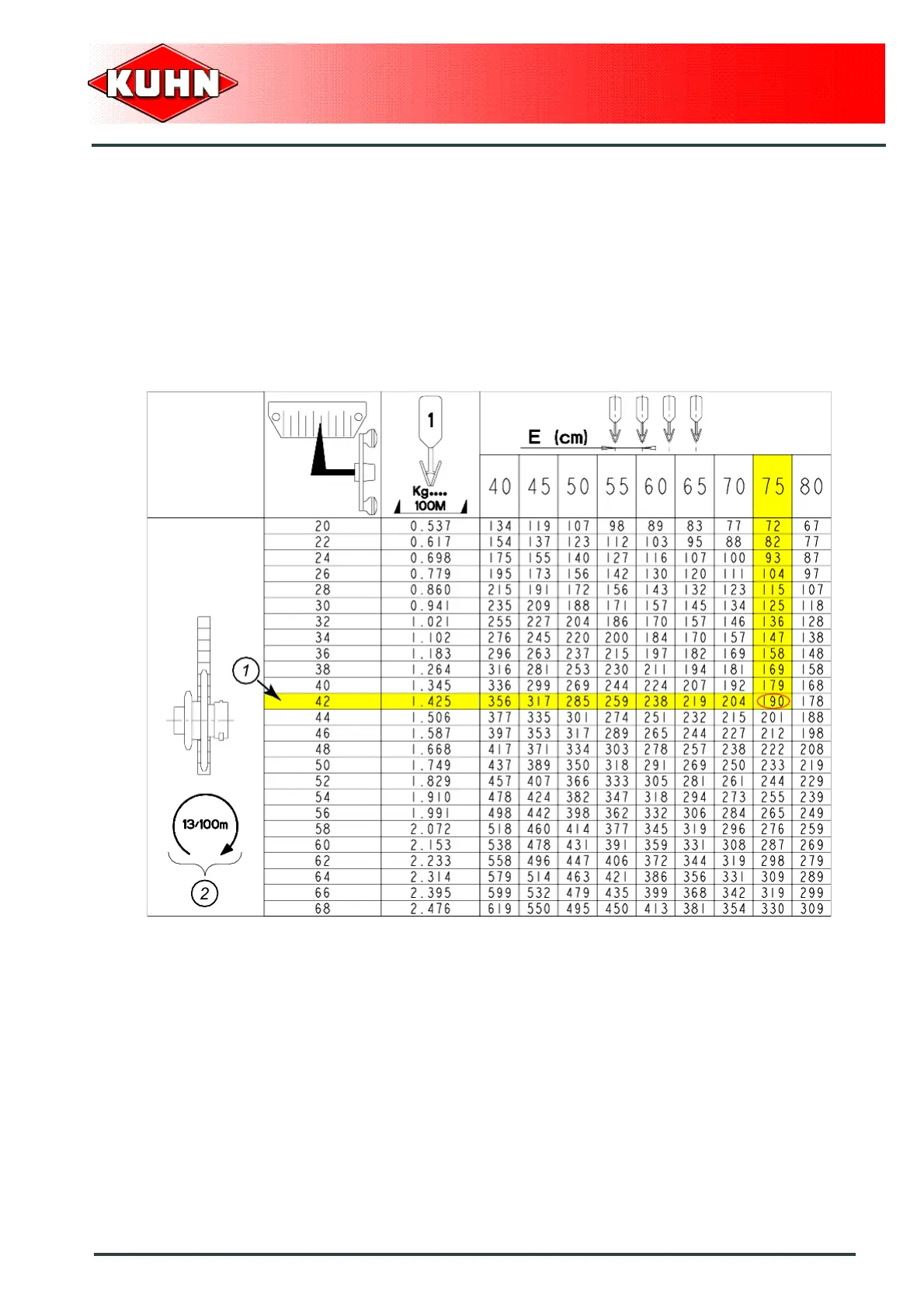

Reading the chart
Select the required application rate in the column
corresponding to the spacing between the seed drill
rows.
Example:
Seed row spacing: 75 cm (2’5’’).
Required application rate: 190 kg (419 lb) / ha.
The line on which the required application rate is located
enables determining the index (1) and the distribution
shaft speed (2).
Example:
For an application rate of 190 kg (419 lb) / ha, adjust
index on 42 and use gearwheel enabling to obtain a
distribution shaft speed ratio of 13 rotations for 100 m
(328’).
