Optional equipment
Precision Seed Drills
MAXIMA 2
127

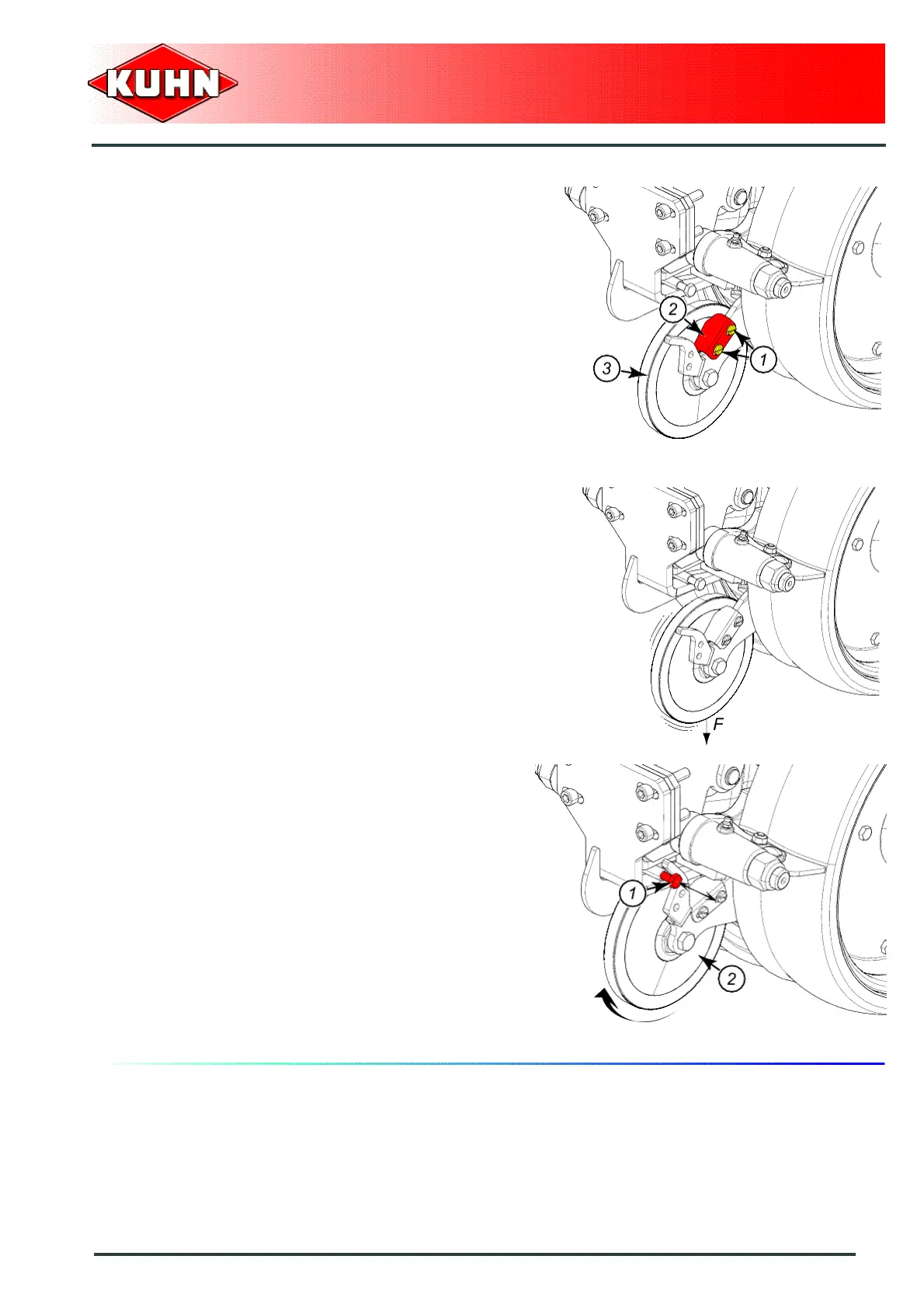

Deflector adjustment
The deflector prevents stones from getting jammed.
- Loosen screws (1).
- Position deflector (2) as close as possible to the
wheel, without touching it. Wheel (3) must be free to
rotate by hand. Rotate wheel by hand and check that
the wheel is free to rotate at least once.
- Torque bolts to (1).
Machine use
The wheel must be free to rotate and the return spring
must allow a downward vertical effort of 3.5 to 6 daN.
The wheel must instantaneously resume its lower
position and must not be blocked during its down travel.
In very wet, sticky or stony conditions, the wheel can be
folded upwards to prevent damage on the wheel and
ensure seeding precision.
- Push screw (1).
- Raise wheel (2).
- Pull screw (1).
